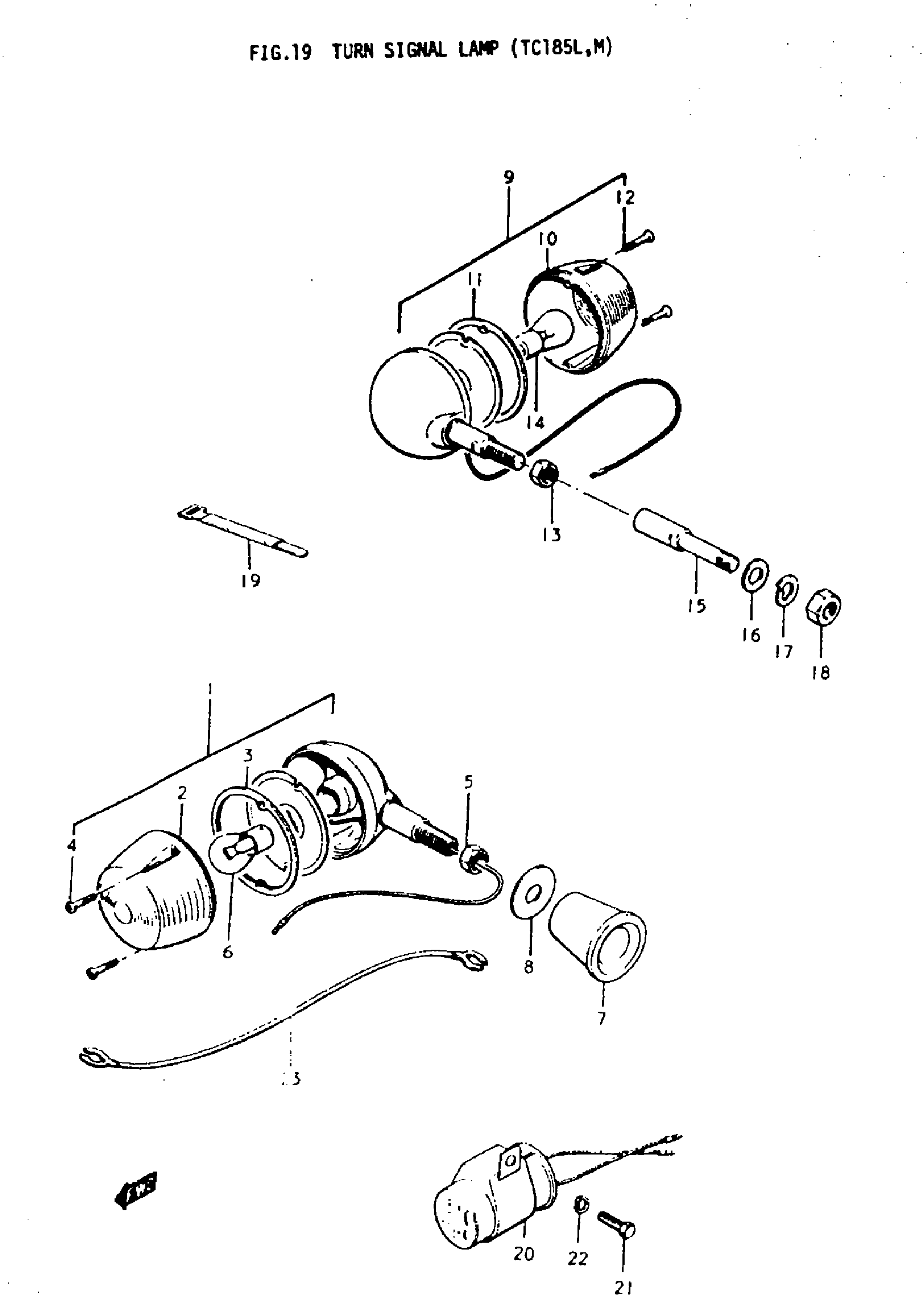

Suzuki TC185 (1977) TURN SIGNAL LAMP (TC185L Diagram

#

Description
Price

1

LAMP ASSY, TURN SIGNAL FRONT | Includes Item(s) 2 - 6 This part replaces 35601-18620.

35601-27630-999

Unavailable

2

LENS

35612-12611

$11.44

3

GASKET

35613-03610

Unavailable

4

SCREW This part replaces 02131-03167.

02132-03167

$1.30

5

NUT This part replaces 08312-32108.

08310-00107

$2.19

6

BULB | 12V, 32CP

09471-12006

$3.64

7

COVER, FRONT TURN SIGNAL BOSS

35698-28000

Unavailable

8

WASHER This part replaces 08322-21108.

08322-01107

$1.88

9

LAMP ASSY,RR TR | L This part replaces 35603-18620.

35603-27670-999

Unavailable

9

LAMP ASSY,RR TR | M; Includes Item(s) 10 - 14 This part replaces 35603-15611.

35603-27670-999

Unavailable

10

LENS | L; RED

35652-18700

Unavailable

10

LENS | M; UNBER

35612-12611

$11.44

11

GASKET

35613-03610

Unavailable

12

SCREW This part replaces 02131-03167.

02132-03167

$1.30

13

NUT This part replaces 08312-32108.

08310-00107

$2.19

14

BULB | 12V, 32CP

09471-12006

$3.64

15

STAY, REAR TURN SIGNAL LAMP

35659-30600

Unavailable

16

WASHER | L This part replaces 08322-11108.

08322-01107

$1.88

17

LOCK WASHER | L This part replaces 08321-21108.

08321-01107

$1.83

18

NUT | L This part replaces 08312-12108.

08310-00107

$2.19

19

CLAMP | L:110 This part replaces 09407-11302.

09407-18302

$2.27

20

TURN SIGNAL REL This part replaces 38610-32210.

38610-322V0

Unavailable

21

BOLT This part replaces 01112-06108.

01500-06107

$2.07

22

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

23

LEAD WIRE, ENGINE (-) | M This part replaces 36852-26600.

36851-02331

Unavailable
