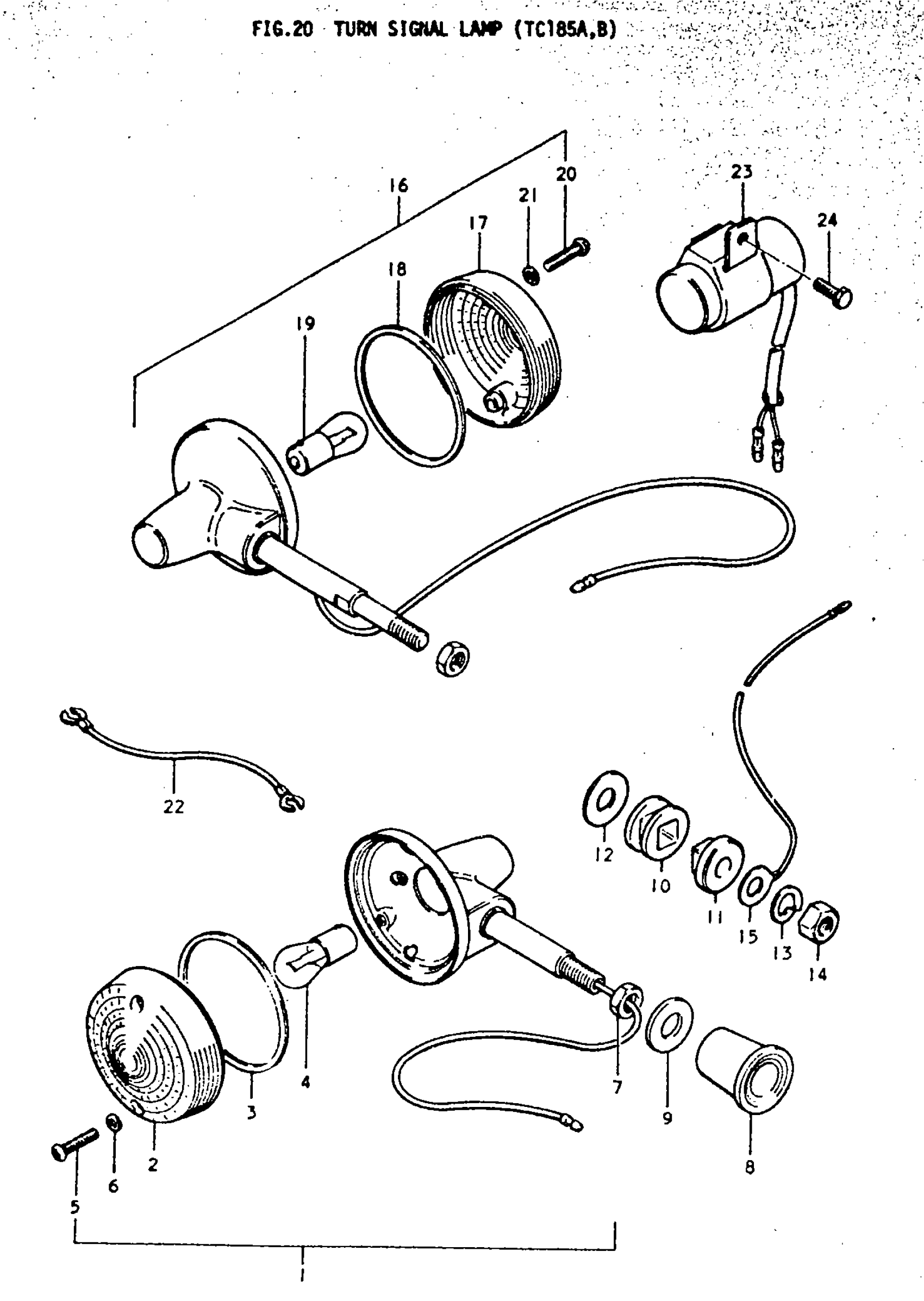

Suzuki TC185 (1977) TURN SIGNAL LAMP (TC185A Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A This part replaces 35601-29620.

35601-29620-999

Unavailable

1

LAMP ASSY,FR TR | B; Includes Item(s) 2 - 7 This part replaces 35601-44010.

35601-39370-999

Unavailable

2

LENS

35612-28620

$8.98

3

GASKET

35613-28620

$4.55

4

BULB | 12V, 23W

09471-12006

$3.98

5

SCREW

02111-04258

Unavailable

6

GASKET

35627-43010

$2.28

7

NUT | A This part replaces 08312-32108.

08310-00107

$2.19

8

COVER | A

35698-28000

Unavailable

9

WASHER | A This part replaces 08322-21108.

08322-01107

$2.15

10

RR TURN SIG CUS | B This part replaces 35690-32200.

35690-32201

$6.37

11

SPACER | B

35695-32200

Unavailable

12

WASHER, UPPER, OUTER | B This part replaces 09160-10006.

09160-10501

$2.33

13

LOCK WASHER | B This part replaces 08321-21108.

08321-01107

$1.84

14

NUT | B This part replaces 08312-12108.

08310-00107

$2.19

15

LEAD WIRE | B

36660-33000

$4.52

16

NO DESCRIPTION AVAILABLE | Includes Item(s) 17 - 21 This part replaces 35603-29620.

35603-28630-999

Unavailable

17

LENS

35612-28620

$8.98

18

GASKET

35613-28620

$4.55

19

BULB | 12V, 23W

09471-12006

$3.98

20

SCREW

02111-04258

Unavailable

21

GASKET

35627-43010

$2.28

22

LEAD WIRE, ENGINE (-) This part replaces 36852-26600.

36851-02331

Unavailable

23

TURN SIGNAL REL This part replaces 38610-32210.

38610-322V0

Unavailable

24

BOLT, CANISTER | A This part replaces 01112-06168.

01500-06167

$1.97

24

BOLT | B This part replaces 01112-06108.

01500-06107

$2.06
