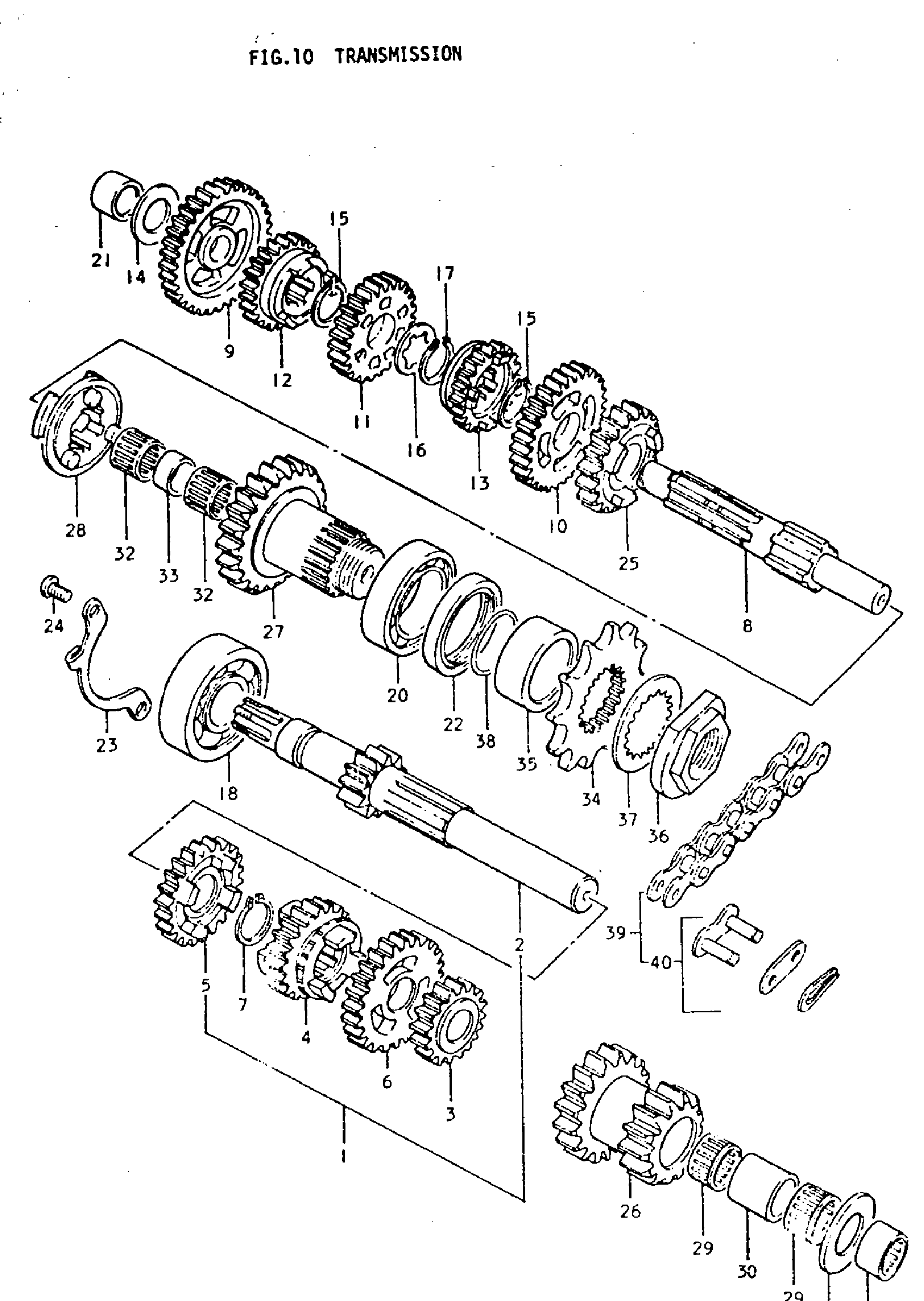

Suzuki TC185 (1977) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 7

24120-29100

Unavailable

2

COUNTERSHAFT | NT:12

24121-29100

Unavailable

3

GEAR, 2ND DRIVE | NT:16

24221-29100

Unavailable

4

GEAR, 3RD DRIVE | NT:20

24231-29100

Unavailable

5

GEAR, 4TH DRIVE | NT:23

24241-29100

Unavailable

6

GEAR, 5TH DRIVE | NT:25

24251-29100

Unavailable

7

CIRCLIP | L,M This part replaces 09380-22001.

08331-31229

$2.48

7

CIRCLIP | A,B This part replaces 08331-11229.

08331-31229

$2.48

8

DRIVESHAFT | A,B

24131-29100

Unavailable

9

GEAR, 1ST DRIVEN | NT:33

24310-28000

Unavailable

10

GEAR, 2ND DRIVEN | NT:29 This part replaces 24321-28000.

24321-28001

$85.15

11

NO DESCRIPTION AVAILABLE | NT:25 This part replaces 24331-28001.

24331-28002

Unavailable

12

NO DESCRIPTION AVAILABLE | NT:23 This part replaces 24341-28002.

24341-28003

Unavailable

13

NO DESCRIPTION AVAILABLE | NT:20 This part replaces 24351-28001.

24351-28002

Unavailable

14

WASHER | 15x30x1 This part replaces 09160-15016.

08211-15301

$2.45

15

CIRCLIP This part replaces 09380-20003.

09380-20007

$2.43

16

LOCK WASHER, LH | 16.2x28x1 This part replaces 09167-20007.

09167-20022

Unavailable

17

CIRCLIP

09380-20006

$2.90

18

BALL BEARING

08110-63040

$28.63

19

BEARING

09263-17009

Unavailable

20

BALL BEARING

08113-60060

$24.18

21

BUSH

09303-15004

$5.07

22

OIL SEAL

09283-38008

Unavailable

23

HOLDER, COUNTERSHAFT BEARING

24741-28001

Unavailable

24

SCREW This part replaces 02112-06108.

02112-06107

$1.49

25

GEAR, REDUCTION NO.1 | NT:19

24611-29100

Unavailable

26

GEAR, REDUCTION NO.2 | NT:14/17

24612-29100

Unavailable

27

GEAR, REDUCTION NO.3 | NT:22

24613-29100

Unavailable

28

WHEEL, REDUCTION GEAR

24614-29100

Unavailable

29

BEARING

09263-17001

$21.82

30

SPACER | 17.5x21x2.5

09180-17040

Unavailable

31

THRUST WASHER

08211-17341

$2.50

32

BEARING

09263-15010

Unavailable

33

SPACER | 15.5x19x11.5

09180-15032

Unavailable

34

SPROCKET, ENGINE | #520, NT:12

27511-29100

Unavailable

35

SPACER | 30x38x16.1

09180-30013

Unavailable

36

NUT

09159-24002

Unavailable

37

LOCK WASHER | 27x44x0.8

09167-30004

Unavailable

38

O RING

09280-30003

Unavailable

39

CHAIN,DRIVE ASS | #520x941; Includes Item(s) 40 This part replaces 27600-36600.

27600-46K00-116

$167.95

40

NO DESCRIPTION AVAILABLE This part replaces 27620-36110.

27620-28C01

Unavailable
