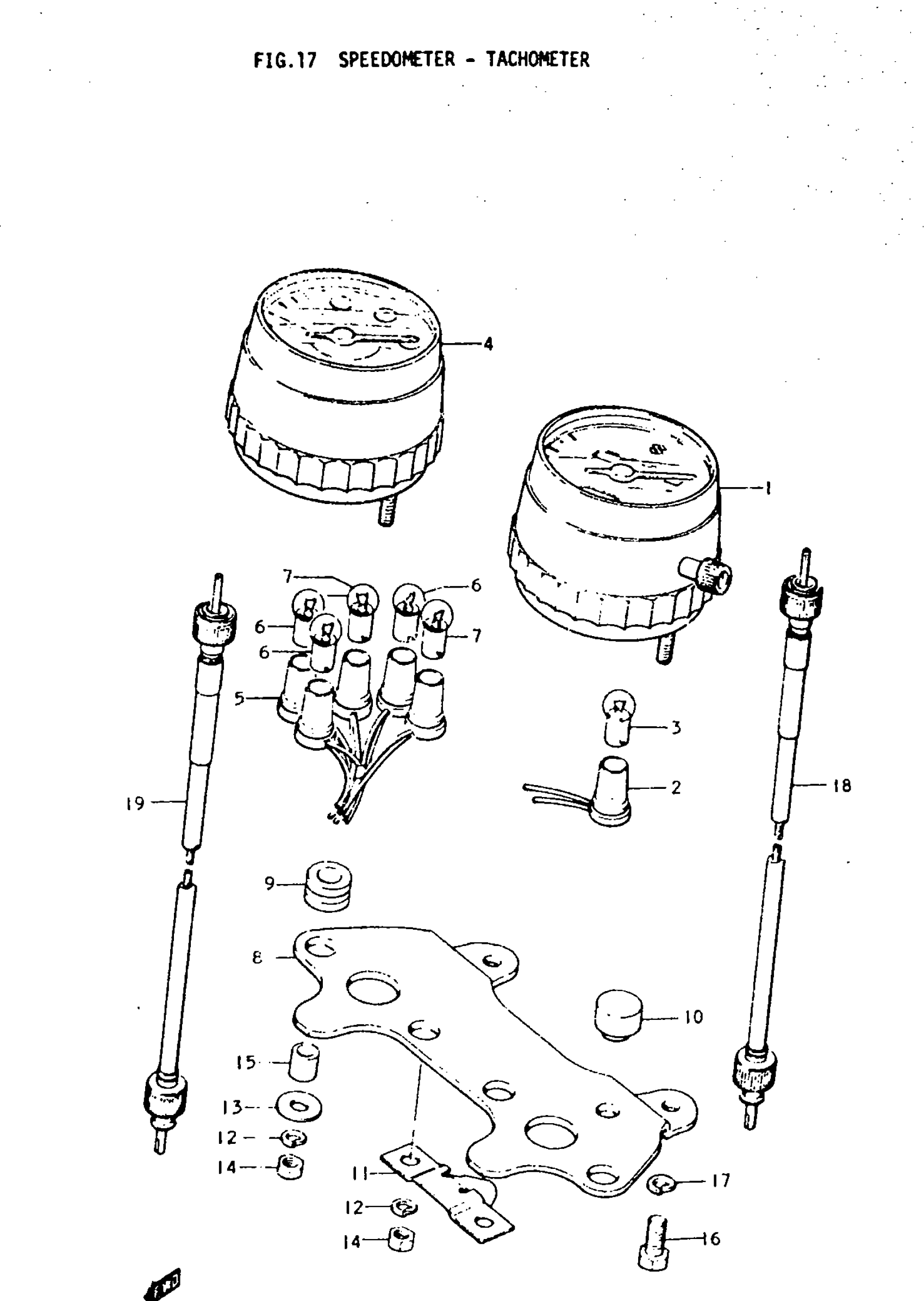

Suzuki TC185 (1977) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

0

SPEEDOMETER & TACHOMETER ASSY | L,M,A; FROM 34100-29120

34100-29121

Unavailable

0

SPEEDOMETER & TACHOMETER ASSY | B; Includes Item(s) 1 - 15

34100-29123

Unavailable

1

SPEEDOMETER ASSY | L,M,A

34101-36610

Unavailable

1

NO DESCRIPTION AVAILABLE | B This part replaces 34101-36612.

34101-29129

Unavailable

2

SOCKET

34173-36010

Unavailable

3

BULB | 12V, 3.4W

09471-12001

$1.65

4

TACHOMETER ASSY | L,M

34201-29120

Unavailable

4

TACHOMETER ASSY | A; FROM 34201-29120

34201-29121

Unavailable

4

TACHOMETER ASSY | B This part replaces 34201-29122.

34201-29121

Unavailable

5

SOCKET

34270-36601

Unavailable

6

BULB | 12V, 3.4W

09471-12001

$1.65

7

BULB | 12V, 1.7W

09471-12004

$2.69

8

BRACKET

34950-36010

Unavailable

9

CUSHION, A

34955-28010

$3.84

10

CUSHION, B

34956-28011

Unavailable

11

CLIP

34961-28012

Unavailable

12

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

13

WASHER (5.5X16X1.2) | 5.5X16X1.2 This part replaces 09160-05017.

09160-05043

$2.30

14

NUT This part replaces 08311-31058.

08310-00057

$1.84

15

SPACER

34972-28010

Unavailable

16

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

17

LOCK WASHER | L,M This part replaces 08321-21068.

08321-01067

$2.13

18

CABLE ASSY, SPEEDOMETER | L This part replaces 34910-28131.

34910-21230

Unavailable

18

CABLE ASSY, SPEEDOMETER | M,A,B This part replaces 34910-25230.

34910-21230

Unavailable

19

CABLE ASSY,TACH This part replaces 34940-29130.

34940-04721

Unavailable
