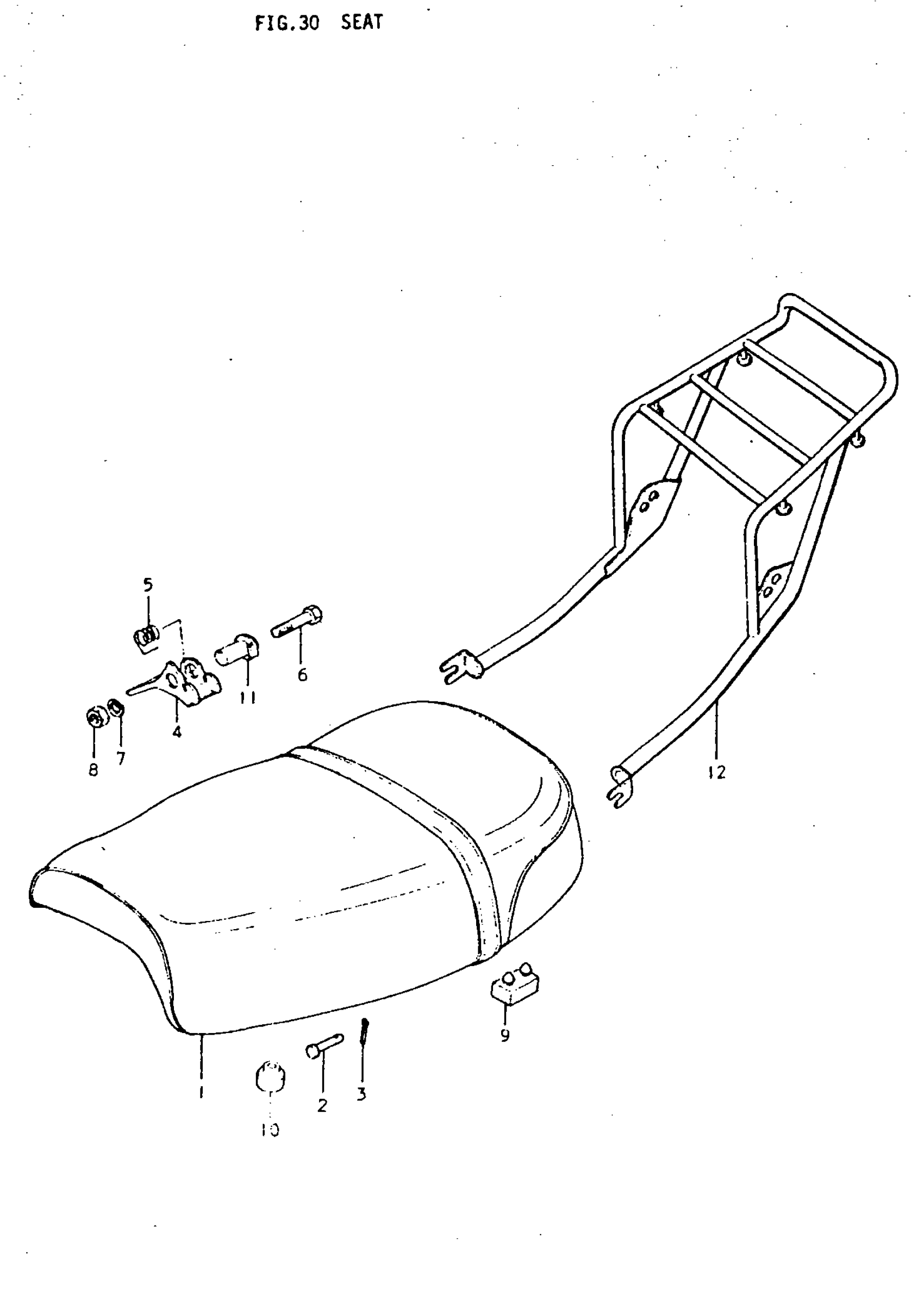

Suzuki TC185 (1977) SEAT Diagram

#

Description
Price

1

SEAT | L,M; FROM 45100-28400-403 This part replaces 45100-28401-403.

45100-28402-865

Unavailable

1

SEAT ASSY | A

45100-28402-403

Unavailable

1

SEAT ASSY | B; FROM 45100-28402-403

45100-28402-865

Unavailable

2

PIN

09200-06018

$2.06

3

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

4

CLAMP, SEAT

45211-26001

Unavailable

5

SPRING

09448-17007

Unavailable

6

BOLT | L,M This part replaces 01122-08458.

01500-08453

$2.50

6

BOLT | A,B This part replaces 01122-08408.

01500-0840A

$2.60

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

NUT This part replaces 08312-11088.

08310-00087

$2.13

9

CUSHION

09321-08006

$2.90

10

CUSHION

09321-10002

$2.22

11

BOSS, SEAT CLAMP

45210-26001

Unavailable

12

CARRIER | L,M,A; TO 46310-28401

46310-28400

Unavailable

12

CARRIER | B

46310-28401

Unavailable
