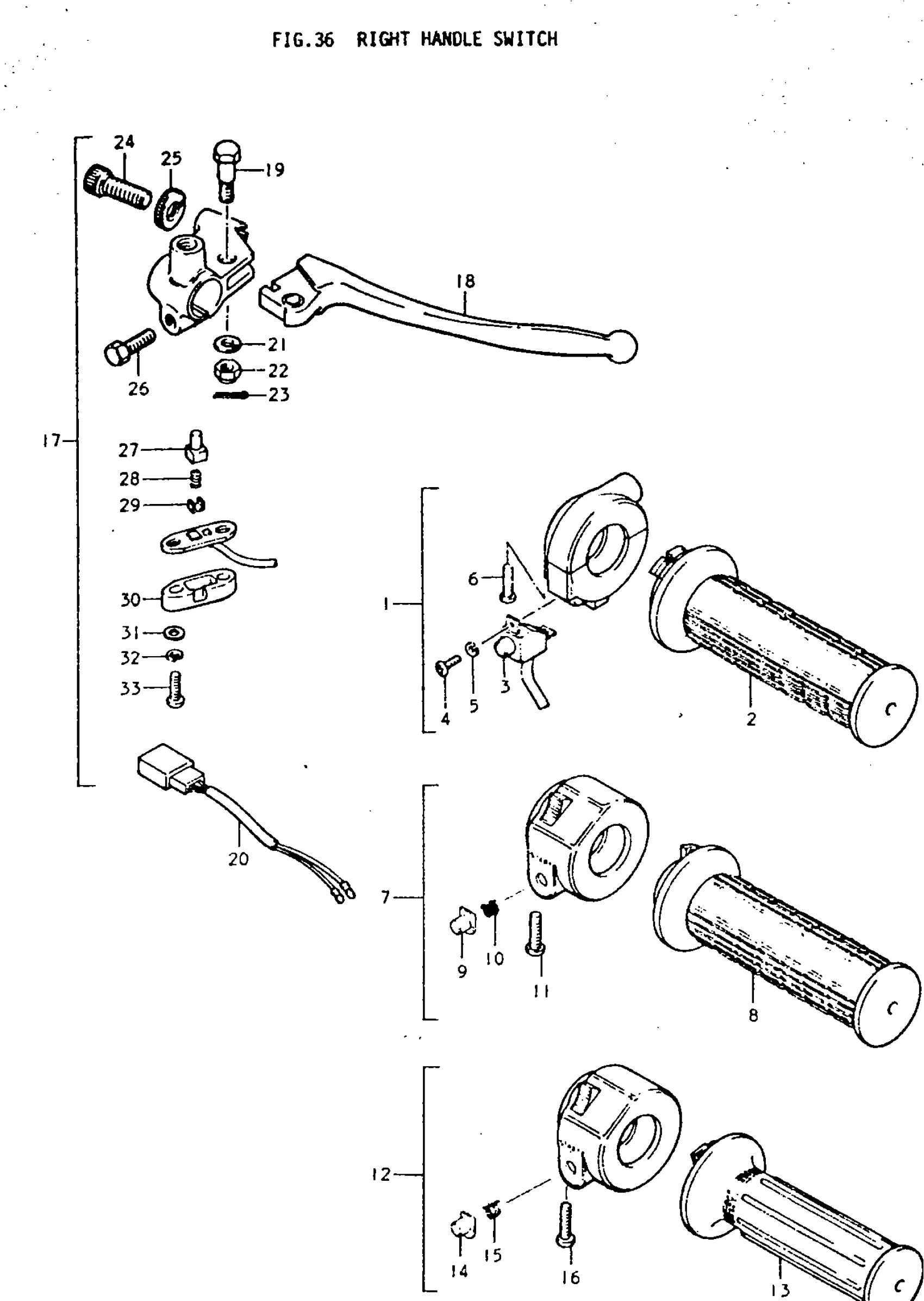

Suzuki TC185 (1977) RIGHT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP ASSY, THROTTLE | L; Includes Item(s) 2 - 6

57100-29110

Unavailable

2

GRIP, THROTTLE | L

57110-28010

$34.76

3

STARTING SWITCH SET | L

57100-28830

Unavailable

4

SCREW | L This part replaces 02111-03067.

02112-0306B

$1.59

5

WASHER,LOCK | L This part replaces 08321-21038.

09162-03001

$1.49

6

SCREW | L This part replaces 02111-05207.

02112-05207

$1.97

7

GRIP ASSY, THROTTLE | M; Includes Item(s) 8 - 11

57100-28610

Unavailable

8

GRIP, THROTTLE | M

57110-28010

$34.76

9

BUTTON, STARTER | M

57370-01311

Unavailable

10

SPRING | M

57382-01311

Unavailable

11

SCREW | M This part replaces 02111-05207.

02112-05207

$1.97

12

NO DESCRIPTION AVAILABLE | A,B; Includes Item(s) 13 - 16 This part replaces 57100-28620.

57100-28621

Unavailable

13

GRIP, THROTTLE | A,B

57110-28630

Unavailable

14

BUTTON, STARTER | A,B

57370-01311

Unavailable

15

SPRING | A,B

57382-01311

Unavailable

16

SCREW | A,B This part replaces 02111-05201.

02112-05207

$1.97

17

LEVER ASSY, BRAKE | L; TO 57300-30700 USED WITH 56741-31700 This part replaces 57300-30011.

57300-30501

Unavailable

17

LEVER ASSY, BRAKE | M,A,B; Includes Item(s) 18 - 33 This part replaces 57300-28012.

57300-28013

Unavailable

18

LEVER, BRAKE This part replaces 57420-33010.

57420-18602

Unavailable

19

BOLT This part replaces 57431-11010.

57431-11013

$6.31

20

LEAD, WIRE | L

57323-31700

Unavailable

21

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

22

NUT, PIVOT

57433-11010

$5.64

23

PIN This part replaces 04111-16158.

04111-1620A

$1.49

24

ADJUSTER, CABLE

57441-11010

$5.62

25

NUT, ADJUSTER

57442-11010

$2.79

26

BOLT This part replaces 01112-06208.

01500-06207

$2.28

27

HOLDER | M,A,B This part replaces 57461-18600.

57465-18601

$4.34

28

HOLDER | M,A,B This part replaces 57462-18600.

57465-18601

$4.34

29

HOLDER | M,A,B This part replaces 57463-18600.

57465-18601

$4.34

30

COVER | M,A,B

57481-33010

$5.84

31

WASHER | M,A,B This part replaces 08322-21038.

08322-01037

$1.93

32

WASHER,LOCK | M,A,B This part replaces 08321-21038.

09162-03001

$1.49

33

SCREW | M,A,B This part replaces 09125-03105.

09125-03105-XC0

$2.23
