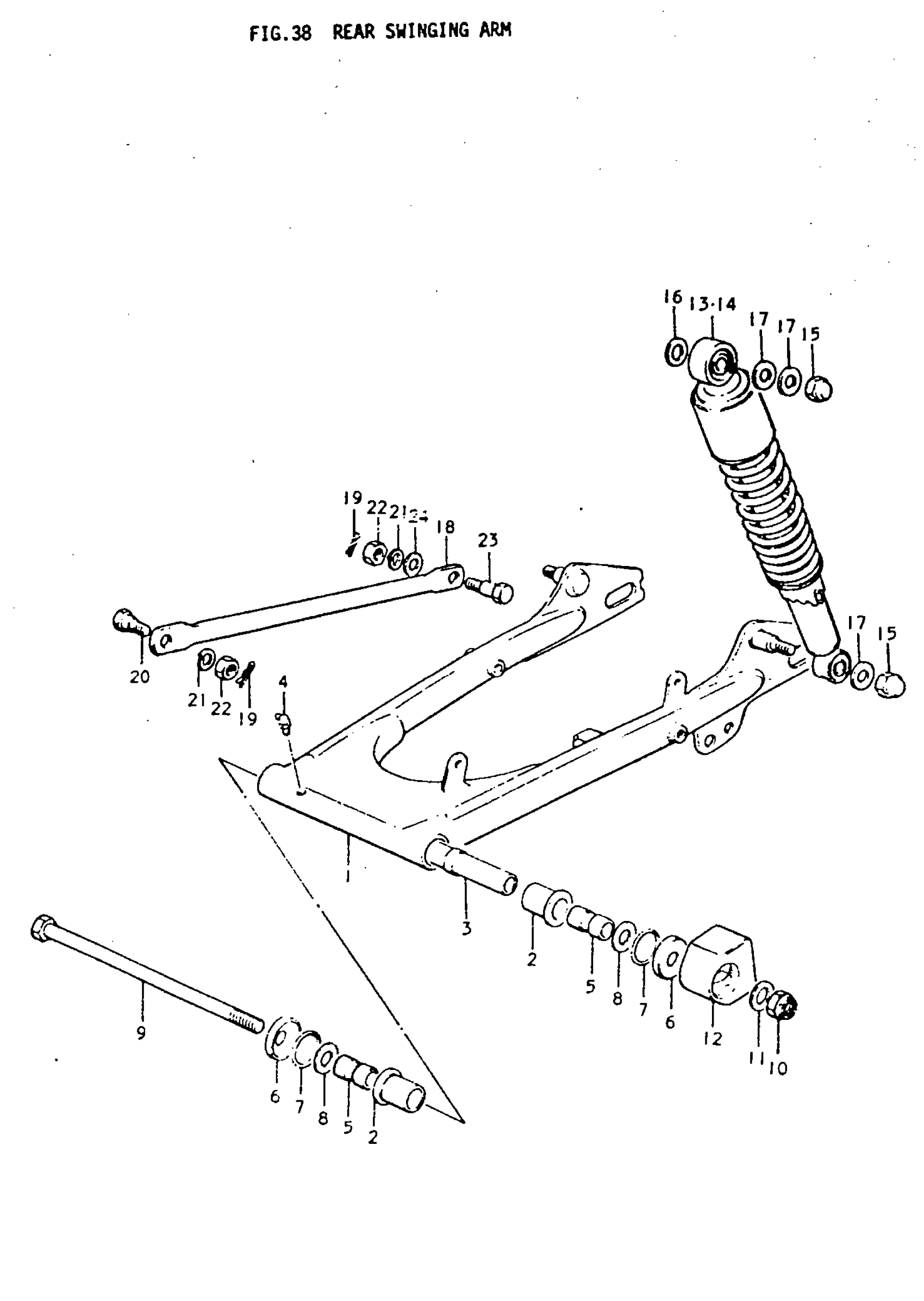

Suzuki TC185 (1977) REAR SWINGING ARM Diagram

#

Description
Price

1

REAR SWINGING ARM SET | L; TO 61100-28860-019

61100-28805-019

Unavailable

1

REAR SWINGING ARM SET | M,A,B; Includes Item(s) 2 - 4

61100-28860-019

Unavailable

2

BUSHING | L,M,A; TO 09307-18002 This part replaces 09307-18001.

09307-18002

$10.21

2

BUSHING | B

09307-18002

$10.21

3

SPACER

61280-28000

Unavailable

4

NIPPLE, GREASE | L,M,A This part replaces 08351-31008.

08351-3100A

$4.45

5

SPACER, PIVOT

61251-28000

$13.36

6

COVER, DUST SEAL

61262-09200

$3.59

7

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

$1.55

8

WASHER | 12.5x24x2.3

09160-12005

$2.38

9

SHAFT, PIVOT | L,M,A; FROM 61211-28600 This part replaces 61211-28001.

61211-28002

Unavailable

9

SHAFT, PIVOT | A,B; F.NO.22485~

61211-28002

Unavailable

10

NUT

09159-12102

$3.23

11

WASHER This part replaces 08322-11128.

08322-01127

$1.84

12

BUFFER,CHAIN TO | L,M; TO 61273-28001 This part replaces 61273-28000.

61273-28002

$11.02

12

BUFFER,CHAIN TO | A,B This part replaces 61273-28001.

61273-28002

$11.02

13

SHOCK ABSORBER ASSY, REAR | L This part replaces 62100-28601.

62100-28602

Unavailable

14

ABSORBER, REAR SHOCK | M,A,B

62100-28602

Unavailable

15

NUT This part replaces 08313-11107.

08313-10107

$2.50

16

WASHER This part replaces 08322-11128.

08322-01127

$1.84

17

WASHER, LOWER (10.5X24X2.3) | 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

$2.35

18

TORQUE LINK REA This part replaces 64311-28000.

64311-28000-019

$18.80

19

CLIP This part replaces 09385-10001.

09385-10005

$1.56

20

BOLT

09111-08013

$3.04

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

22

NUT

09140-08008

$1.49

23

BOLT

09111-08015

$3.16

24

WASHER | A, B This part replaces 08322-11088.

08322-01087

$2.13
