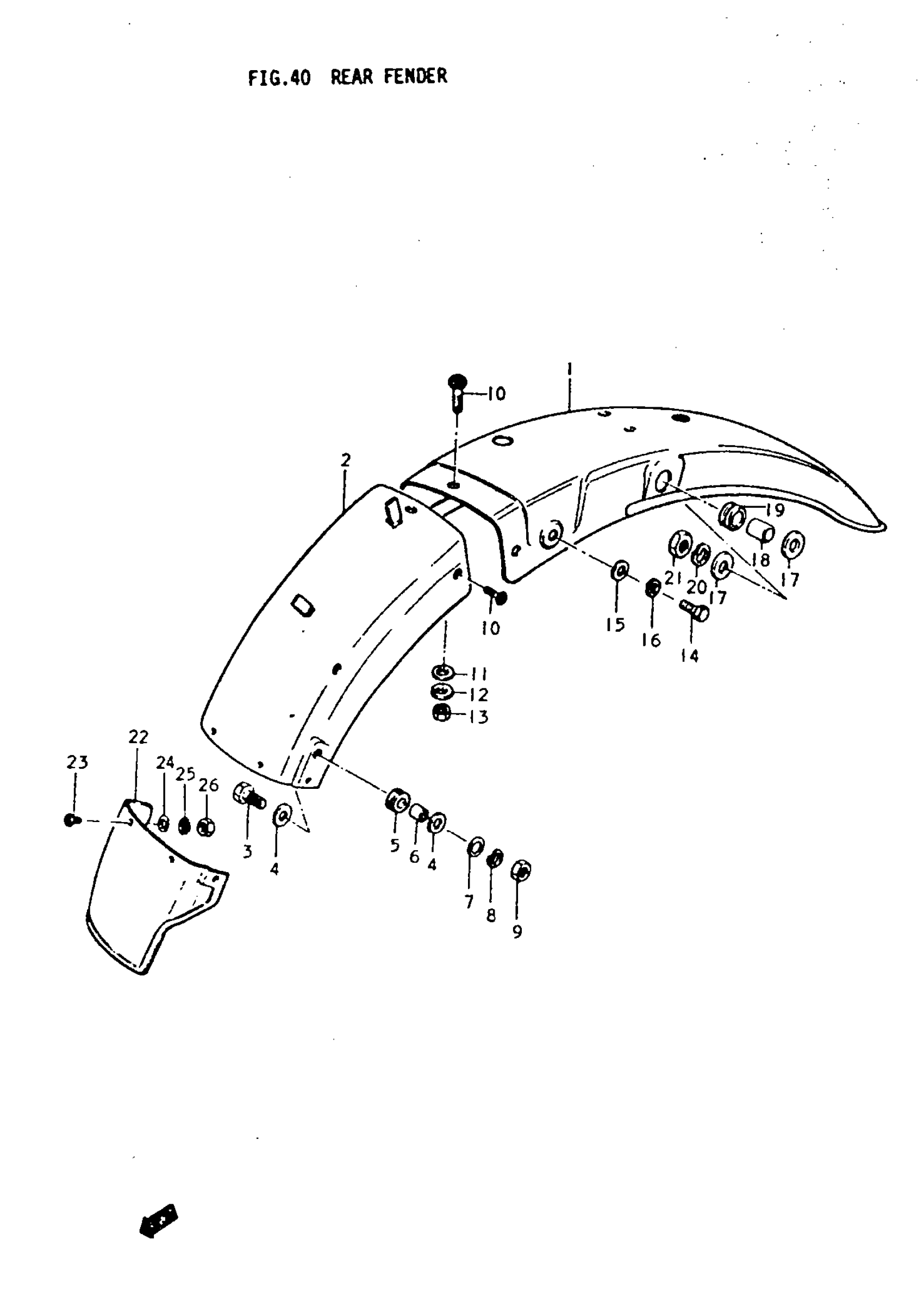

Suzuki TC185 (1977) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR | L,M; FROM 63110-28500

63110-28502

Unavailable

1

NO DESCRIPTION AVAILABLE | A,B; FROM 63110-28401-737 This part replaces 63110-28402-737.

63110-28402-13L

Unavailable

2

BODY, REAR FENDER FRONT | L; TO 63110-29601

63110-29600

Unavailable

2

BODY, REAR FENDER FRONT | M,A,B

63110-29601

Unavailable

3

BOLT This part replaces 01112-06208.

01500-06207

$2.28

4

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

5

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

6

SPACER | 6.1x9x7.5

09180-06038

$1.98

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

.NUT This part replaces 08311-11068.

08310-00067

$2.13

10

SCREW This part replaces 02141-05127.

02142-05127

$1.97

11

WASHER This part replaces 08322-21058.

08322-01057

$2.13

12

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

13

NUT This part replaces 08311-11058.

08310-00057

$1.84

14

BOLT This part replaces 01112-06128.

01500-06127

$1.97

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER | 10.3x25x1.5

09160-10041

Unavailable

18

SPACER | 10.1x13x7

09180-10026

Unavailable

19

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

20

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

21

NUT This part replaces 08312-32108.

08310-00107

$2.19

22

MUD GUARD

63411-29000

Unavailable

23

SCREW

02141-05108

Unavailable

24

WASHER | 5.2x16x1

09160-05013

$1.49

25

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

26

NUT This part replaces 08311-11058.

08310-00057

$1.84
