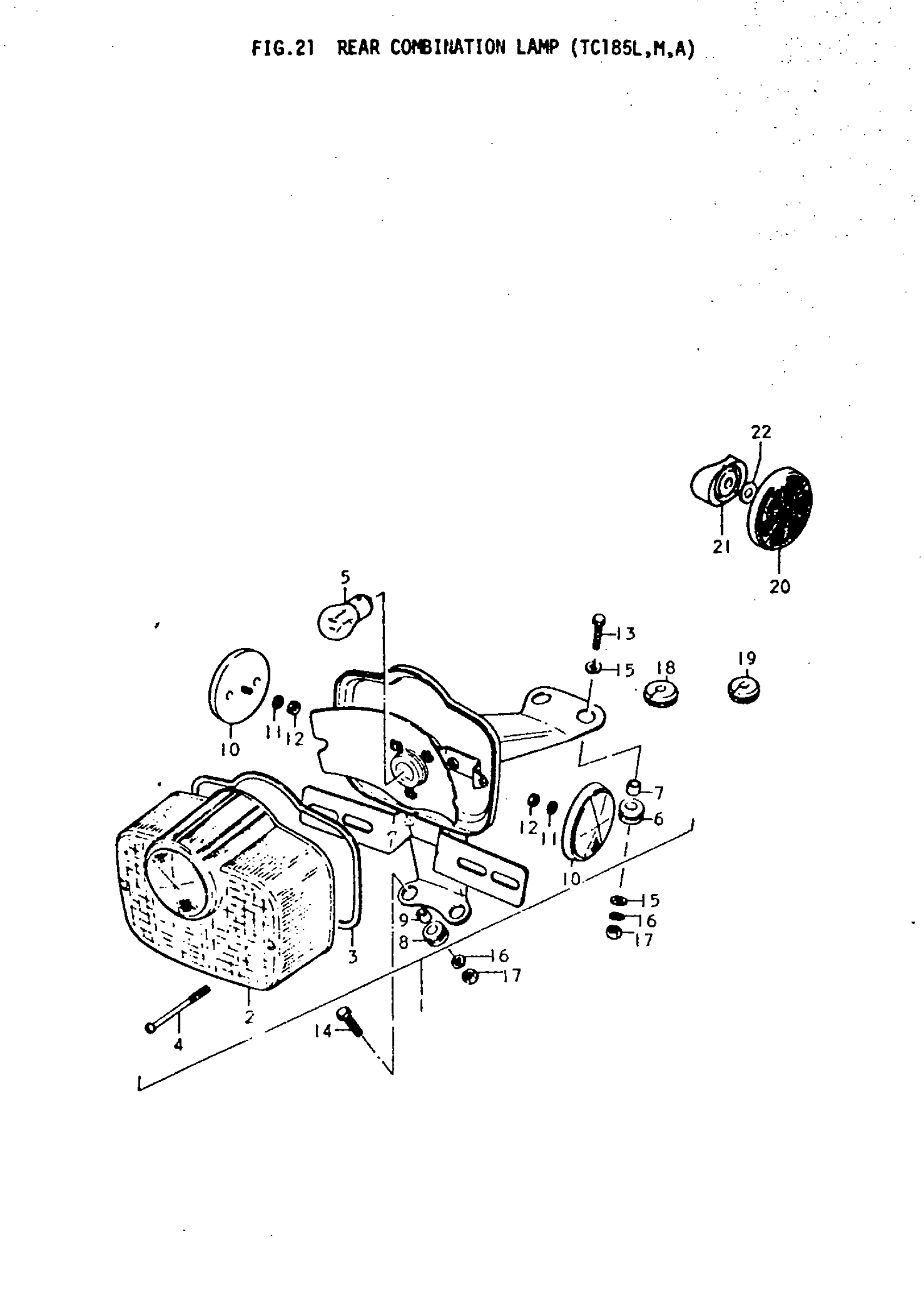

Suzuki TC185 (1977) REAR COMBINATION LAMP (TC185L Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FROM 35700-29810; Includes Item(s) 2 - 9 This part replaces 35710-29110.

35710-25681-999

Unavailable

2

LENS RR COMB LA This part replaces 35712-27630.

35712-23011

$59.80

3

GASKET

35713-27630

$6.30

4

SCREW 4X55 This part replaces 02111-04558.

02112-04558

$1.65

5

BULB | 12V, 23/8W

09471-12035

$4.49

6

CUSHION, UPPER

35765-22210

$3.84

7

SPACER This part replaces 35766-22210.

35766-37120

Unavailable

8

CUSHION, LOWER

35765-15010

Unavailable

9

SPACER This part replaces 35766-15010.

35766-37110

$5.28

10

REFLEX REFLECTOR, REAR

35970-31610

Unavailable

11

LOCK WASHER | L,M This part replaces 08321-21058.

08321-0105A

$1.84

12

NUT This part replaces 08311-11058.

08310-00057

$1.84

13

BOLT This part replaces 01112-06258.

01500-06257

$1.97

14

BOLT This part replaces 01112-06208.

01500-06207

$2.28

15

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

.NUT This part replaces 08311-11068.

08310-00067

$2.13

18

GROMMET | L,M

09308-07005

Unavailable

19

GROMMET

09308-07002

$2.12

20

REFLEX REFLECTOR FRONT This part replaces 35950-31010.

35950-49080

$17.24

21

SPACER | L,M

35995-29000

Unavailable

22

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91
