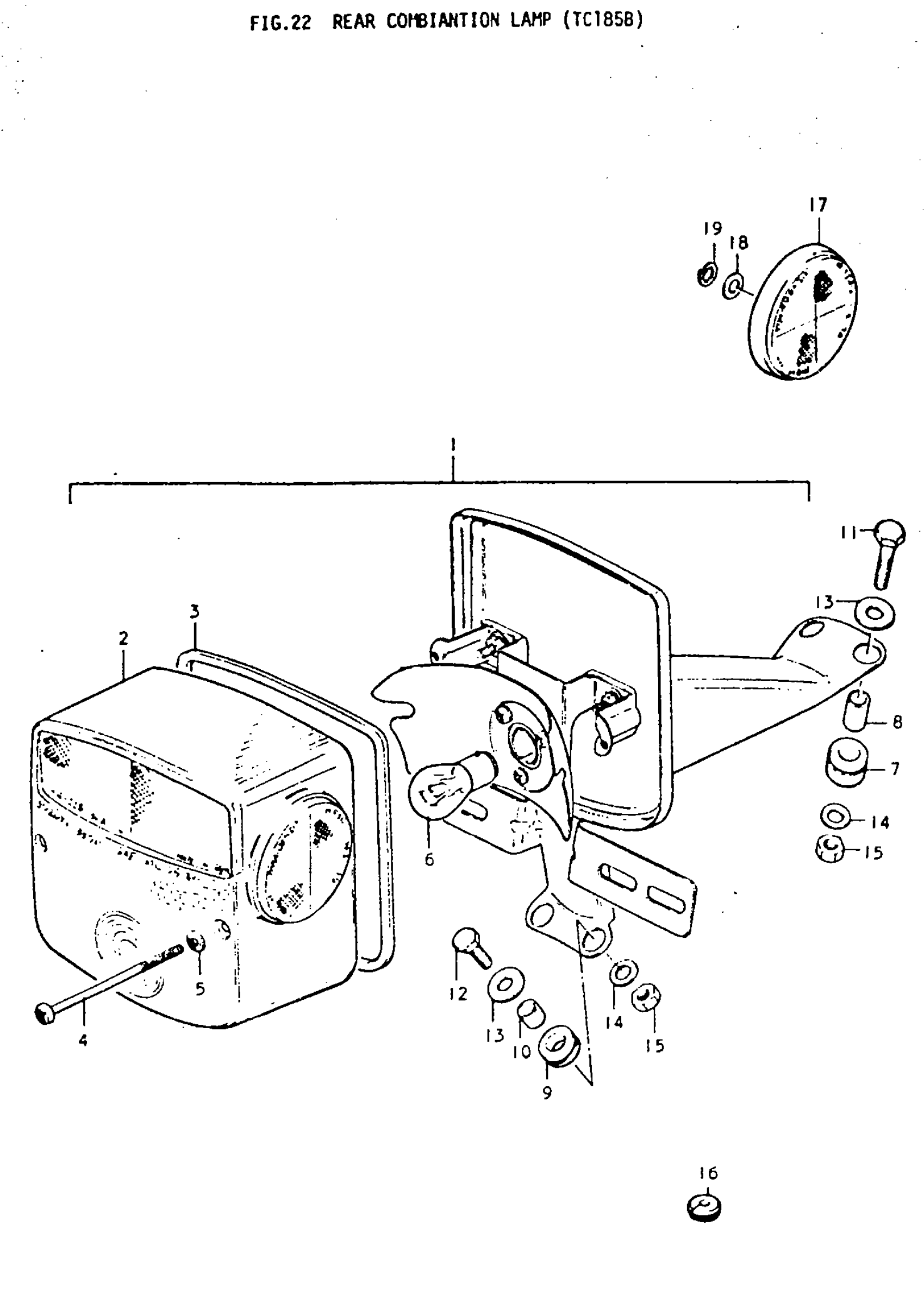

Suzuki TC185 (1977) REAR COMBINATION LAMP (TC1858) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 10 This part replaces 35710-36310.

35710-25651-999

Unavailable

2

LENS This part replaces 35712-30510.

35712-30512

Unavailable

3

GASKET

35713-30510

Unavailable

4

SCREW 4X55 This part replaces 02111-04558.

02112-04558

$1.65

5

GASKET

35627-43010

$2.28

6

BULB | 12V, 23/6W

09471-12035

$4.49

7

CUSHION, UPPER

35765-22210

$3.84

8

SPACER This part replaces 35766-22210.

35766-37120

Unavailable

9

CUSHION, LOWER

35765-15010

Unavailable

10

SPACER This part replaces 35766-15010.

35766-37110

$5.28

11

BOLT This part replaces 01112-06208.

01500-06207

$2.28

12

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

13

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

.NUT This part replaces 08311-11068.

08310-00067

$2.13

16

GROMMET

09308-07002

$2.12

17

REFLEX REFLECTOR, FRONT

35950-45010

$17.09

18

WASHER This part replaces 08322-21058.

08322-01057

$2.13

19

LOCK WASHER | 6.5x20x1.2 This part replaces 08321-21058.

08321-0105A

$1.84
