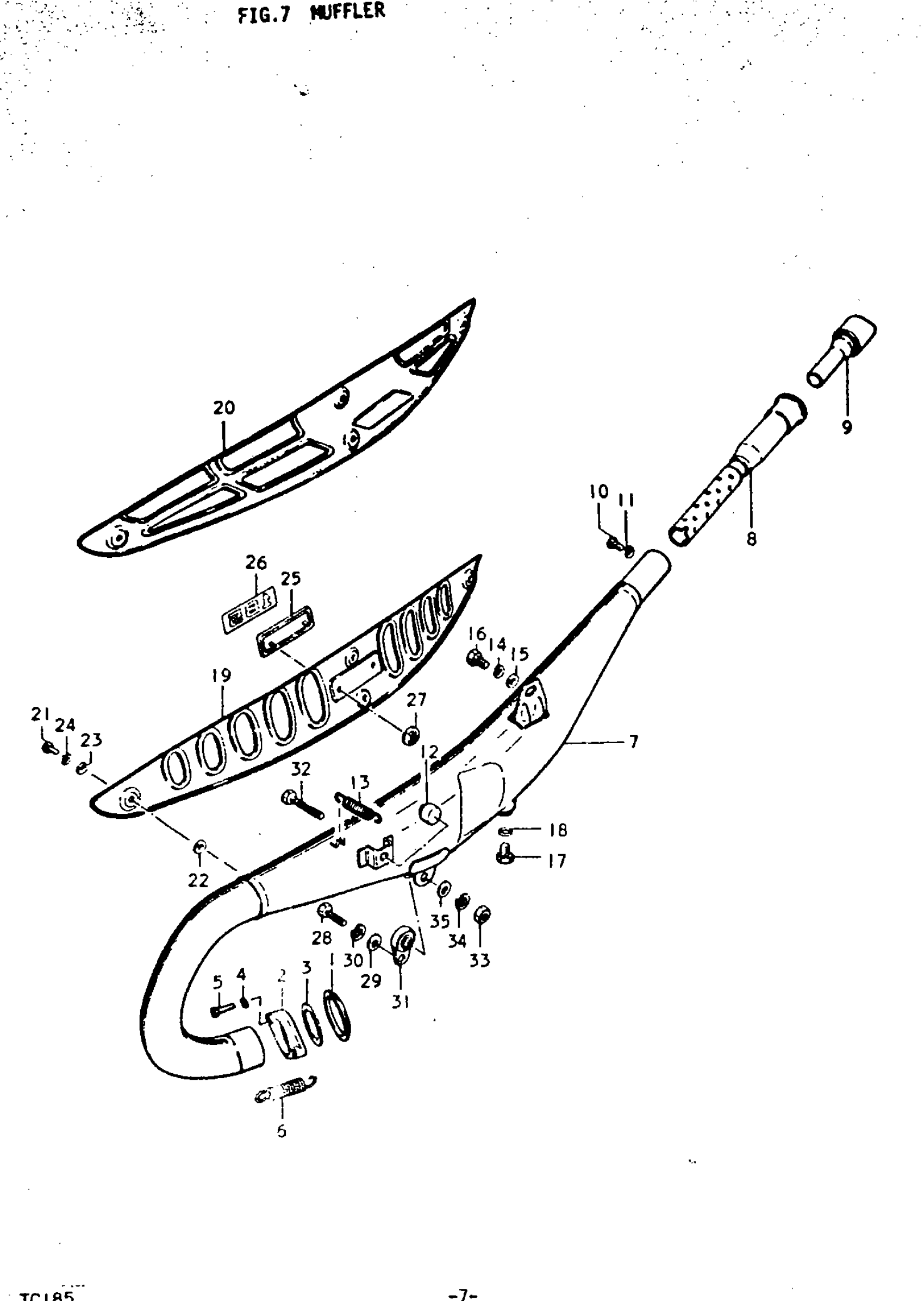

Suzuki TC185 (1977) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14181-28080

$10.11

2

CLAMP

14182-28000

$16.49

3

CUSHION,EXH PIP This part replaces 14184-28010.

14184-28011

$4.62

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

BOLT This part replaces 01112-06258.

01500-06257

$1.97

6

SPRING, EXHAUST PIPE

09443-11002

$3.10

7

NO DESCRIPTION AVAILABLE | Includes Item(s) 8 - 11 This part replaces 14301-29630.

14301-29650-H01

Unavailable

8

BODY, ARRESTER

14810-29603

Unavailable

9

TUBE, CLEAN OUT

14850-27600

Unavailable

10

SCREW

09128-06013

$1.49

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

CUSHION

09321-10002

$2.22

13

SPRING

09443-11002

$3.10

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

15

WASHER (8.5X18X2.0) | 8.5x18x2 This part replaces 09160-08013.

09160-08120

$2.19

16

PLUG, DRAIN This part replaces 01122-08168.

01500-0816B

$2.50

17

BOLT(10X9) | 10x4 This part replaces 09100-10004.

09128-10002

$1.70

18

GASKET, DRAIN PLUG | 10x14.2x2

09168-10002

$2.13

19

COVER, MUFFLER | L,M; TO 14781-29610 This part replaces 14781-29600.

14781-29610

Unavailable

20

COVER, MUFFLER | A,B

14781-29610

Unavailable

21

SCREW This part replaces 02112-06108.

02112-06107

$1.49

22

GASKET,MUFFLER | 6.2x12x1.5 This part replaces 09168-06005.

09168-06105

$2.12

23

.WASHER | L,M This part replaces 08322-11068.

08322-0106B

$2.26

24

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

25

EMBLEM, MUFFLER COVER | L

14799-29600

Unavailable

26

EMBLEM, MUFFLER COVER | M,A,B

14799-29601

Unavailable

27

NUT | L This part replaces 09148-03004.

09148-03011

$1.96

28

BOLT, REAR | L,M,A This part replaces 01122-08208.

01500-08207

$2.53

28

PLUG, DRAIN | B This part replaces 01122-08168.

01500-0816B

$2.50

29

WASHER This part replaces 08322-21088.

08322-01087

$2.13

30

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

31

DAMPER, REAR This part replaces 14770-16440.

14700-40810

Unavailable

32

BOLT This part replaces 01122-08358.

01500-0835B

$3.04

33

NUT This part replaces 08312-11088.

08310-00087

$2.13

34

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

35

WASHER This part replaces 08322-11088.

08322-01087

$2.13
