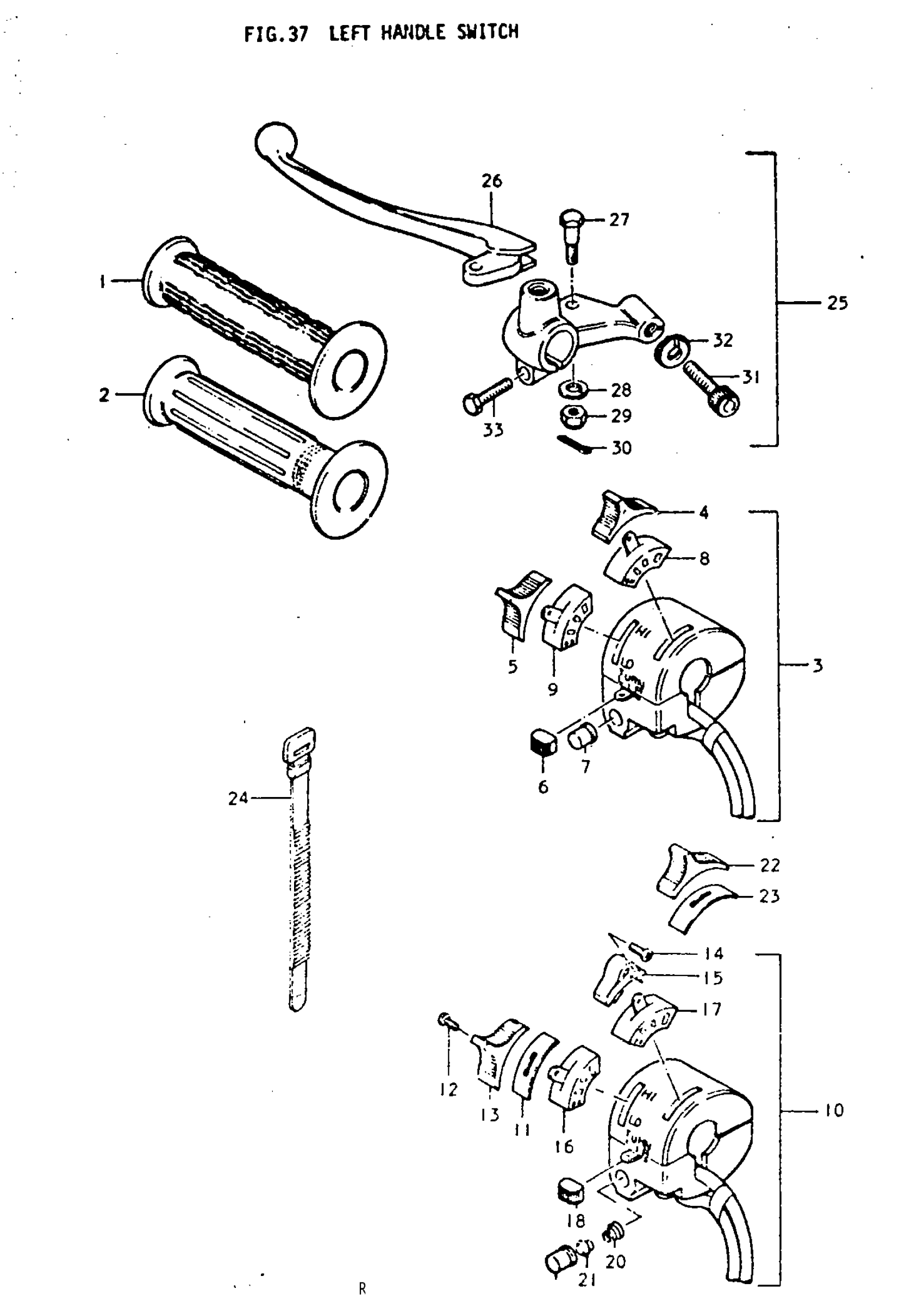

Suzuki TC185 (1977) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, LH | L,M

57211-15110

Unavailable

2

GRIP, LH | A,B

57211-28600

$16.32

3

SWITCH ASSY, HANDLE LH | L; TO 57700-29151

57700-29150

Unavailable

3

SWITCH ASSY, HANDLE LH | M; Includes Item(s) 4 - 9

57700-29151

Unavailable

4

KNOB, LIGHTING SWITCH | L,M; FROM 57712-28050

57712-28051

Unavailable

5

KNOB, DIMMER SWITCH | L,M

57713-28050

Unavailable

6

KNOB, TURN SIGNAL SWITCH | L,M

57742-28050

Unavailable

7

BUTTON, HORN | L,M

57751-28050

Unavailable

8

BLOCK, LIGHTING SWITCH SILDIN | L,ML,M

57730-29150

Unavailable

9

BLOCK, DIMMER SWITCH SLIDING | L; TO 57530-28051

57530-28050

Unavailable

9

BLOCK, DIMMER SWITCH SLIDING | M

57530-28051

Unavailable

10

SWITCH ASSY, HANDLE LH | A,B; Includes Item(s) 11 - 21

37400-29610

Unavailable

11

PLATE, DIMMER SWITCH | A,B This part replaces 57719-28050.

37422-28450

Unavailable

12

SCREW | A,B This part replaces 03221-03088.

03221-0308B

$2.10

13

KNOB, DIMMER | A,B

57713-28050

Unavailable

14

SCREW, LIGHTING | A,B

03231-03108

Unavailable

15

KNOB, STOP | A,B

37414-28660

Unavailable

16

BLOCK, DIMMER | A,B

57530-28051

Unavailable

17

BLOCK, LIGHTING | A,B

57730-29151

Unavailable

18

KNOB, TURN SIGNAL | A,B

57742-28050

Unavailable

19

BUTTON, HORN | A,B

57751-28050

Unavailable

20

SPRING | A,B

57761-28050

Unavailable

21

PLATE | A,B

37522-28050

Unavailable

22

KNOB, LIGHTING | A,B; OPT

57712-28052

Unavailable

23

NO DESCRIPTION AVAILABLE | A,B; OPT This part replaces 57714-28051.

37412-28450

Unavailable

24

BAND | M,A,B

09407-12402

$3.04

25

LEVER ASSY, CLUTCH | L; TO 57500-18012 USED WITH 56741-31700

57500-18610

Unavailable

25

LEVER ASSY, CLUTCH | M,A,B; Includes Item(s) 26 - 33 This part replaces 57500-26012.

57500-30501

Unavailable

26

LEVER, CLUTCH This part replaces 57620-31010.

57620-45010

Unavailable

27

BOLT This part replaces 57431-11010.

57431-11013

$6.31

28

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

29

NUT, PIVOT

57433-11010

$5.64

30

PIN This part replaces 04111-16158.

04111-1620A

$1.49

31

ADJUSTER, CABLE

57441-11010

$5.62

32

NUT, CABLE ADJUSTER

57442-11010

$2.79

33

BOLT This part replaces 01112-06208.

01500-06207

$2.28
