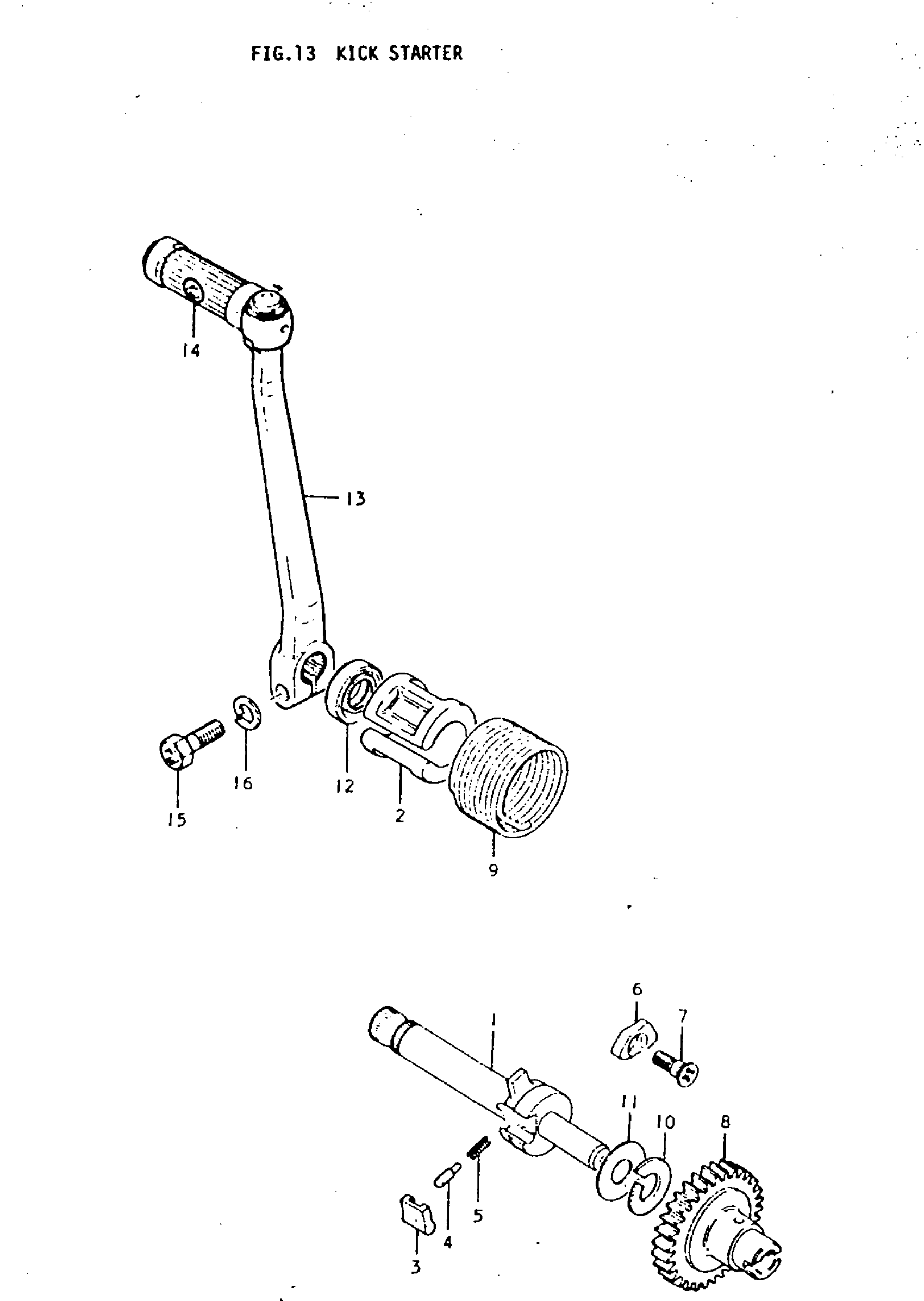

Suzuki TC185 (1977) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26211-29100

Unavailable

2

GUIDE, SPRING

26221-23030

$10.07

3

PAWL, KICK STARTER

26231-20000

$7.74

4

PIN

09209-05011

$2.20

5

SPRING

09440-04010

$1.54

6

LIFTER, PAWL

26232-01000

$6.38

7

SCREW

09139-06002

$2.38

8

GEAR, KICK STARTER DRIVE | NT:34

26241-29100

Unavailable

9

SPRING

09448-37011

Unavailable

10

WASHER

09162-12003

Unavailable

11

WASHER

09181-12005

Unavailable

12

SEAL,OIL(16X30X This part replaces 09285-16002.

09285-16005

$2.75

13

LEVER ASSY,KICK | L,M,A; FROM 26300-29002 This part replaces 26300-12002.

26300-29004

$61.90

13

LEVER ASSY, KICK STARTER | B; Includes Item(s) 14

26300-29100

Unavailable

14

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$3.25

15

BOLT This part replaces 01122-08258.

01500-08257

$2.50

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13
