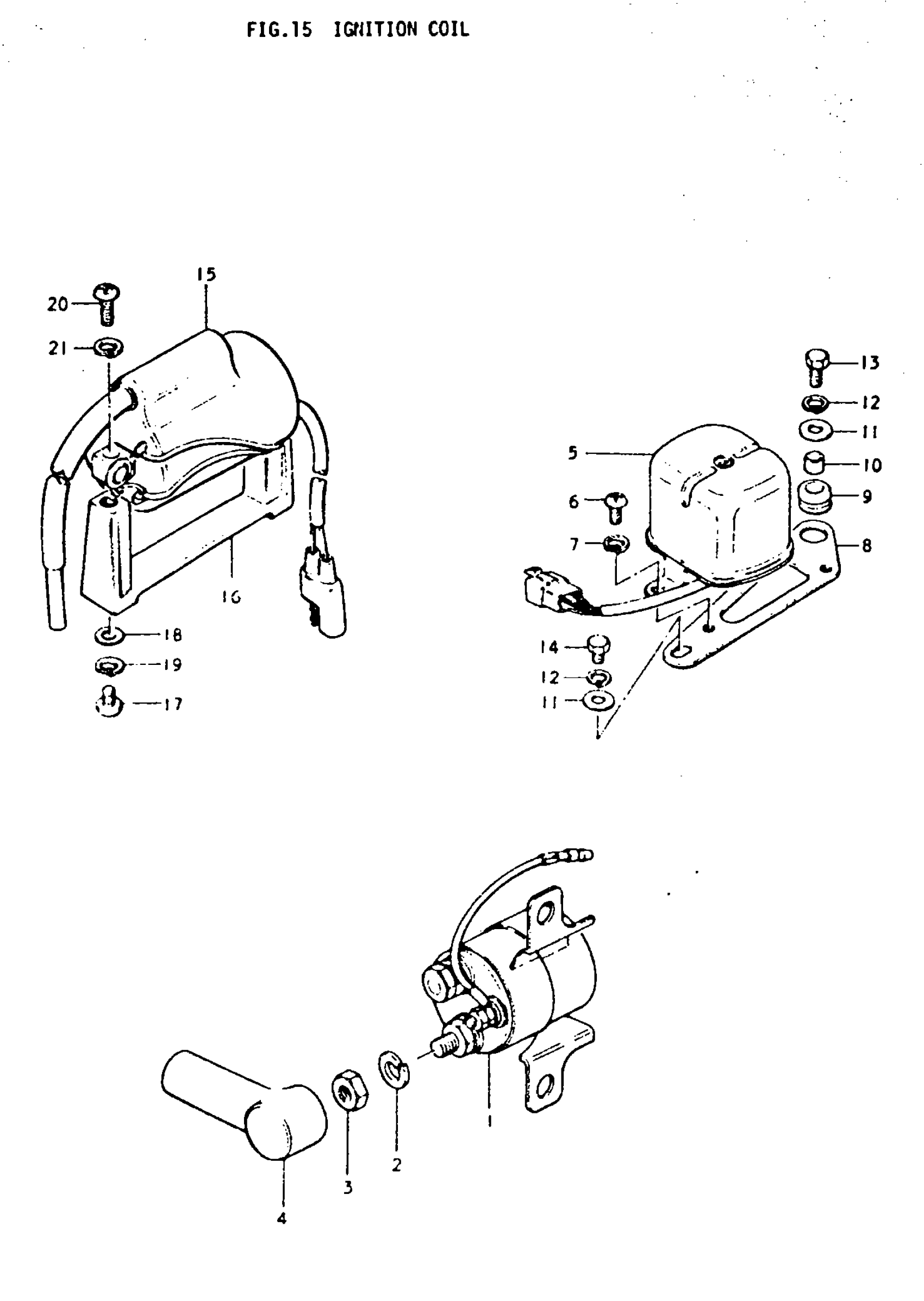

Suzuki TC185 (1977) IGNITION COIL Diagram

#

Description
Price

1

RELAY ASSY,STAR This part replaces 31800-37020.

31800-37021

$71.42

2

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

3

.NUT This part replaces 08311-31068.

08310-00067

$2.13

4

CAP, STARTER MOTOR | L This part replaces 31861-35100.

31861-48B10

$6.55

4

CAP, RELAY TERMINAL | M,A,B

31861-36101

Unavailable

5

REGULATOR ASSY

32500-36110

Unavailable

6

SCREW This part replaces 02112-06168.

02112-06167

$1.49

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

BRACKET

32690-29100

Unavailable

9

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

10

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48

11

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

BOLT This part replaces 01112-06208.

01500-06207

$2.28

14

BOLT This part replaces 01131-06128.

01500-06127

$1.97

15

COIL ASSY, IGNI This part replaces 33410-29010.

33410-22113

Unavailable

16

HOLDER

33416-08001

Unavailable

17

SCREW This part replaces 02111-05127.

02112-05127

$1.97

18

WASHER | L This part replaces 08322-21058.

08322-01057

$2.13

19

LOCK WASHER | L This part replaces 08321-21058.

08321-0105A

$1.84

20

SCREW This part replaces 02111-05207.

02112-05207

$1.97

21

LOCK WASHER | L This part replaces 08321-21058.

08321-0105A

$1.84
