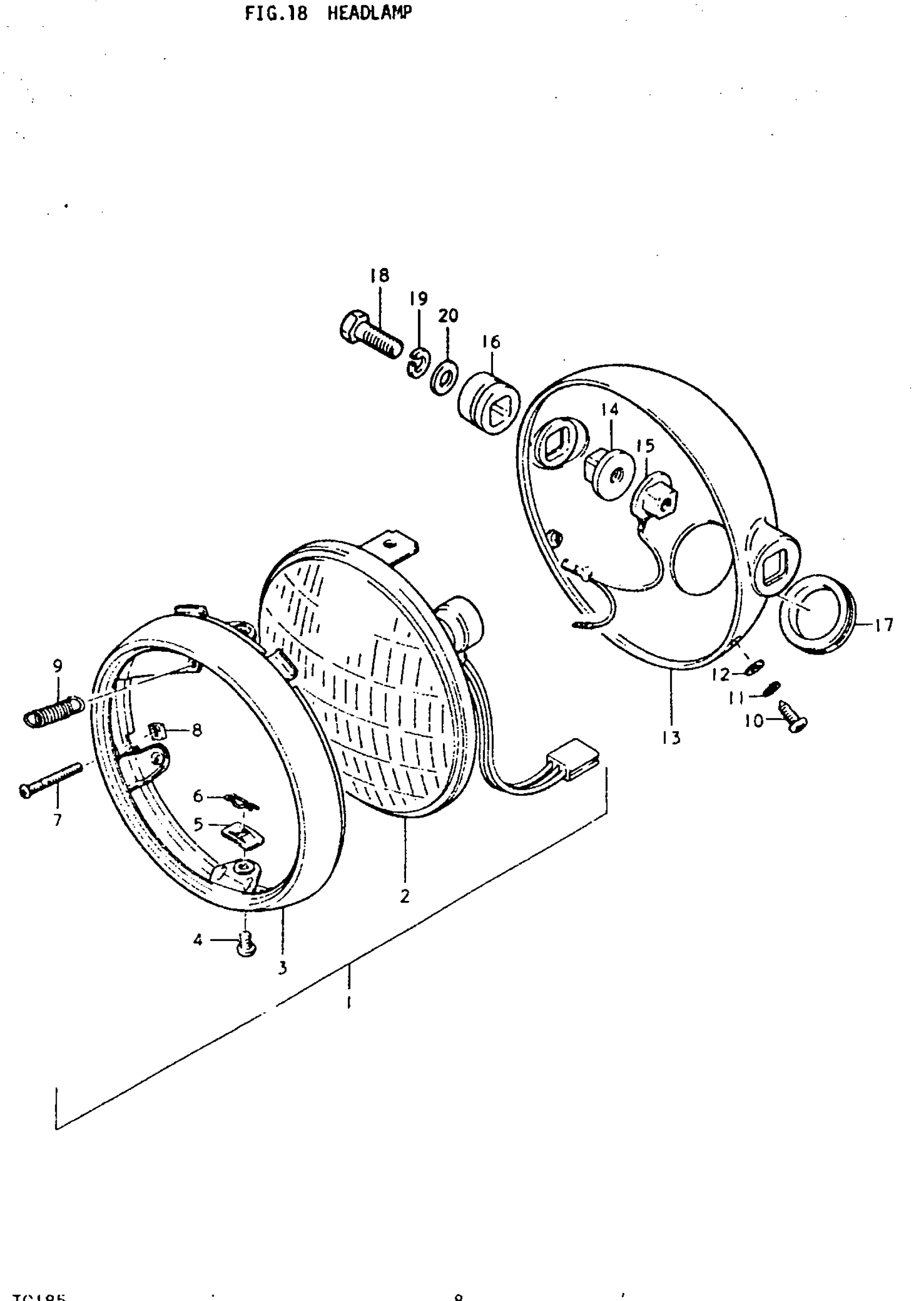

Suzuki TC185 (1977) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | L,M

35100-36610

Unavailable

1

HEADLAMP ASSY | A,B; Includes Item(s) 2 - 9

35100-36630

Unavailable

2

UNIT | L,M; 12V, 35/25W This part replaces 35121-36610.

35121-36630

Unavailable

2

UNIT | A,B; 12V, 40/30W

35121-36630

Unavailable

3

RIM

35111-28610

Unavailable

4

SCREW | L,M

35136-19610

Unavailable

4

SCREW | A,B This part replaces 02111-05087.

02112-05087

$1.49

5

NUT This part replaces 35135-12610.

35155-48510

$2.28

6

SPRING | L,M

35137-27620

Unavailable

7

SCREW This part replaces 35151-27620.

35151-06020

Unavailable

8

NUT

35155-01321

Unavailable

9

SPRING | L,M

35154-05610

Unavailable

9

SPRING | A,B

35154-12610

Unavailable

10

SCREW | L,M,A This part replaces 02211-04128.

02112-0412A

$1.49

10

SCREW | B This part replaces 02111-04127.

02112-0412A

$1.49

11

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

12

WASHER This part replaces 08322-21048.

08322-01047

$1.86

13

HOUSING, HEADLAMP | L

51810-26600

Unavailable

13

NO DESCRIPTION AVAILABLE | M This part replaces 51810-26000-126.

51810-26000-13L

Unavailable

13

NO DESCRIPTION AVAILABLE | A,B This part replaces 51810-26000-291.

51810-26000-13L

Unavailable

14

SPACER | L,M,AB

51821-29002

Unavailable

15

SPACER, LH | B

51822-29001

Unavailable

16

CUSHION

51827-29001

Unavailable

17

GROMMET | FROM 51845-31030

51845-31031

$4.52

18

BOLT This part replaces 01221-08257.

01204-08257

$1.96

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

WASHER This part replaces 08322-11088.

08322-01087

$2.13
