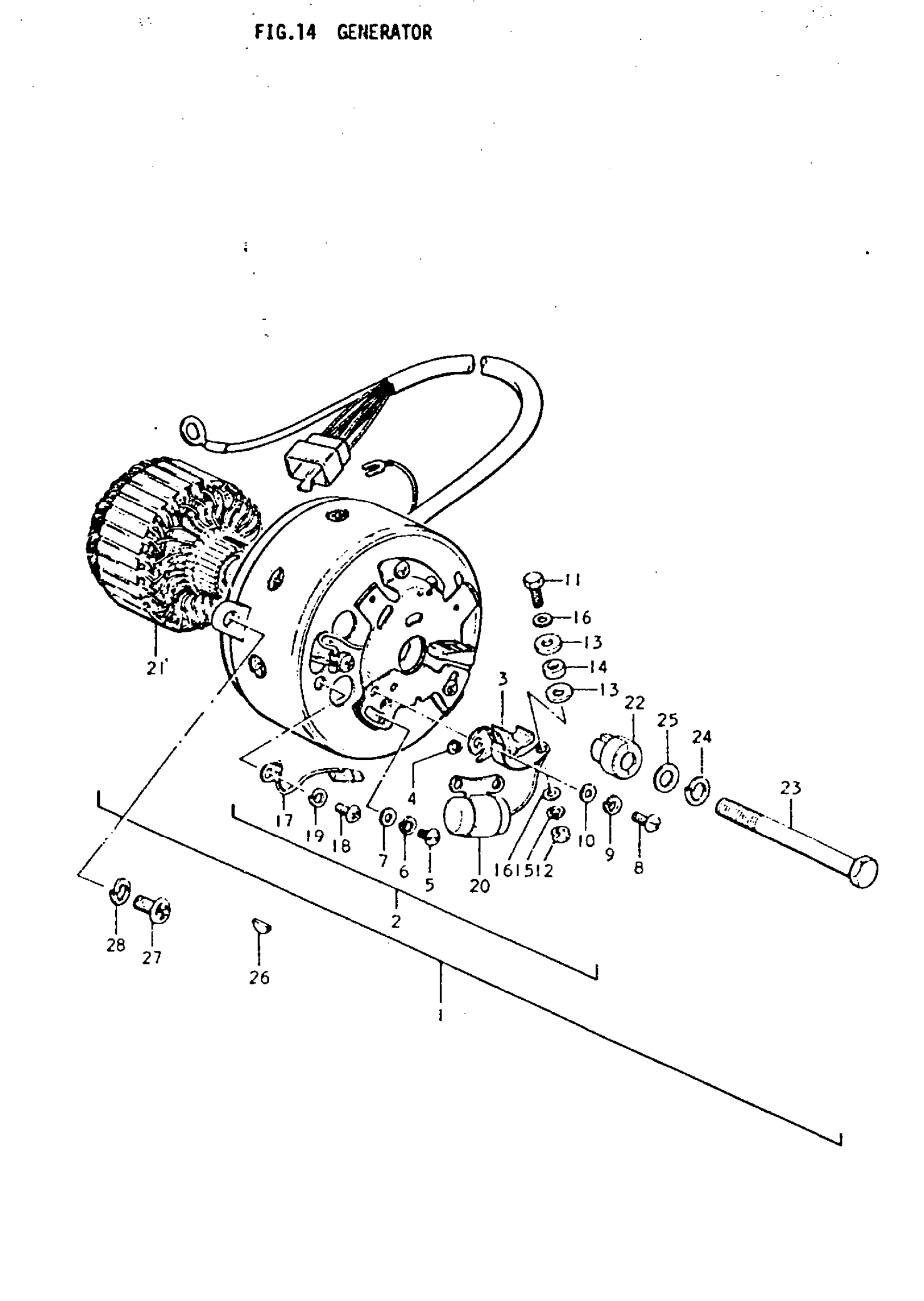

Suzuki TC185 (1977) GENERATOR Diagram

#

Description
Price

1

GENERATOR ASSY | Includes Item(s) 2 - 25

31400-29110

Unavailable

2

STATOR ASSY

31401-29110

Unavailable

3

POINT ASSY, CONTACT

31460-09010

$80.33

4

ADJUSTER, CONTACT POINT

31448-09010

Unavailable

5

SCREW This part replaces 02111-04067.

02112-0406B

$1.55

6

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

7

WASHER This part replaces 08322-21048.

08322-01047

$1.86

8

SCREW This part replaces 02111-04087.

02112-04087

$1.49

9

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

10

WASHER This part replaces 08322-21048.

08322-01047

$1.86

11

BOLT, POINT TERMINAL

33154-51010

Unavailable

12

NUT This part replaces 08311-11038.

08310-0003B

$2.83

13

WASHER

31471-09010

Unavailable

14

WASHER

31472-09010

Unavailable

15

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

16

WASHER This part replaces 08322-21038.

08322-01037

$1.93

17

BRUSH This part replaces 31631-08410.

31631-36110

Unavailable

18

SCREW This part replaces 02111-04067.

02112-0406B

$1.55

19

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

20

CONDENSER

31642-09010

Unavailable

21

ARMATURE

31710-29110

Unavailable

22

CAM

31724-29110

Unavailable

23

BOLT This part replaces 31719-29110.

01500-0885B

$4.25

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

25

WASHER This part replaces 08322-21088.

08322-01087

$2.13

26

KEY This part replaces 08341-31049.

09420-04008

$3.42

27

SCREW This part replaces 02112-06168.

02112-06167

$1.49

28

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
