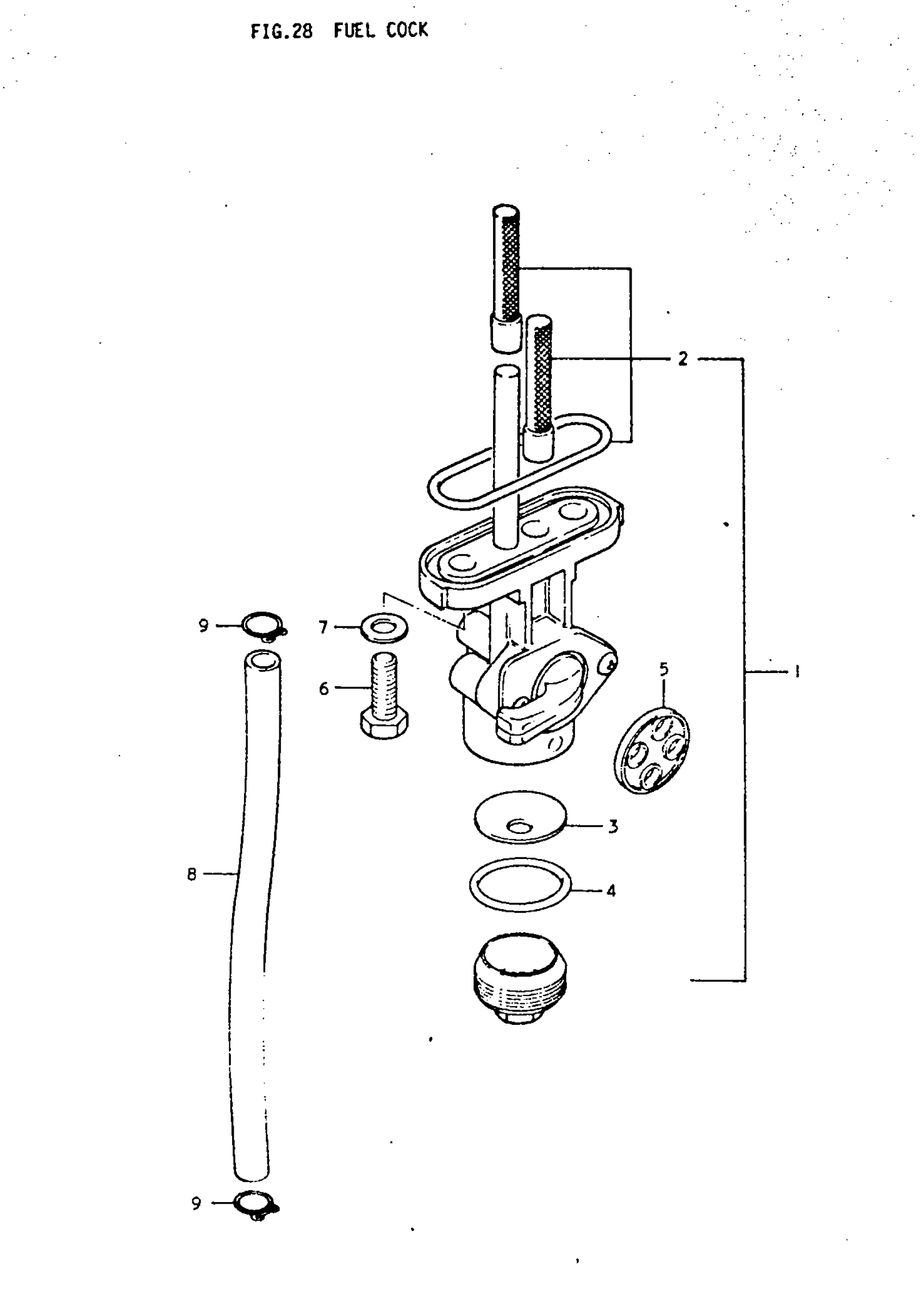

Suzuki TC185 (1977) FUEL COCK Diagram

#

Description
Price

1

COCK ASSY FUEL | L; TO 44300-28071 This part replaces 44300-28070.

44300-28604

Unavailable

1

COCK ASSY FUEL | M This part replaces 44300-28071.

44300-28604

Unavailable

1

COCK ASSY,FUEL | A This part replaces 44300-22571.

44300-13275

$45.80

1

COCK ASSY,FUEL | B; Includes Item(s) 2 - 5 This part replaces 44300-22600.

44300-13275

$45.80

2

FILTER SET | FROM 44300-28818 This part replaces 44300-28817.

44300-28818

$10.50

3

CLEANER

44344-28070

Unavailable

4

O-RING This part replaces 44346-28070.

44346-28071

$2.40

5

GASKET,LEVER | M,A,B This part replaces 44341-28070.

44341-28071

$2.92

6

SCREW | L,M,A This part replaces 09128-06005.

02162-0616B

$2.03

6

SCREW | B This part replaces 09128-06002.

02162-0616B

$2.03

7

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.35

8

HOSE,5X10X600 | L; 5x8.2x220 This part replaces 09343-05031.

44421-13ER0

$10.06

8

HOSE | M; 5x8.2x200

09343-05032

Unavailable

8

HOSE,5X10X600 | A,B; 5x8.2x240 This part replaces 09343-05129.

44421-13ER0

$10.06

9

CLIP

09401-08401

$1.54
