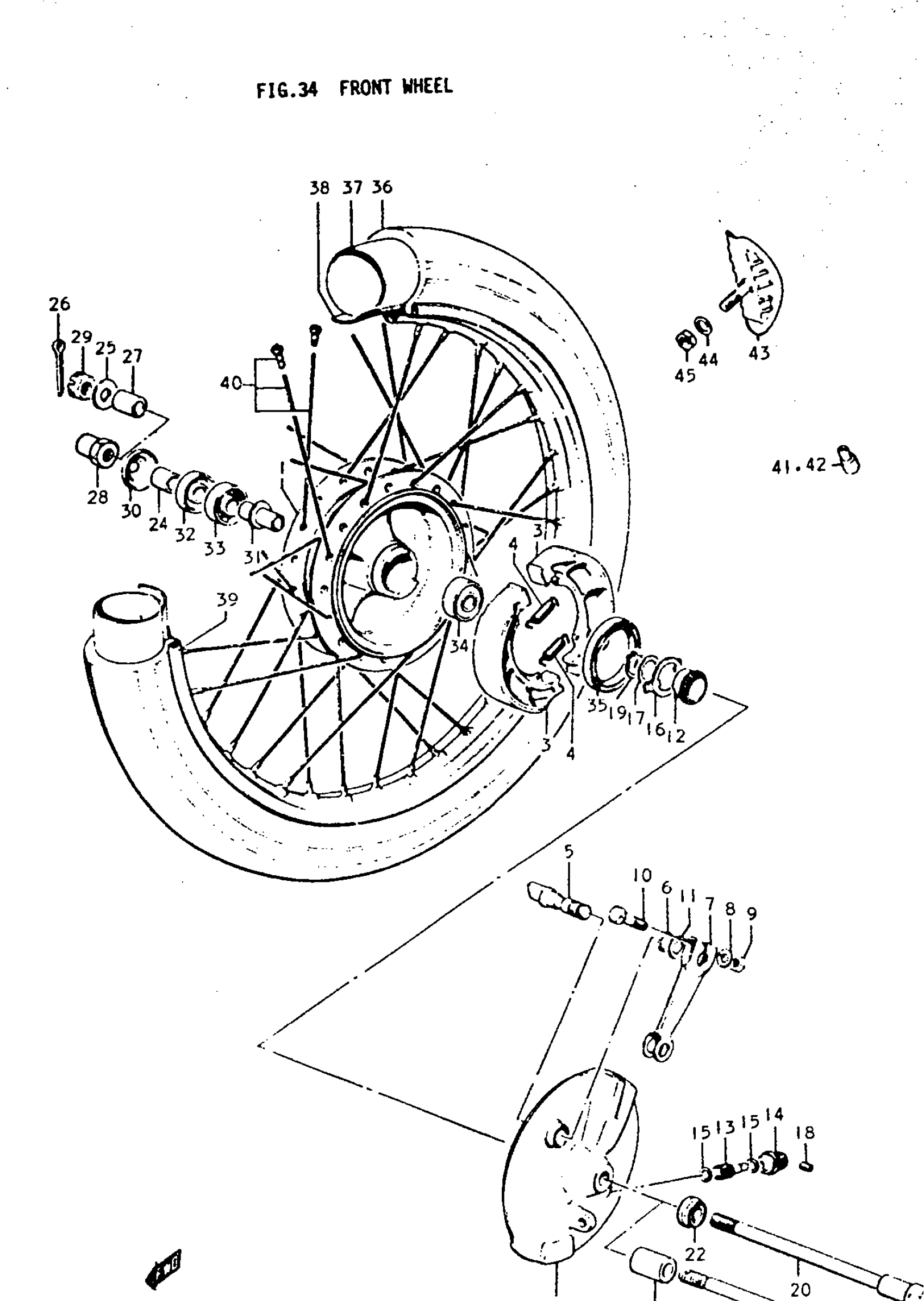

Suzuki TC185 (1977) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEE | L,M,A This part replaces 54110-07001.

54110-07003

Unavailable

1

NO DESCRIPTION AVAILABLE | B This part replaces 54110-16501.

54110-16502

Unavailable

2

PANEL, BRAKE ANCHOR | L,M,A

54210-28400

Unavailable

2

PANEL, BRAKE ANCHOR | B

54210-28620

Unavailable

3

SHOE SET, BRAKE This part replaces 54410-07002.

54401-07810

Unavailable

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE | L,M; TO54441-01002

54441-07001

Unavailable

5

CAM, BRAKE | M,A

54441-01002

$18.80

6

DUST SEAL

09280-12001

$2.90

7

LEVER, BRAKE CAM

54451-28400

Unavailable

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

.NUT | M,A,B This part replaces 08311-11068.

08310-00067

$2.13

10

BOLT, ADJUSTER This part replaces 09100-06050.

09100-06150

$2.30

11

WASHER | 12.5x20x1.0

09160-12011

$1.54

12

NO DESCRIPTION AVAILABLE This part replaces 54611-28001.

54611-28002

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 54621-28000.

54621-28001

Unavailable

14

BUSHING

54632-01001

$12.80

15

WASHER,5.1X9X0. | 5.1x9x0.4 This part replaces 09160-05001.

09160-05001-A05

$1.87

16

DRIVER, SPEEDOMETER DRIVE GEAR

54661-07000

$4.52

17

WASHER | 18.5x24x1

09160-18002

$2.38

18

SCREW,3X4.3 This part replaces 09134-03101.

09134-03101-A05

$1.78

19

CIRCLIP

08331-11189

Unavailable

20

AXLE, FRONT | L

54711-28401

Unavailable

21

AXLE, FRONT | M,A,B

54711-28303

Unavailable

22

SPACER, LH | L

54751-25500

Unavailable

23

SPACER, LH | M,A,B

09180-12062

Unavailable

24

SPACER, RH | 12x18x16.4

09180-12040

$8.35

25

WASHER | M,A,B This part replaces 08322-21128.

08322-01127

$1.84

26

PIN | M,A,B This part replaces 04111-30308.

04111-3030A

$1.49

27

SPACER | M,A,B

09180-12061

Unavailable

28

NUT | L

54721-36000

Unavailable

29

NUT | M,A,B This part replaces 08314-31128.

08314-3112A

$2.41

30

COVER, FRONT HUB DUST SEAL

54892-28400

Unavailable

31

SPACER

54730-07000

Unavailable

32

SEAL,OIL(17X38X This part replaces 09284-18001.

09284-18006

$5.10

33

BEARING

08113-63010

$19.57

34

B1 12X37X12 BEA This part replaces 08143-63010.

08143-6301B

$19.20

35

SEAL This part replaces 09285-48001.

09285-48002

$6.10

36

TIRE, FRONT | 3.00-19

55100-29600

Unavailable

37

TUBE, INNER | 3.00-19

55200-29010

Unavailable

38

PROTECTOR, WHEEL INNER TUBE FRONT This part replaces 55261-29010.

55261-15020

$3.15

39

RIM, WHEEL | L; 1.40-19

55311-29601

Unavailable

39

RIM, WHEEL | M,A,B; 1.40-19

55311-17022

Unavailable

40

SPOKE SET

55300-28840

Unavailable

41

BALANCER | L; 50G

55411-30000

Unavailable

42

BALANCER WHEEL (30G) | L; 30G This part replaces 55412-11000.

55413-41F00

$7.50

43

STOPPER, BEAD | L; 1.40A

65270-28610

Unavailable

44

WASHER | L This part replaces 08322-11088.

08322-01087

$2.13

45

NUT | L This part replaces 08312-11088.

08310-00087

$2.13
