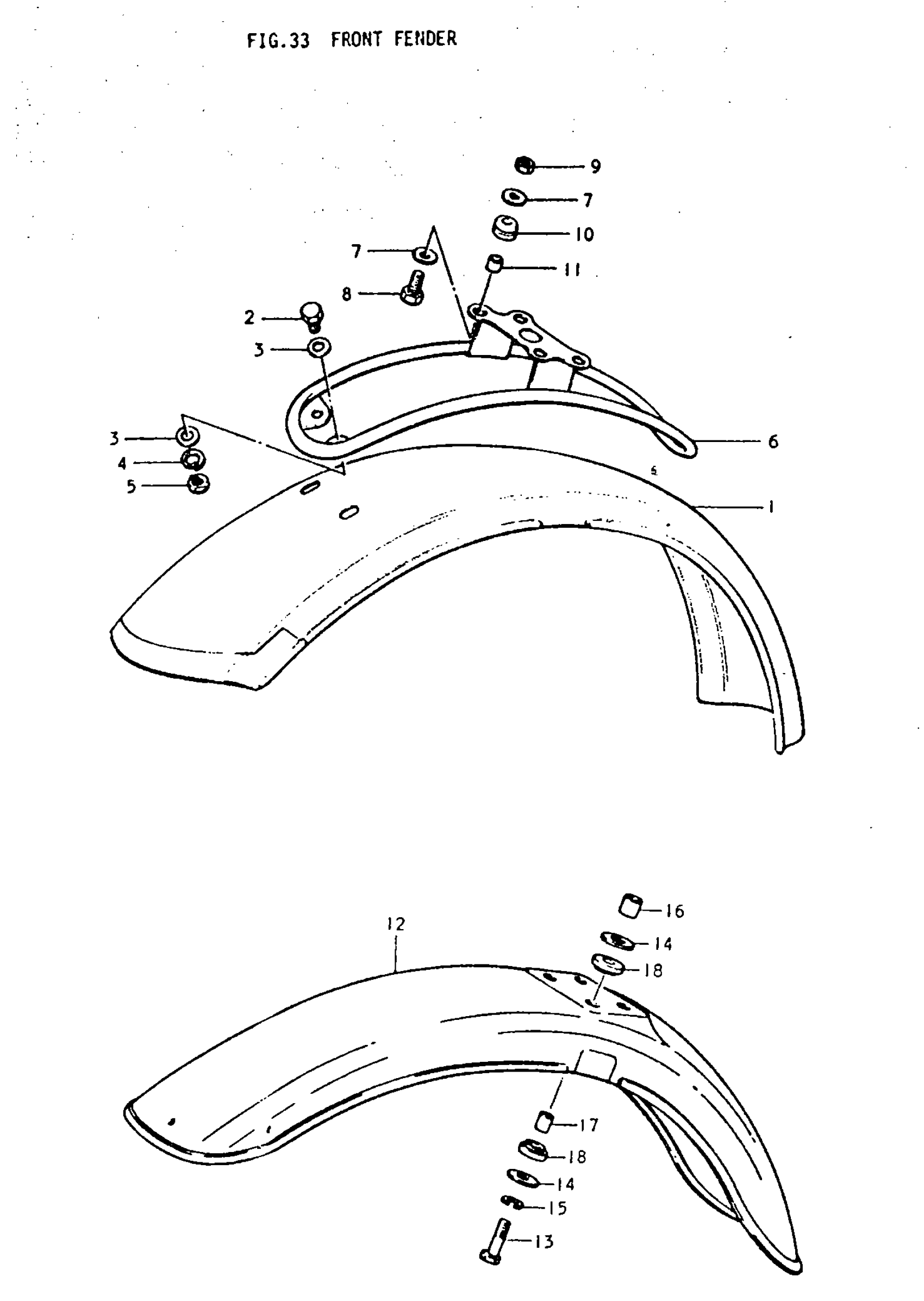

Suzuki TC185 (1977) FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER | L,M

53110-29100

Unavailable

2

BOLT | L,M; 6x14 This part replaces 09100-06026.

09100-06067

Unavailable

3

WASHER | L,M This part replaces 08322-21068.

08322-01067

$2.13

4

LOCK WASHER | L,M This part replaces 08321-21068.

08321-01067

$2.13

5

.NUT | L,M This part replaces 08311-11068.

08310-00067

$2.13

6

BRACE, FRONT FENDER | L,M; FROM 53210-29000

53210-29001

Unavailable

7

WASHER (6.5X20X1.2) | L,M; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

8

BOLT, CANISTER | L,M This part replaces 01112-06168.

01500-06167

$1.97

9

.NUT | L,M This part replaces 08311-11068.

08310-00067

$2.13

10

CUSHION (8.5X20X8) | L,M This part replaces 09320-08007.

09320-08510

$1.97

11

SPACER | L,M; 6.1x9x7.5

09180-06038

$1.98

12

NO DESCRIPTION AVAILABLE | A,B This part replaces 53111-28300-737.

53111-28300-13L

Unavailable

13

BOLT | A,B This part replaces 01112-06458.

01500-0645B

$2.57

14

WASHER (6.5X24X1.2) | A,B; 6.5x24x1.2 This part replaces 09160-06002.

09160-06114

$2.03

15

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$2.13

16

SPACER (6.5X10X20) | A,B; 6.8x10x20 This part replaces 09180-06031.

09180-06296

$2.45

17

SPACER | A,B; 6.5x10.5x13.5 This part replaces 09180-06046.

09180-06292

$2.47

18

CUSHION | A,B

09320-10003

$2.38
