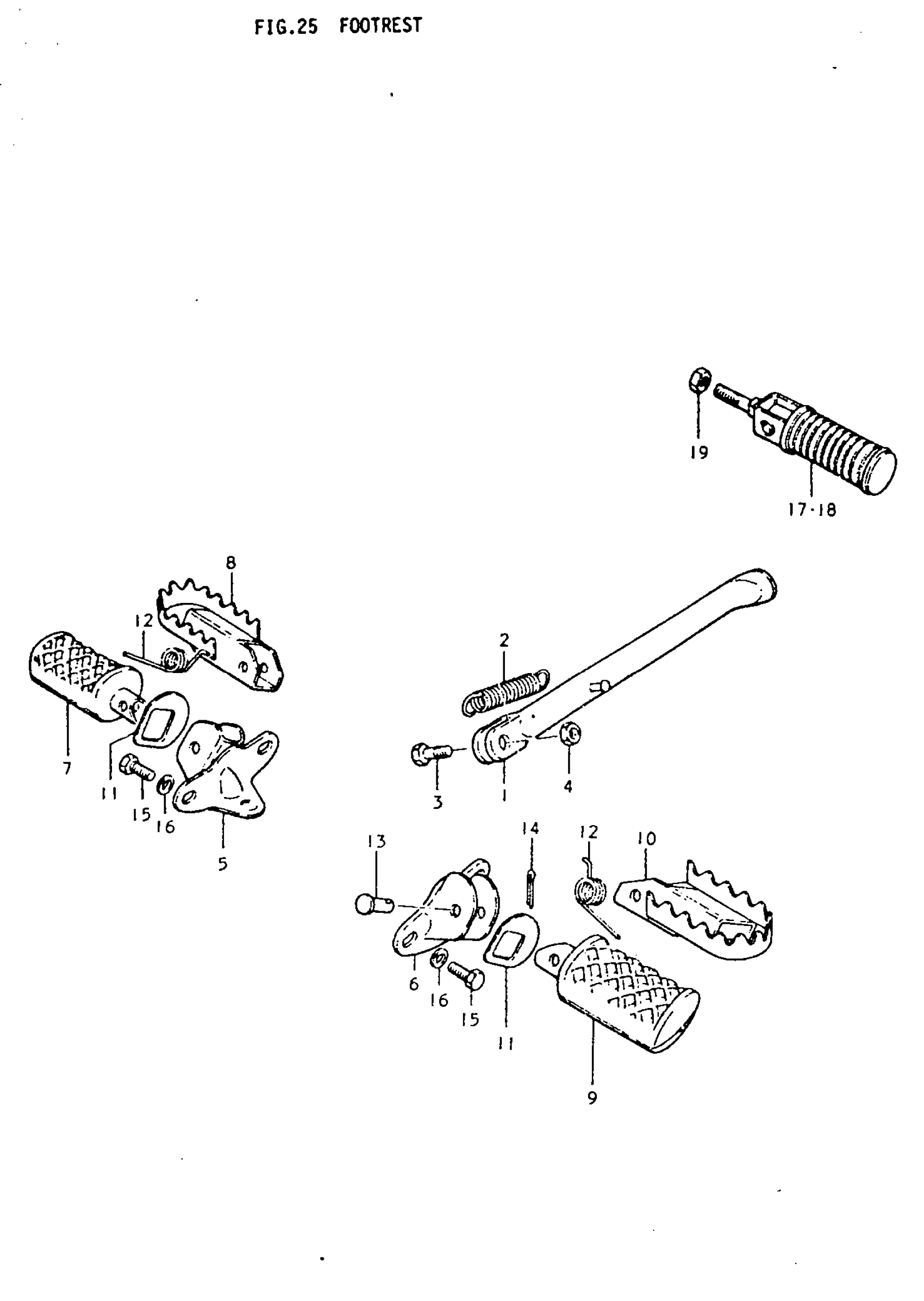

Suzuki TC185 (1977) FOOTREST Diagram

#

Description
Price

1

STAND, PROP

42310-29000

Unavailable

2

SPRING This part replaces 09443-14005.

09443-14017

$3.04

3

BOLT | 10x30

09100-10067

$2.61

4

NUT This part replaces 08312-32108.

08310-00107

$2.19

5

FOOTREST BAR, FRONT RH | L,M

43510-29100

Unavailable

5

FOOTREST BAR, FRONT RH | A,B

43510-29101

Unavailable

6

FOOTREST BAR, FRONT LH | L,M This part replaces 43520-29000.

43520-29001

Unavailable

6

FOOTREST BAR, FRONT LH | A,B

43520-29001

Unavailable

7

FOOTREST RH | L,M

43550-25301

Unavailable

8

FOOTREST RH | A,B

43550-25302

Unavailable

9

FOOTREST LH | L,M

43560-25301

Unavailable

10

FOOTREST LH | A,B

43560-25302

Unavailable

11

WASHER | L,M

43581-25300

Unavailable

12

SPRING | A,B

09448-14012

$3.04

13

PIN

09200-08002

$2.05

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

15

BOLT, LH | 8x14 This part replaces 09100-08067.

09100-08143

$2.29

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

FOOTREST ASSY,P | L This part replaces 43600-03001.

43600-09D00

$27.30

17

FOOTREST ASSY, PILLION RH | M,A,B

43600-28000

Unavailable

18

FOOTREST ASSY, PILLION LH | L

43600-28000

Unavailable

18

FOOTREST ASSY, PILLION LH | M,A,B

43600-36200

Unavailable

19

NUT, FIXED DRIVE FACE | A,B This part replaces 08312-31128.

09140-12039

$3.05
