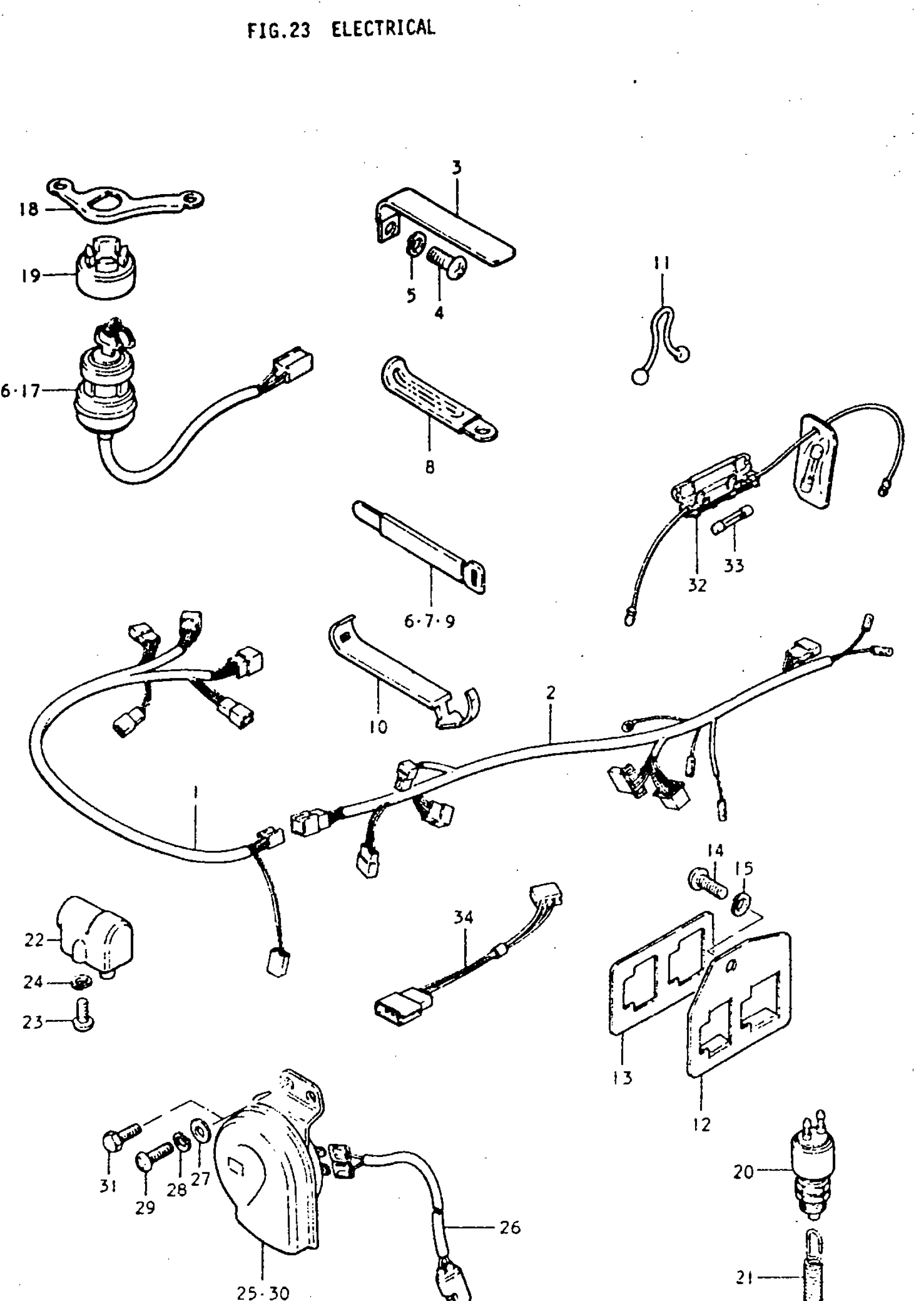

Suzuki TC185 (1977) ELECTRICAL Diagram

#

Description
Price

1

WIRING HARNESS (A) | L; TO 36610-36700

36610-36100

Unavailable

1

WIRING HARNESS (A) | M; TO 36610-36102 USED WITH 36851-36700

36610-36700

Unavailable

1

WIRING HARNESS (A) | A,B

36610-36102

Unavailable

2

WIRING HARNESS (B) | L; TO 36620-29102 USED WITH 36810-29100

36620-29100

Unavailable

2

WIRING HARNESS (B) | M,A,B

36620-29102

Unavailable

3

CLAMP This part replaces 09403-09307.

09403-09328

$1.77

4

SCREW This part replaces 02112-06128.

02112-06127

$1.84

5

LOCK WASHER | L,M This part replaces 08321-21068.

08321-01067

$2.13

6

CLAMP(L:250) | L:250 This part replaces 09407-25301.

09407-25302

Unavailable

7

CLAMP | L:110 This part replaces 09407-11302.

09407-18302

$2.28

8

CLAMP | L This part replaces 09404-06402.

09404-06039

$1.74

9

CLAMP | M,A,B This part replaces 09404-06402.

09404-06039

$1.74

9

CLAMP | L:180 This part replaces 09407-18301.

09407-18302

$2.28

10

BAND

33881-22200

Unavailable

11

CLIP This part replaces 09408-00011.

09408-00020

Unavailable

12

PLATE, COUPLER

36682-29100

Unavailable

13

SPACER, COUPLER PLATE

36687-29100

Unavailable

14

SCREW This part replaces 02112-06128.

02112-06127

$1.84

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

SWITCH ASSY IGN | L,M; FROM 37110-31012 This part replaces 37110-31013.

37110-31017

Unavailable

16

SWITCH ASSY, IGNITION | A; TO 37110-31016

37110-31014

Unavailable

17

SWITCH ASSY IGN | B This part replaces 37110-31016.

37110-31017

Unavailable

18

BRACKET, IGNITION SWITCH This part replaces 37115-36000.

37115-36001

Unavailable

19

COVER, IGNITION SWITCH | L,M; TO 37128-36001

37128-36000

Unavailable

19

COVER, IGNITION SWITCH | A

37128-36001

Unavailable

20

SWITCH ASSY, STOP LAMP

37610-53011

$30.75

21

SPRING

09443-06005

$3.37

22

LOCK ASSY, STEERING This part replaces 50000-25837.

51910-25311

$40.33

23

SCREW This part replaces 02111-05127.

02112-05127

$1.97

24

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

25

HORN | L,M; TO 38500-29132

38500-29131

Unavailable

26

LEAD WIRE, HORN | L

36870-31030

Unavailable

26

LEAD WIRE, HORN | M

36810-29100

Unavailable

27

WASHER | L,M This part replaces 08322-21068.

08322-01067

$2.13

28

LOCK WASHER | L,M This part replaces 08321-21068.

08321-01067

$2.13

29

SCREW | L,M This part replaces 02112-06128.

02112-06127

$1.84

30

HORN ASSY | A,B This part replaces 38500-29132.

38500-11031

Unavailable

31

BOLT | A,B This part replaces 01112-06108.

01500-06107

$2.06

32

FUSE CASE ASSY | Includes Item(s) 33 This part replaces 36740-15010.

36740-15011

$9.38

33

FUSE | 15A

09481-15001

$2.06

34

LEAD WIRE | L

36851-36700

Unavailable
