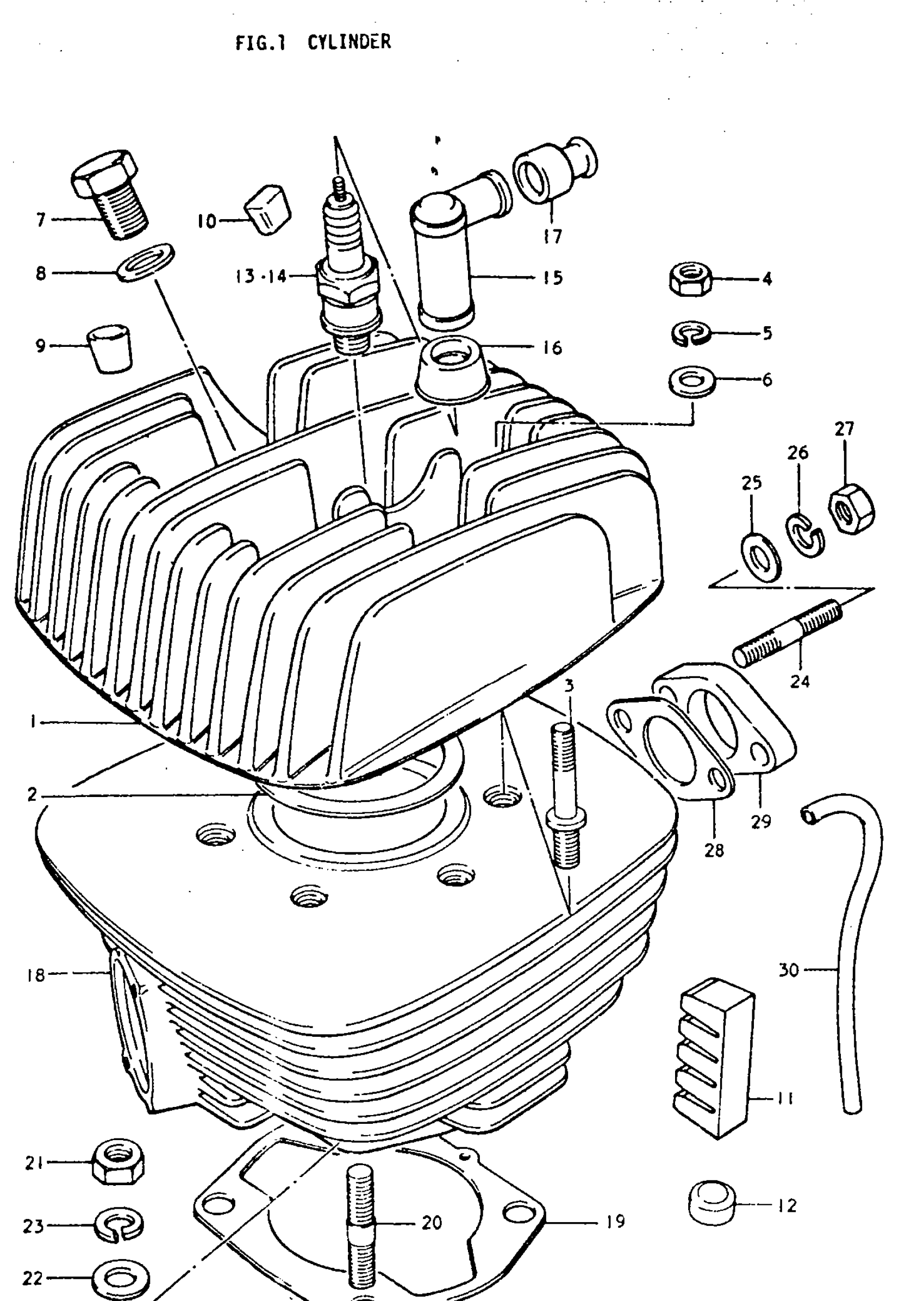

Suzuki TC185 (1977) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD | L,M

11111-29100

Unavailable

1

CYLINDER HEAD | A,B

11111-29610

Unavailable

2

GASKET, CYLINDER HEAD

11141-29000

Unavailable

3

STUD BOLT

09108-08018

$3.18

4

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

5

.LOCK WASHER | L,M,A This part replaces 08321-21088.

08321-01087

$2.13

6

WASHER This part replaces 08322-21088.

08322-01087

$2.13

7

PLUG, DRAIN This part replaces 09247-14007.

09247-14025

$2.79

8

GASKET

09168-14004

$1.83

9

PAD, CYLINDER HEAD | L,M,A; TO 11252-25000 This part replaces 11151-25000.

11252-25000

$4.52

10

PAD, CYLINDER HEAD | B

11252-25000

$4.52

11

PAD, CYLINDER | L,M

11251-29100

Unavailable

12

RUBBER PAD | A,B This part replaces 11252-28000.

11252-13630

$3.25

13

SPARK PLUG | NGK B-7HS

09482-00082

$2.98

14

SPARK PLUG | ND W22FS

09482-00083

Unavailable

15

CAP SET,SPARK P | Includes Item(s) 16 - 17 This part replaces 33500-69810.

33500-69811

$22.48

16

SEAL, SPARK PLUG CAP

33541-69010

$4.37

17

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

18

CYLINDER | L,M

11210-29100

Unavailable

18

CYLINDER | A,B

11210-29610

Unavailable

19

GASKET, CYLINDER

11241-29100

Unavailable

20

STUD BOLT (L:30) | L,M This part replaces 01421-10308.

01421-1030A

$2.57

20

BOLT,STUD | A,B This part replaces 01421-10258.

01421-1025B

$3.16

21

NUT This part replaces 08312-12108.

08310-00107

$2.19

22

WASHER This part replaces 08322-11108.

08322-01107

$2.15

23

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

24

STUD BOLT (L:30) This part replaces 01421-08308.

09108-08142

$3.18

25

WASHER | L,M,A This part replaces 08322-11088.

08322-01087

$2.13

26

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

27

NUT This part replaces 08312-11088.

08310-00087

$2.13

28

GASKET,CARBURET This part replaces 13125-11000.

13125-11000-H17

$2.52

29

INSULATOR, CARBURETOR

13129-11000

Unavailable

30

HOSE | 3x5x140 This part replaces 09344-03014.

09351-30001-600

$3.57
