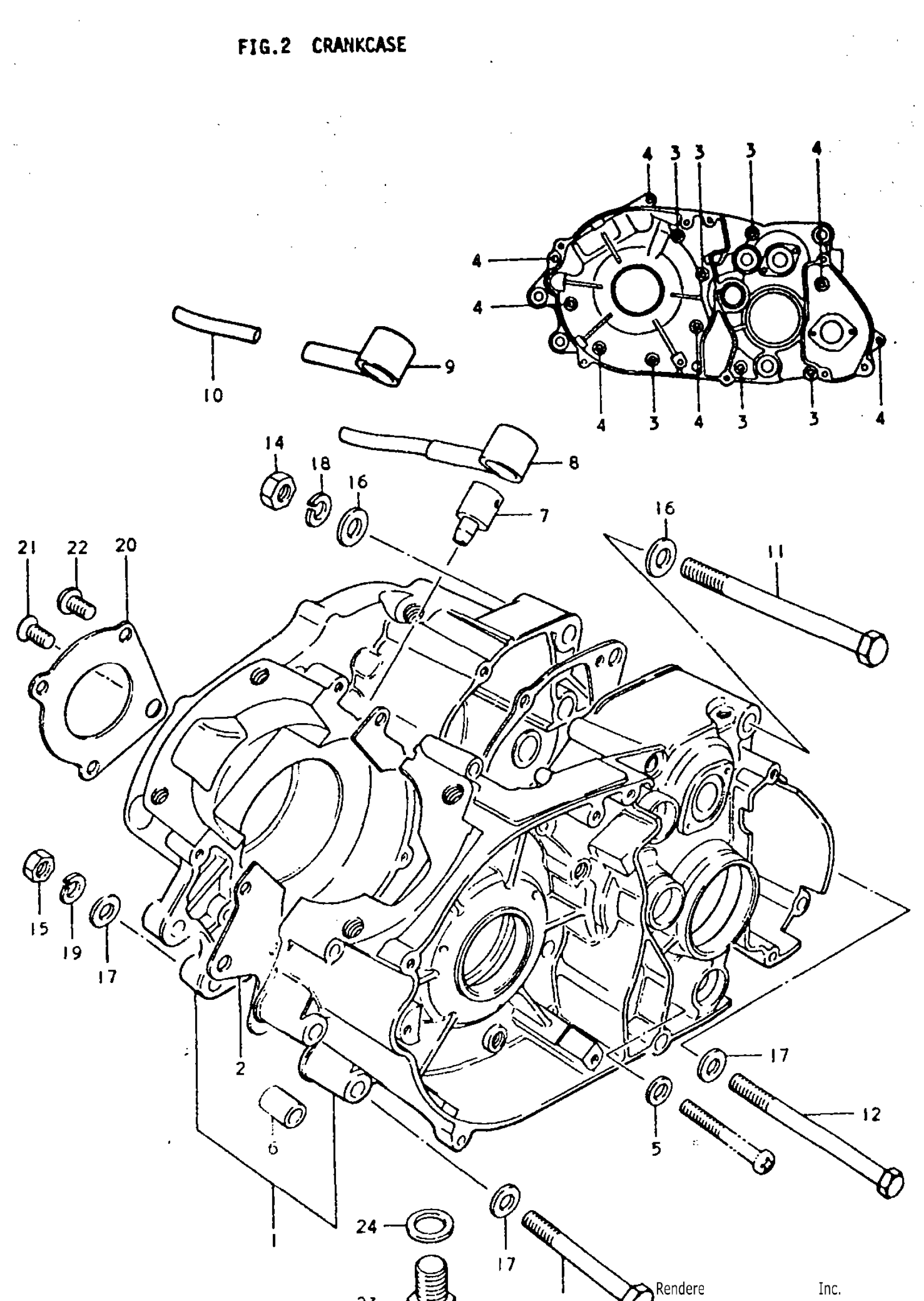

Suzuki TC185 (1977) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | L,M This part replaces 11300-29821.

11300-29830

Unavailable

1

CRANKCASE SET | A,B; Includes Item(s) 2 - 10

11300-29830

Unavailable

2

GASKET, CRANKCASE

11481-29100

Unavailable

3

SCREW

02112-06657

$2.62

4

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

5

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

6

PIN | 10.4x13x18 This part replaces 09206-13001.

04211-13189

$2.19

7

PLUG, BREATHER This part replaces 24821-09000.

24821-09001

$9.33

8

BREATHER PLUG C | L,M,A; TO 24822-20000 USED WITH 09344-03020 This part replaces 24822-26000.

24822-20001

$3.70

9

BREATHER PLUG C | A,B; E.NO.21985~ This part replaces 24822-20000.

24822-20001

$3.70

10

HOSE (3.5X6.5X600) | A,B; E.NO.21985~ This part replaces 09344-03020.

09351-35653-600

$4.64

11

BOLT | 10x115 This part replaces 09100-10060.

09116-10032

$5.77

12

BOLT | 8x120

09100-08078

Unavailable

13

BOLT This part replaces 01122-08708.

01500-0870B

$3.49

14

NUT This part replaces 08312-12108.

08310-00107

$2.19

15

NUT This part replaces 08312-11088.

08310-00087

$2.13

16

WASHER This part replaces 08322-11108.

08322-01107

$2.15

17

WASHER This part replaces 08322-11088.

08322-01087

$2.13

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

PLATE, OIL RESERVOIR | L,M,A; FROM 12561-29100 TO 12521-29101 This part replaces 12521-29100.

12521-29102

Unavailable

20

PLATE, OIL RESERVOIR | B

12521-29102

Unavailable

21

SCREW This part replaces 02122-06128.

02122-06127

$1.84

22

SCREW This part replaces 02112-06128.

02112-06127

$1.84

23

PLUG, DRAIN | 14x12 This part replaces 09247-14007.

09247-14025

$2.79

24

GASKET

09168-14004

$1.83
