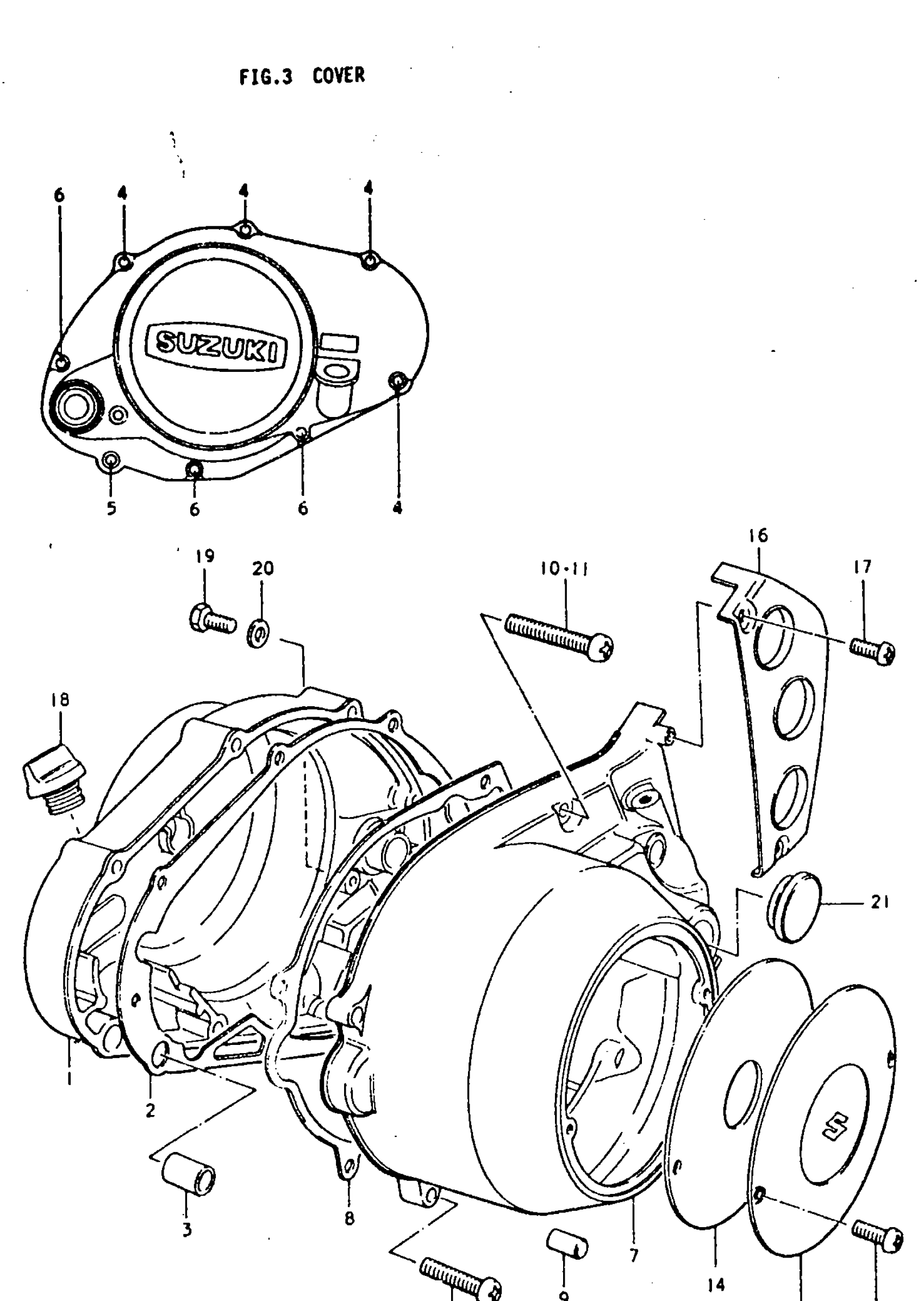

Suzuki TC185 (1977) COVER Diagram

#

Description
Price

1

COVER, CLUTCH | L,M

11341-29100

Unavailable

1

COVER, CLUTCH | A,B

11341-29600

Unavailable

2

GASKET, CLUTCH COVER

11482-29100

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

5

SCREW

02112-06557

$2.53

6

SCREW This part replaces 02112-06208.

02112-06207

$1.78

7

COVER, GENERATOR | L,M

11351-29100

Unavailable

7

COVER, GENERATOR | A,B

11351-29600

Unavailable

8

GASKET, GENERATOR COVER

11483-29100

Unavailable

9

DOWEL PIN

04211-09129

$1.65

10

SCREW This part replaces 02112-06358.

02112-06357

$1.78

11

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

12

SCREW This part replaces 02112-06258.

02112-06257

$1.78

13

CAP, MAGNETO INSPECTION | L,M

11381-07001

Unavailable

13

CAP, MAGNETO INSPECTION | A,B

11381-29600

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 11491-29100.

11491-29101

Unavailable

15

SCREW This part replaces 02111-05087.

02112-05087

$1.49

16

COVER, ENGINE SPROCKET | L,M

11361-29100

Unavailable

16

COVER, ENGINE SPROCKET | A,B

11361-29600

Unavailable

17

SCREW This part replaces 02111-05108.

02112-05107

$1.49

18

PLUG This part replaces 09259-19001.

09259-19005

$2.98

19

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

20

GASKET | 6.2x11x1

09168-06001

$1.49

21

CAP, CLUTCH RELEASE ADJUSTING

09250-25001

$2.45
