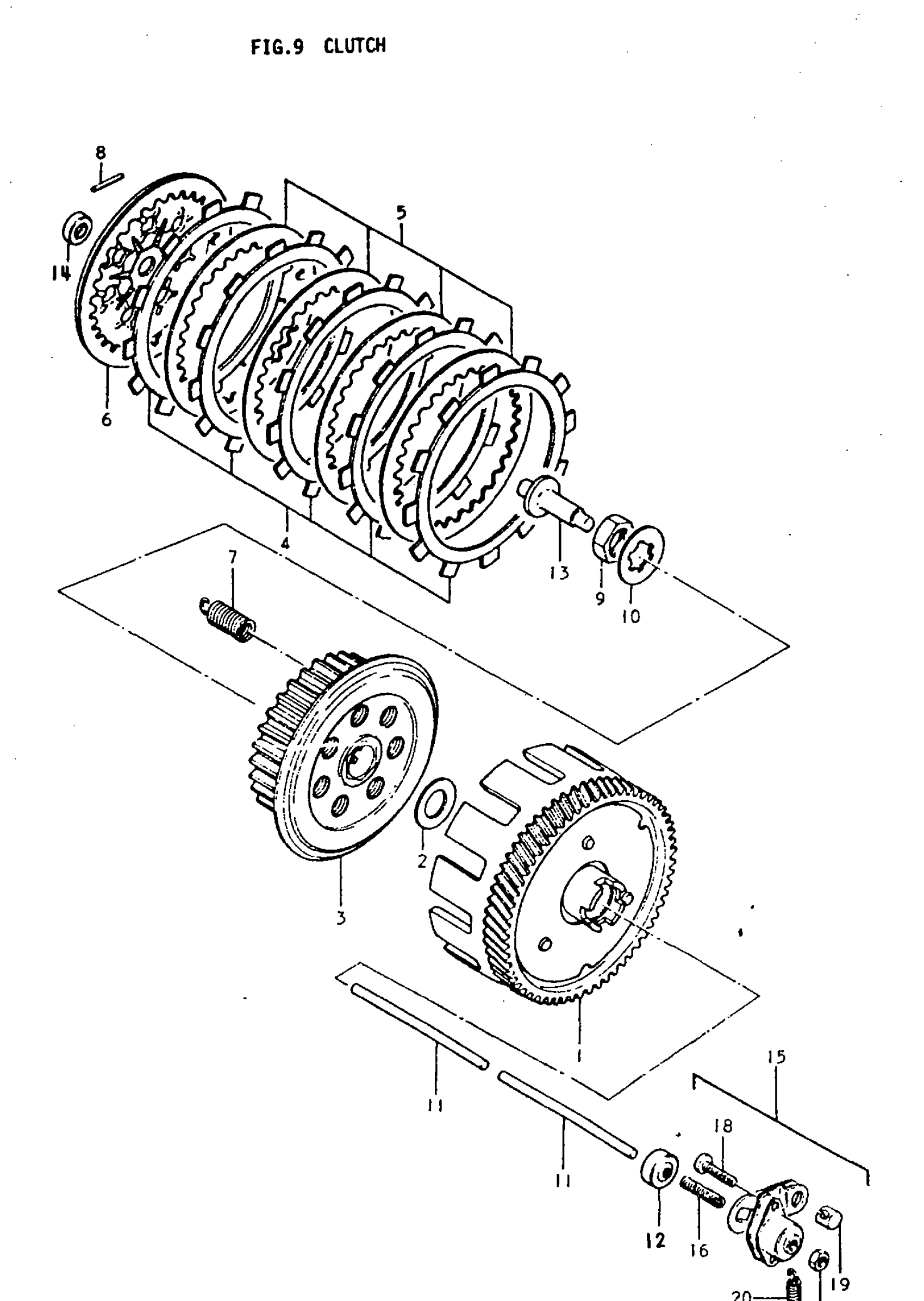

Suzuki TC185 (1977) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN | L,M; NT:67

21200-29100

Unavailable

1

NO DESCRIPTION AVAILABLE | A,B; NT:67 FROM 21200-29100 This part replaces 21200-29101.

21200-29102

Unavailable

2

WASHER

08211-17282

$2.70

3

HUB, CLUTCH SLEEVE

21410-29000

Unavailable

4

PLATE, CLUTCH DRIVE This part replaces 21441-28300.

21441-13A01

$14.73

5

PLATE, CLUTCH DRIVEN (T:1.6) This part replaces 21451-28000.

21451-19A00

$7.58

6

PLATE, CLUTCH PRESSURE

21460-28000

$25.25

7

SPRING

09443-12010

$2.45

8

PIN

09261-02001

$1.56

9

NUT | 16x7 This part replaces 09140-16001.

09140-16005

$3.75

10

WASHER

09167-17002

$1.91

11

ROD, CLUTCH PUSH

23111-10000

Unavailable

12

OIL SEAL This part replaces 09285-06006.

09285-06021

$12.08

13

PIECE, CLUTCH PUSH

23121-14000

Unavailable

14

OIL SEAL

09284-10002

$2.90

15

SCREW ASSY, CLUTCH RELEASE | Includes Item(s) 16 - 17

23200-29100

Unavailable

16

SCREW | 6.5x16x1.2 This part replaces 09134-06001.

09134-06010

$3.12

17

.NUT This part replaces 08311-31068.

08310-00067

$2.13

18

SCREW This part replaces 02112-05168.

02112-05167

$1.97

19

PIECE, CLUTCH RELEASE END

23222-07000

$4.52

20

SPRING

09443-08001

$2.92
