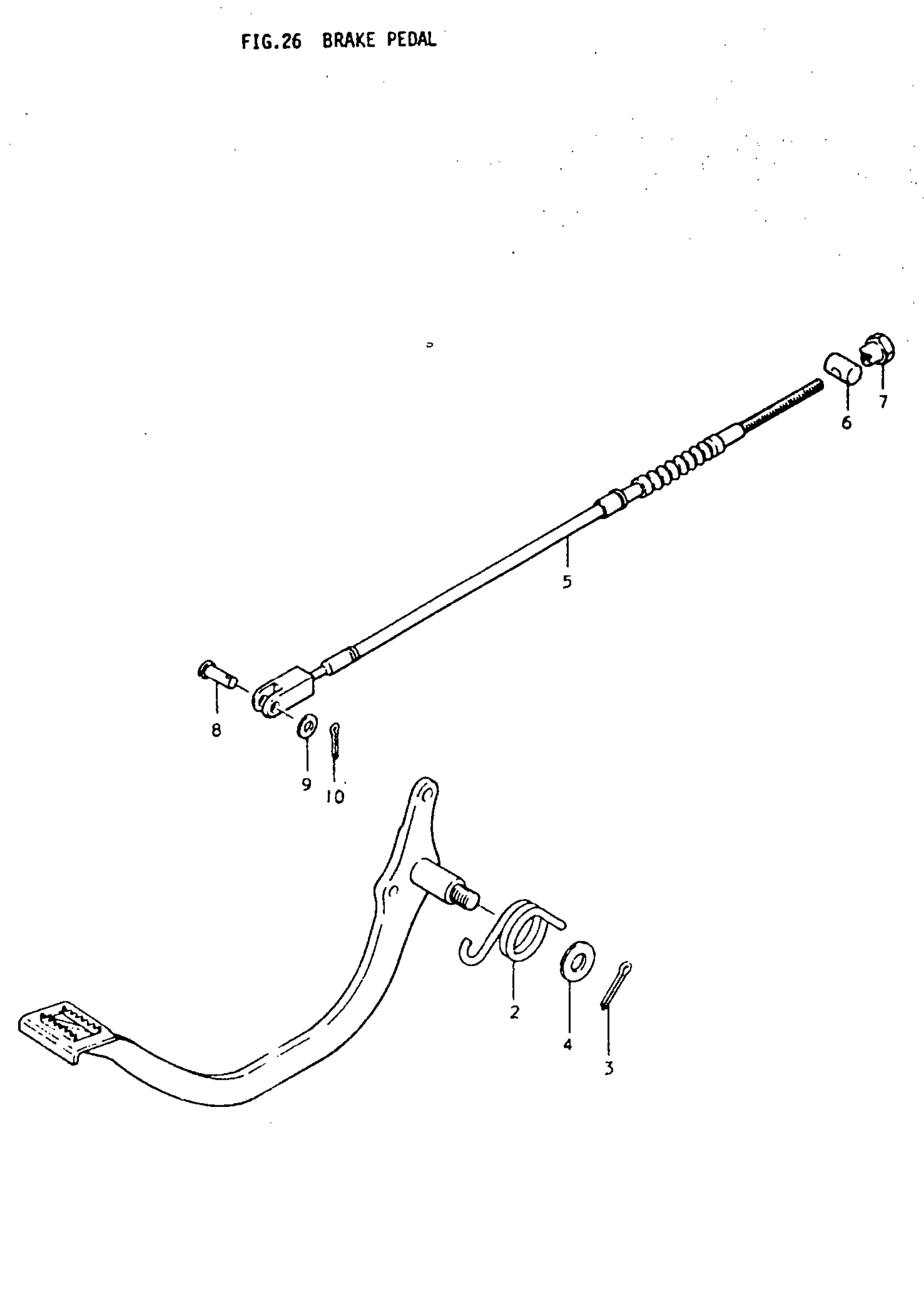

Suzuki TC185 (1977) BRAKE PEDAL Diagram

#

Description

Price

1

PEDAL, BRAKE

43110-29100

Unavailable

2

SPRING This part replaces 09448-32004.

09448-32004-XC0

Unavailable

3

PIN This part replaces 04111-30308.

04111-3030A

$1.41

4

WASHER | 24x15.5x2.3

09160-15002

$1.76

5

CABLE ASSY, REAR BRAKE

58510-29000

Unavailable

6

PIN

09209-11002

$2.17

7

.NUT This part replaces 09150-06001.

09150-06010

$2.88

8

PIN

09200-05001

$1.52

9

WASHER This part replaces 08322-21068.

08322-01067

$1.93

10

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.25
