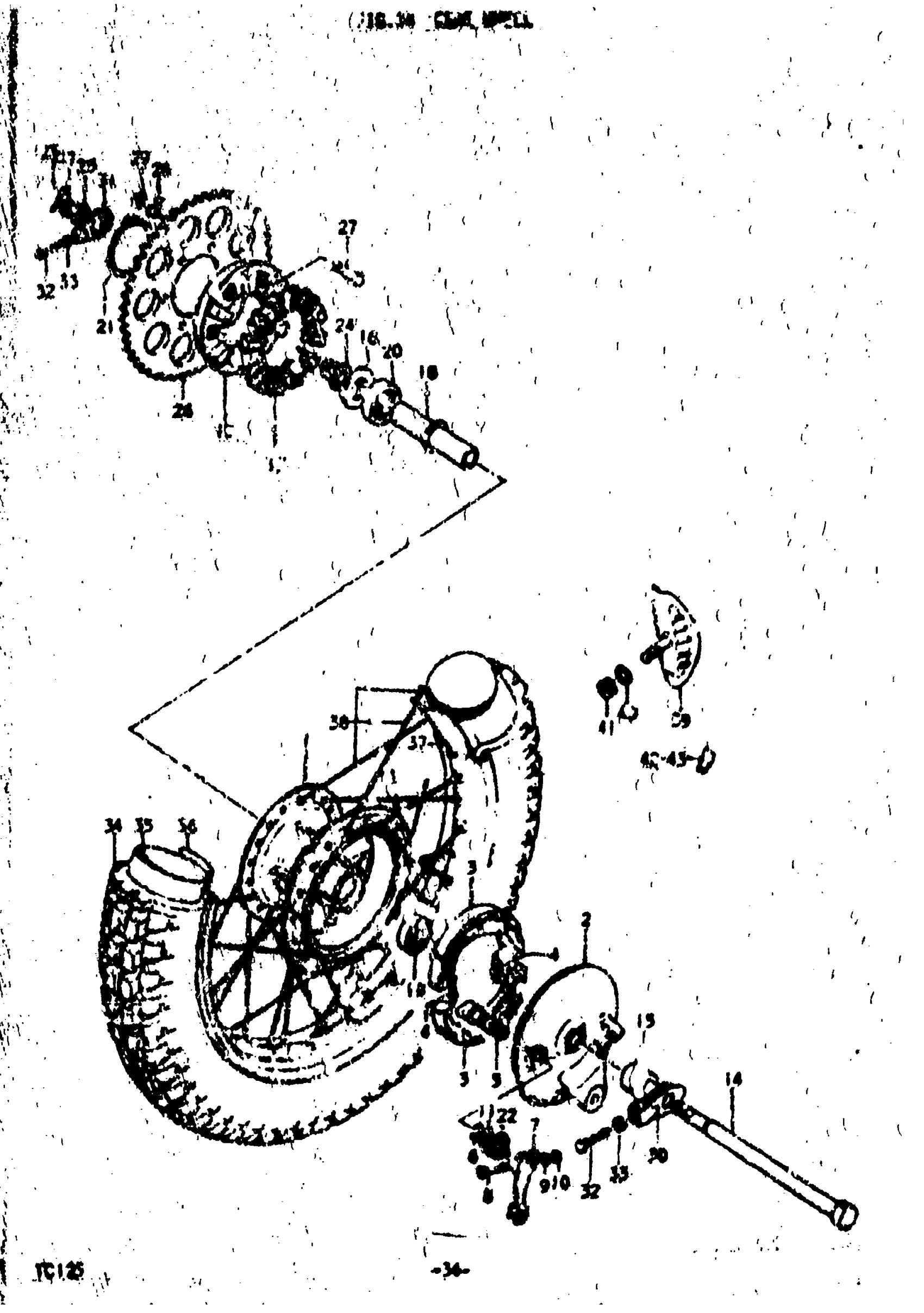

Suzuki TC125J (1975) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL | J,K,L; TO 64110-28002

64110-28001

Unavailable

1

HUB, REAR WHEEL | M

64110-28002

Unavailable

2

PANEL,HUB | J; TO 64910-28002

64210-28001

Unavailable

2

WHEEL, HUB | K; TO 64210-25500

64210-28002

Unavailable

2

PANEL, HUB | L; TO 68210-28003 This part replaces 64210-25500.

64210-28004

Unavailable

2

PANEL, HUB | M This part replaces 64210-28003.

64210-28004

Unavailable

3

SHOE SET, REAR BRAKE | J,K,L; TO 54410-07002 This part replaces 54410-08001.

64400-02830

$55.17

3

SHOE SET, BRAKE | M This part replaces 54410-07002.

54401-07810

Unavailable

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

CAK, BRAKE | J,K; TO 34441-28001

54441-20000

Unavailable

5

CAM, BRAKE | L; TO 54441-01002

54441-07001

Unavailable

5

CAM, BRAKE | M

54441-01002

$18.80

6

DUST SEAL This part replaces 09280-12000.

09280-12001

$2.90

7

LEVER, BRAKE CAM

64451-28000

Unavailable

8

BOLT, ADJUSTER This part replaces 09100-06050.

09100-06150

$2.30

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

.NUT This part replaces 08311-11068.

08310-00067

$2.13

11

WASHER

09160-12011

$1.54

12

DRUM, SPROKET MOUNTING

64610-28001

Unavailable

13

ASBORBER, HUB DRUM | J,K; TO 64650-28001 This part replaces 64650-28000.

64650-28002

Unavailable

13

ASBORBER, HUB DRUM | L; TO 64650-28002 This part replaces 64650-28001.

64650-28002

Unavailable

13

ASBORBER, HUB DRUM | M

64650-28002

Unavailable

14

AXLE, REAR | J,K; TO 64711-28001

64711-28000

Unavailable

14

NO DESCRIPTION AVAILABLE | L,M This part replaces 64711-28001.

64711-4130V

Unavailable

15

SPACER, RH This part replaces 09180-15010.

09180-15038

$7.77

16

SPACER, REAR AXLE LH

64750-28000

Unavailable

17

NUT This part replaces 08314-31128.

08314-3112A

$2.41

18

SPACER, BEARING | FROM 64730-34000

64730-28000

Unavailable

19

BEARING, LH This part replaces 08143-62020.

08143-62027

$16.01

20

BEARING This part replaces 08123-63020.

08123-6302B

$22.74

21

CIRCLIP This part replaces 08331-11558.

08331-31559

$6.20

22

SPRING, CAM LEVER

09448-27003

Unavailable

23

PIN This part replaces 04111-30308.

04111-3030A

$1.49

24

SPACER, CHAIN ADJUSTER RH | L:27

64791-28001

$23.32

24

SPACER, CHAIN ADJUSTER LH | J,K; L:25

64791-28000

Unavailable

25

NUT This part replaces 09140-18001.

09140-18501

$2.93

26

SPROCKET, REAR | NT:37

64511-29720

Unavailable

27

BOLT, SPROCKET | J,K,L

09105-08001

$2.06

27

BOLT, SPROCKET | M

09105-08006

Unavailable

28

WASHER, REAR SPROCKET

09169-08013

$2.23

29

NUT

09140-08010

Unavailable

30

ADJUSTER,CHAIN, | 8SCREW This part replaces 61410-28002.

61410-28005

$10.09

30

ADJUSTER, CHAIN RH | J,K; 6SCREW

61410-28001

Unavailable

31

LH CHAIN ADJUST | 8SCREW This part replaces 61420-28002.

61420-28004

$11.48

31

ADJUSTER, CHAIN LH | J,K; 6SCREW

61420-28001

Unavailable

32

BOLT | 8x40 This part replaces 09100-08099.

09100-08146

$2.82

32

BOLT, CHAIN ADJUSTER | J,K; 6x37

09100-06065

$2.47

33

NUT This part replaces 08312-31088.

08310-00087

$2.13

33

.NUT | J,K This part replaces 08311-11068.

08310-00067

$2.13

34

NO DESCRIPTION AVAILABLE | J,K; 3.25-18, OPT KNOBBYL,M; 3.25-18, OPT KNOBBY This part replaces 65100-28211.

65100-28600

Unavailable

34

TIRE, REAR | L,M; 3.25~18 KNOBBY

65100-28031

Unavailable

35

TUBE ASSY, WHEEL INNER | J,K; 3.25~18 This part replaces 65200-18010.

65200-44AA0

$53.43

35

TUBE, INNER | L,M; 3.25-18

65200-28030

Unavailable

36

IN TUBE PROTECT | J,K This part replaces 55261-11010.

55261-26F10

$4.39

36

PROTECTOR, INNER TUBE | L,M

55261-28030

Unavailable

37

RIM, REAR WHEEL | J,K,L; BOLD-TIPPED TYPE

65311-29601

Unavailable

37

RIM, REAR WHEEL | L; STREIGHT TYPE

65311-29602

Unavailable

37

RIM, REAR WHEEL | M

65311-29022

Unavailable

38

SPOKE SET, REAR | J,K,L; BOLD-TIPPED TYPE

65300-28807

Unavailable

38

SPOKE SET | L,M; STRAIGHT TYPE This part replaces 65300-28880.

65320-28021

$57.37

39

STOPPER, HEAD | J,K,L

65270-28600

$54.75

40

.WASHER | J,K,L This part replaces 08322-11068.

08322-0106B

$2.26

41

NUT | J,K,L This part replaces 08312-11088.

08310-00087

$2.13

42

BALANCER WHEEL (30G) | J,K,L; 30G BOLD-TIPPED TYPE This part replaces 55412-11000.

55413-41F00

$7.50

42

BALANCER, WHEEL | L; 30G STRAIGHT TYPE

55412-37000

Unavailable

43

BALANCER, WHEEL | J,K,L; 50G BOLD-TIPPED TYPE

55411-28000

Unavailable

43

BALANCER, WHEEL | L; 50G STRAIGHT TYPE

55411-30000

Unavailable
