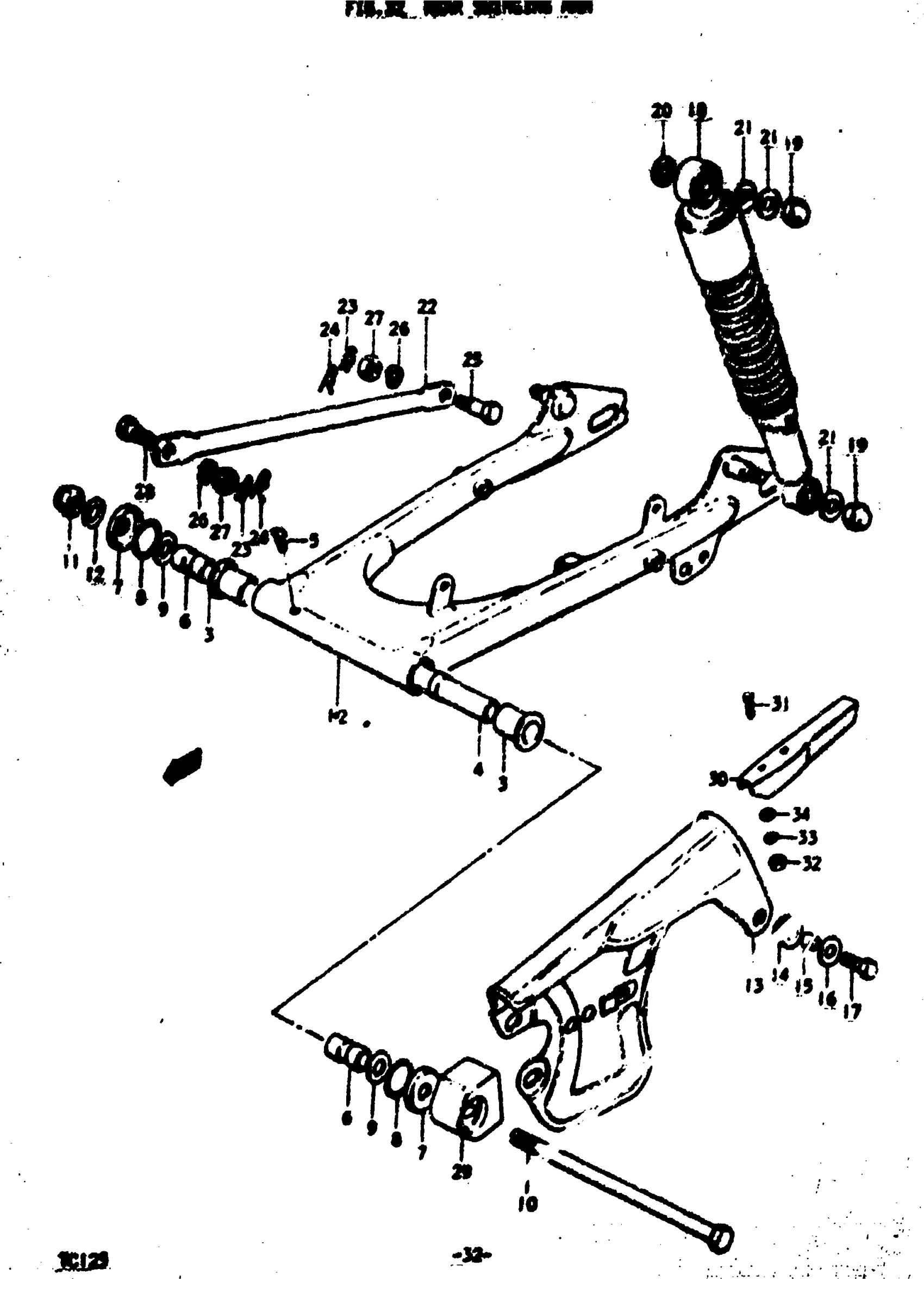

Suzuki TC125J (1975) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM, REAR | J,K; TO 61100-28840-019

61100-28805-019

Unavailable

1

SWINGING ARM, REAR | L; TO 61100-28840-019

61100-28840-019

Unavailable

2

SWINGING ARM, REAR | M; Includes Item(s) 3 - 5

61100-28860-019

Unavailable

3

BUSHING This part replaces 09307-18001.

09307-18002

$10.21

4

SPACER, CENTER

61280-28000

Unavailable

5

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.45

6

SPACER, SWINGING ARM

61251-28000

$13.36

7

COVER, DUST SEAL

61262-09200

$3.59

8

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

$1.55

9

THRUST WASHER

09160-12085

$2.60

10

SHAFT, PIVOT | J,K,L; TO 61211-2860

61211-28600

Unavailable

10

SHAFT, PIVOT | M This part replaces 61211-28001.

61211-28002

Unavailable

11

NUT, PIVOT | J,K,L; TO 09159-12102

09159-12101

Unavailable

11

NUT, PIVOT | M

09159-12102

$3.23

12

WASHER | J This part replaces 08322-11128.

08322-01127

$1.84

13

CASE, CHAIN | J,K,L

61310-28100

Unavailable

13

CASE, CHAIN | M This part replaces 61310-28000-126.

61310-28000-019

Unavailable

14

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

15

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.48

16

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

17

BOLT This part replaces 01112-06128.

01500-06127

$1.97

18

SHOCK ABSORBER ASSY, REAR | J,K; CHROME PLATED

62100-28600

Unavailable

18

SHOCK ABSORBER ASSY, REAR | L; CHROME PLATED This part replaces 62100-28601.

62100-28602

Unavailable

18

SHOCK ABSORBER ASSY, REAR | M; CHROME PLATED

62100-28602

Unavailable

19

NUT This part replaces 08313-11107.

08313-10107

$2.50

20

WASHER This part replaces 08322-11128.

08322-01127

$1.84

21

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

22

TORQUE LINK REA This part replaces 64311-28000.

64311-28000-019

$18.80

23

CLIP, TORQUE LINK | J,K

09384-06001

$1.49

24

CLIP | L,M This part replaces 09385-10001.

09385-10005

$1.56

25

BOLT, REAR BRAKE PEDAL

09111-08013

$3.04

26

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

27

NUT, TORQUE LINK

09140-08008

$1.49

28

BOLT, TORQUE LINK FRONT

09111-08015

$3.16

29

BUFFER,CHAIN TO This part replaces 61273-28000.

61273-28002

$11.02

30

CASE END, CHAIN | OPT

61331-30000

Unavailable

31

BOLT | OPT This part replaces 01112-06108.

01500-06107

$2.06

32

.NUT | OPT This part replaces 08311-11068.

08310-00067

$2.13

33

LOCK WASHER | OPT This part replaces 08321-21068.

08321-01067

$2.13

34

WASHER | OPT This part replaces 08322-21068.

08322-01067

$2.13
