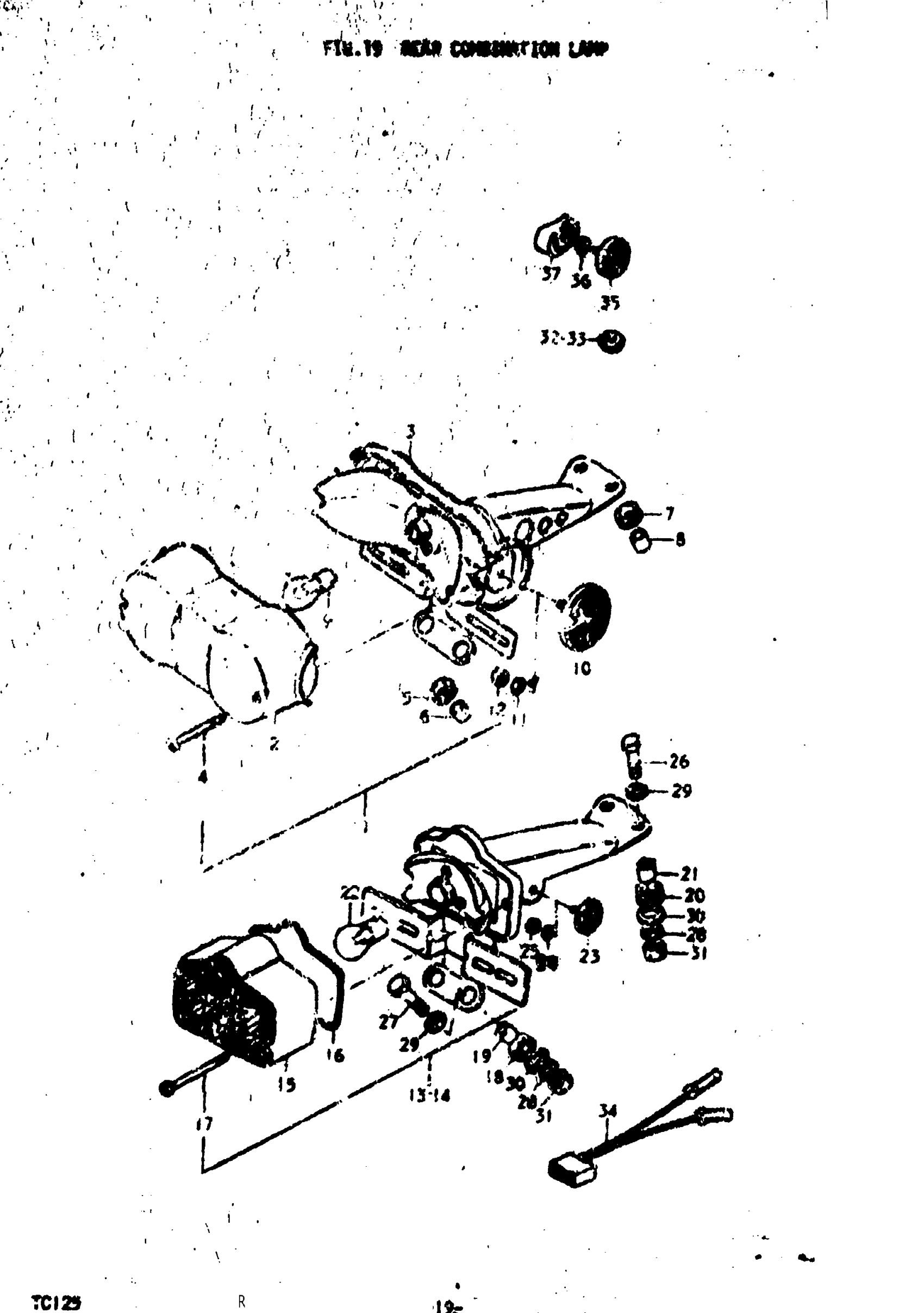

Suzuki TC125J (1975) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | J; FROM 35026-28820-999; Includes Item(s) 2 - 9

35710-28620

Unavailable

2

TAIL LAMP LENS This part replaces 35712-27690.

35712-27671

Unavailable

3

HOUSING, REAR COMBINATION LAM | JJ

35715-29690

Unavailable

4

SCREW | J This part replaces 02111-04508.

02112-0450A

$1.51

5

CUSHION | J

35765-22210

$3.84

6

SPACER | J This part replaces 35766-22210.

35766-37120

Unavailable

7

CUSHION, UPPER | J

35765-15010

Unavailable

8

SPACER | J

35765-15010

Unavailable

9

BULD | J; 6V,21/3EP, US/1154

09471-06009

$3.99

10

REFLEX REFLECTOR | J

35970-31610

Unavailable

11

LOCK WASHER | J This part replaces 08321-21058.

08321-0105A

$1.84

12

NUT | J This part replaces 08311-11058.

08310-00057

$1.84

13

LAMP ASSY, REAR COMBINATION | K; FROM 39000-28825-999

35710-28621

Unavailable

14

NO DESCRIPTION AVAILABLE | L,M; FROM 35000-25831-999; Includes Item(s) 15 - 22 This part replaces 35710-25681.

35710-25681-999

Unavailable

15

LENS RR COMB LA | K,L,M This part replaces 35712-27630.

35712-23011

$59.80

16

GASKET | K,L,M

35713-27630

$6.30

17

SCREW 4X55 | K,L,M This part replaces 02111-04558.

02112-04558

$1.65

18

CUSHION | K,L,M

35765-22210

$3.84

19

SPACER | K,L,M This part replaces 35766-22210.

35766-37120

Unavailable

20

CUSHION, UPPER | K,L,M

35765-15010

Unavailable

21

SPACER | K,L,M This part replaces 35766-15010.

35766-37110

$5.28

22

BULB | K,L,M; 6V,32/3CP

09471-06030

Unavailable

23

REFLEX REFLECTOR | K,L,M

35970-31610

Unavailable

24

LOCK WASHER | K,L,M This part replaces 08321-21058.

08321-0105A

$1.84

25

NUT | K,L,M This part replaces 08311-11058.

08310-00057

$1.84

26

BOLT This part replaces 01112-06208.

01500-06207

$2.28

27

BOLT This part replaces 01112-06258.

01500-06257

$1.97

28

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

29

WASHER | J,K This part replaces 08322-21068.

08322-01067

$2.13

30

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

31

.NUT This part replaces 08311-11068.

08310-00067

$2.13

32

GROMMET | J,K

09308-07805

Unavailable

32

GROMMET | L,M

09308-07005

Unavailable

33

GROMMET | L,M

09308-07802

Unavailable

34

NO DESCRIPTION AVAILABLE | J This part replaces 35738-28200.

35738-28201

Unavailable

35

REFLEX REFLECTOR FRONT | J,K,L,M This part replaces 35950-31010.

35950-49080

$17.24

36

WASHER | J,K; 6.5x20x1.6

09160-08028

Unavailable

36

SPACER | L,M; 6.5x20x1.2 This part replaces 09180-06027.

09180-06258

$1.81

37

SPACER, FRONT REFLECTOR

35995-29000

Unavailable
