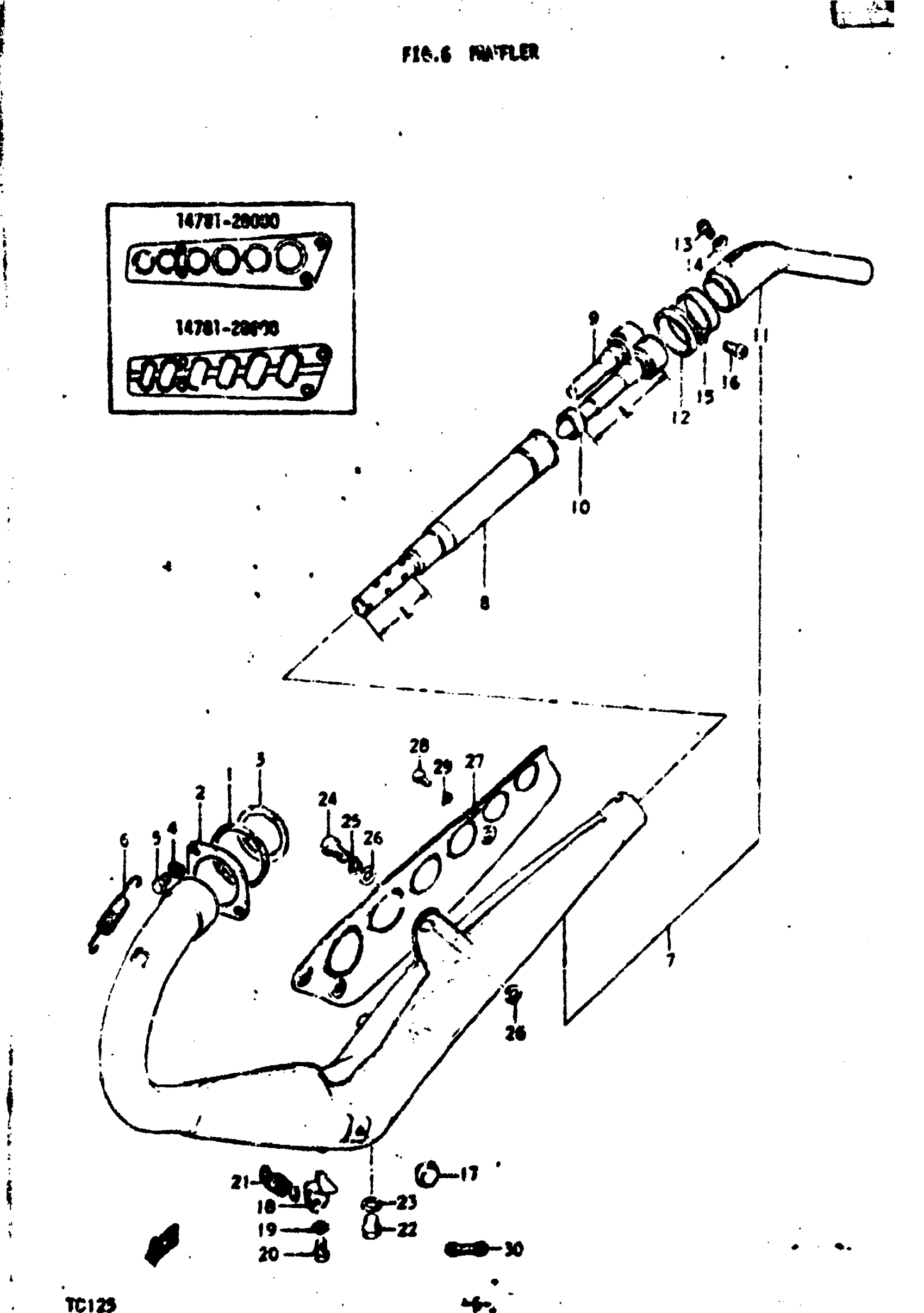

Suzuki TC125J (1975) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14181-28080

$10.11

2

CLAMP, EXHAUST PIPE

14182-28000

$16.49

3

CUSHION,EXH PIP This part replaces 14184-28010.

14184-28011

$4.62

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

BOLT This part replaces 01112-06258.

01500-06257

$1.97

6

SPRING, EXHAUST PIPE

09443-11002

$3.10

7

MUFFLER ASSY | J,K; TO 14301-28602

14301-28601

Unavailable

7

NO DESCRIPTION AVAILABLE | L,M; Includes Item(s) 8 - 16 This part replaces 14301-28602.

14301-28602-H01

Unavailable

8

ARRESTOR, SPARK | J,K; L:121

14810-28601

Unavailable

8

ARRESTOR, SPARK | L:80

14810-28602

Unavailable

9

TUBE, CLEAN OUT | J

14850-28600

Unavailable

10

TUBE, CLEAN OUT | J,K; L:115

14850-28601

Unavailable

10

TUBE, CLEAN OUT | L,M; L:156

14850-28640

Unavailable

11

PIPE, MUFFLTER TALL

14630-28001

Unavailable

12

GASKET, TALL PIPE

14634-28000

Unavailable

13

SCREW This part replaces 02111-05127.

02112-05127

$1.97

14

GASKET, BAFFLE PIPE

09168-06006

Unavailable

15

CLAMP This part replaces 09402-00223.

09402-52306

$4.91

16

SCREW This part replaces 02111-04207.

02112-0420A

$1.49

17

CUSHION, MUFFLER STOPPER

09321-10002

$2.22

18

BRACKET, STOPPER

14476-28000

Unavailable

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

20

BOLT This part replaces 01112-06108.

01500-06107

$2.06

21

SPRING, STOPPER

09443-14002

$2.12

22

BOLT(10X9) | 10x9 This part replaces 09100-10004.

09128-10002

$1.70

23

GASKET, DRAIN PLUG | 10x14.2x2

09168-10002

$2.13

24

BOLT, REAR This part replaces 01122-08208.

01500-08207

$2.53

25

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

26

WASHER This part replaces 08322-21088.

08322-01087

$2.13

27

COVER, MUFFLER | J This part replaces 14781-28000.

14781-28610

Unavailable

27

COVER, MUFFLER | K,L,M This part replaces 14781-28600.

14781-28610

Unavailable

28

SCREW This part replaces 02111-06087.

02112-06087

$1.49

29

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

30

CLAMP | L,M

09404-07704

Unavailable
