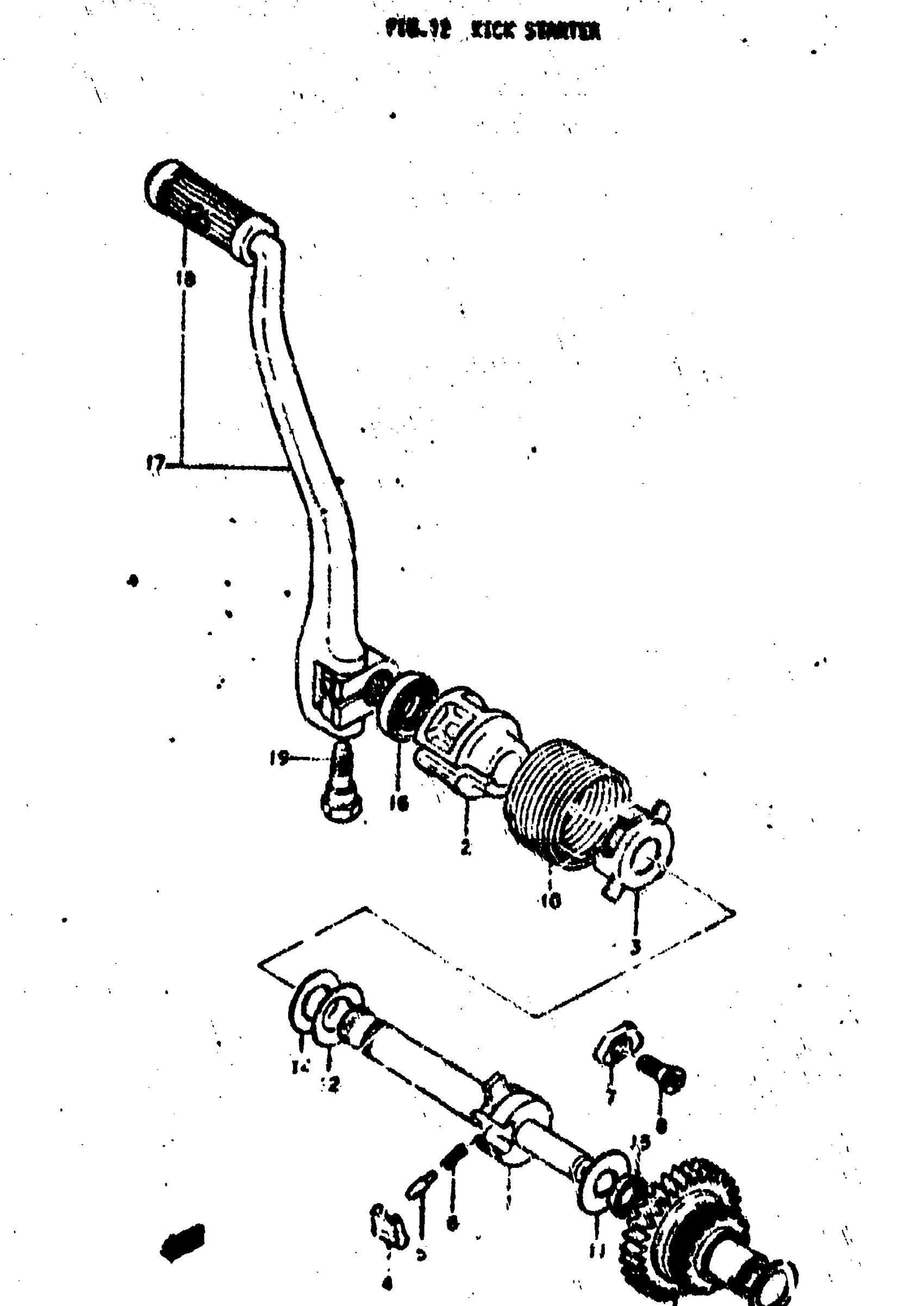

Suzuki TC125J (1975) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER | J,K,L

26211-25000

Unavailable

2

GUIDE, SPRING | J,K,L

26221-25030

Unavailable

3

HOLDER, SPRING | J,K,L

26222-25000

Unavailable

4

PAWL, KICK STRTER | J,K,L

26231-20000

$7.74

5

PIN, PAWL

09209-05011

$2.20

6

SPRING, PAWL

09440-04010

$1.54

7

LIFTER, PAWL

26232-01000

$6.38

8

SCREW, LIFTER

09139-06002

$2.38

9

GEAR, KICK STARTER DRIVE | J,K,L; NT:31/15, SEE NOTE TO 26240-28002 This part replaces 26240-28001.

26240-28002

Unavailable

9

GEAR, KICK STARTER DRIVE | M; NT:31/15 USED WITH 08211-12302

26240-28002

Unavailable

10

SPRING, KICK SHAFT

09448-48001

Unavailable

11

WASHER | J,M; 12x30x1.5

08211-12302

$2.16

12

WASHER, KICK STARTER SHAFT RH | 16x30.5x0.5

09160-16016

$2.04

13

SHIM (20X28X1) | J; 20x28x1 This part replaces 08211-20281.

09181-20167

$2.62

14

WASHER, KICK STARTER SHAFT

09164-16001

$2.12

15

OIL SEAL, DRIVE GEAR | J

09284-12006

Unavailable

16

SEAL,OIL(16X30X This part replaces 09285-16002.

09285-16005

$2.75

17

LEVER ASSY, KICK STARTER | J; TO 26300-28301 This part replaces 26300-28001.

26300-28303

Unavailable

17

LEVER ASSY, KICK STARTER | L; TO 26300-28302 This part replaces 26300-28301.

26300-28303

Unavailable

17

LEVER ASSY, KICK STARTER | M; Includes Item(s) 18 - 19 This part replaces 26300-28302.

26300-28303

Unavailable

18

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$3.25

19

BOLT, KICK STARTER LEVER

09119-08010

Unavailable
