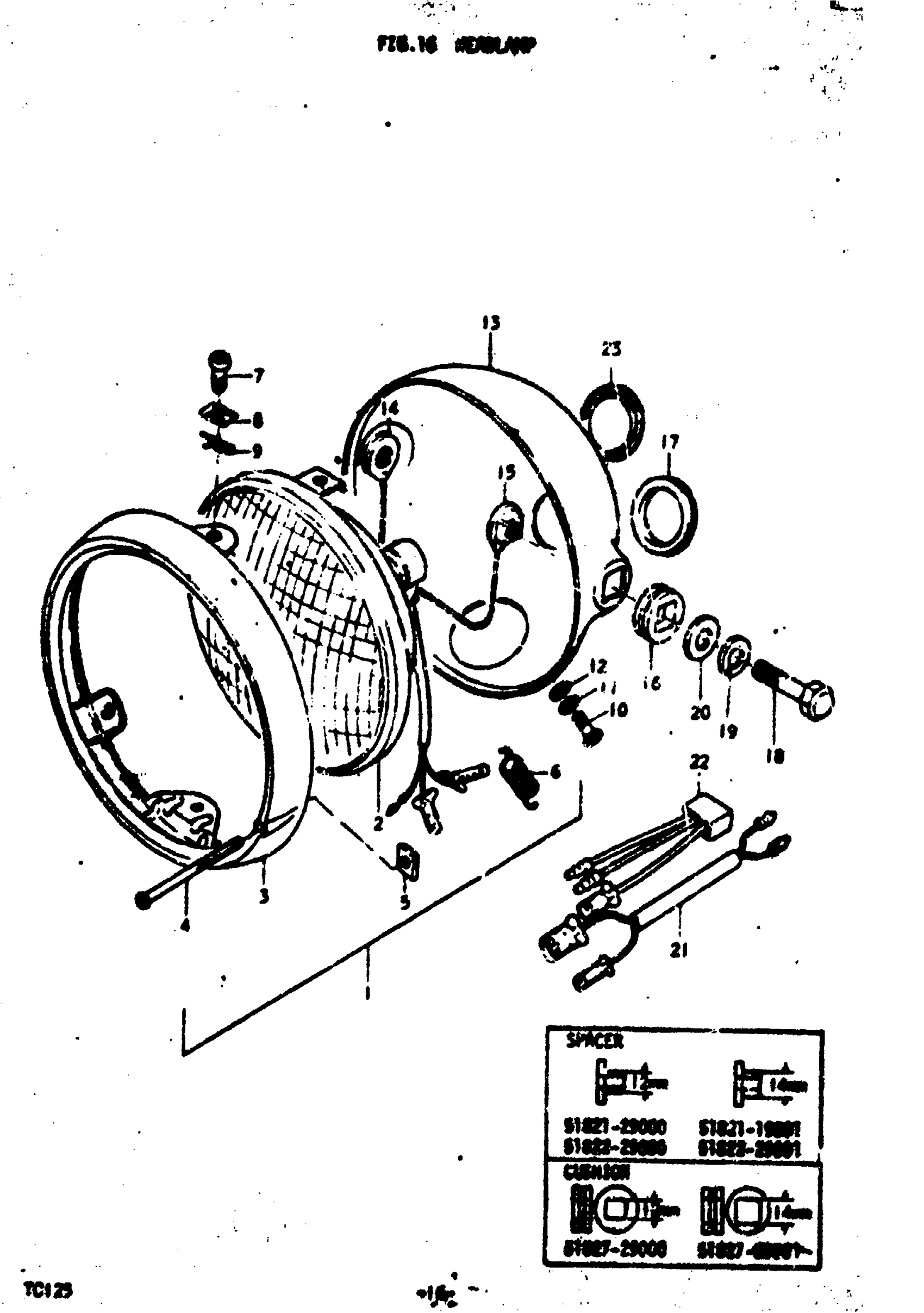

Suzuki TC125J (1975) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | K,L; TO 35100-25611; Includes Item(s) 2 - 9

35100-28610

Unavailable

2

UNIT, HEADLAMP | K,L; 6V,25/25W

35121-28610

Unavailable

3

RIM, HEADLAMP | K; TO 35111-28610

35111-27620

Unavailable

3

RIM, HEADLAMP | L

35111-28610

Unavailable

4

SCREW | K,L This part replaces 35151-27620.

35151-06020

Unavailable

5

NUT, HEADLAMP ADJUSTING | K,L

35155-01321

Unavailable

6

SPRING, HEADLAMP ADJUSTER | K,L

35154-05610

Unavailable

7

SCREW, UNIT HOLDER | K,L

35136-19610

Unavailable

8

NUT | K,L This part replaces 35135-12610.

35155-48510

$2.28

9

SPRING, UNIT CLAMP | K,L

35137-27620

Unavailable

10

SCREW | K,L This part replaces 02211-04128.

02112-0412A

$1.49

11

LOCK WASHER | K,L This part replaces 08321-21048.

08321-0104A

$1.84

12

WASHER | K,L This part replaces 08322-21048.

08322-01047

$1.86

13

HOUSING, HEADLAMP | K,L

51810-26600

Unavailable

14

SPACER, HEADLAMP HOUSING RH | K; TO 51821-29001

51821-29000

Unavailable

14

SPACER LH | L; SEE NOTE 1. This part replaces 51821-29001.

51822-29001

Unavailable

15

SPACER, HEADLAMP HOUSING LH | K; TO 51822-29001

51822-29000

Unavailable

15

SPACER, HEADLAMP HOUSING LH | L; SEE NOTE 1.

51822-29001

Unavailable

16

CUSHION, HEADLAMP HOUSING | K; TO 51827-29001

51827-29000

Unavailable

16

CUSHION, HEADLAMP HOUSING | L; SEE NOTE 2.

51827-29001

Unavailable

17

GROMMET | K,L

51845-31030

Unavailable

18

BOLT | K,L This part replaces 01122-08258.

01500-08257

$2.50

19

LOCK WASHER | K,L This part replaces 08321-21068.

08321-01067

$2.13

20

WASHER | K,L This part replaces 08322-11088.

08322-01087

$2.13

21

LEAD WIRE, HEADLAMP | K

36852-26000

Unavailable

22

LEAD WIRE, HEADLAMP | L

36852-27650

Unavailable

23

CAP | K

09250-40001

Unavailable
