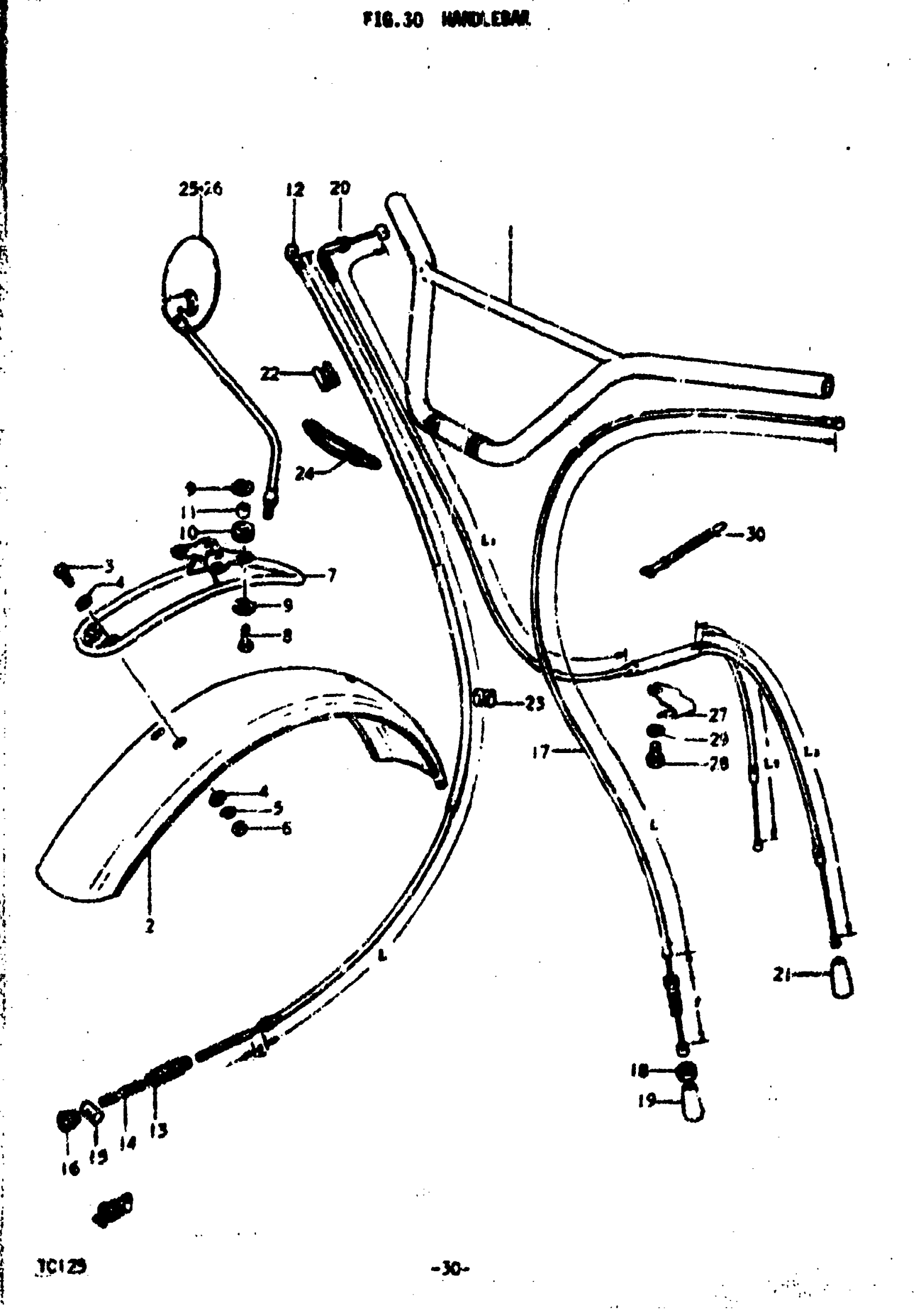

Suzuki TC125J (1975) HANDLEBAR Diagram

HANDLEBAR

56110-28000

Unavailable

FENDER, FRONT

53110-16400

Unavailable

BOLT This part replaces 09100-06026.

09100-06067

Unavailable

WASHER This part replaces 08322-21068.

08322-01067

$2.13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

.NUT This part replaces 08311-11068.

08310-00067

$2.13

BRACE, FRONT FENDER

53210-29000

Unavailable

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

SPACER, FENDER BRACE

09180-06038

$1.98

CABLE,FR BRAKE | L:1110, 2:66 This part replaces 58100-28000.

58100-28090

$21.09

DUST SEAL

09287-07001

$2.00

SPRING, CABLE

09440-06003

$2.44

PIN, CABLE LEVER

09209-10001

$1.49

NUT, CABLE ADJUSTER

09150-05101

$3.04

CABLE ASSY, CHTCH | L:1000, 2:171; Includes Item(s) 18 - 19

58200-28000

Unavailable

NUT This part replaces 08312-11088.

08310-00087

$2.13

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30

CABLE,THROTTLE | L1:806,L2:193,L3:414 This part replaces 58300-28000.

58300-28002

Unavailable

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30

CLAMP | L:25 This part replaces 09400-00001.

09400-22312

$3.16

CLIP, CABLE | L:10

09408-00002

$2.30

GUIDE, CABLE | J,K,M

58621-28000

Unavailable

MIRROR ASSY,RR | J,K,L; 8SCREW This part replaces 56500-19010.

56500-19013

Unavailable

MIRROR ASSY,RR | M; 10SCREW This part replaces 56500-31011.

56500-31014

$48.02

MIRROR ASSY,RR | J,K,L; 8SCREW This part replaces 56600-19010.

56600-19013

Unavailable

MIRROR ASSY,RR | M; 10SCREW This part replaces 56600-31011.

56600-31014

$48.02

CLAMP, THROTTLE CABLE

09403-09308

Unavailable

BOLT This part replaces 01112-06108.

01500-06107

$2.06

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

BAND, FRONT BRAKE | J

09407-12402

$3.04
