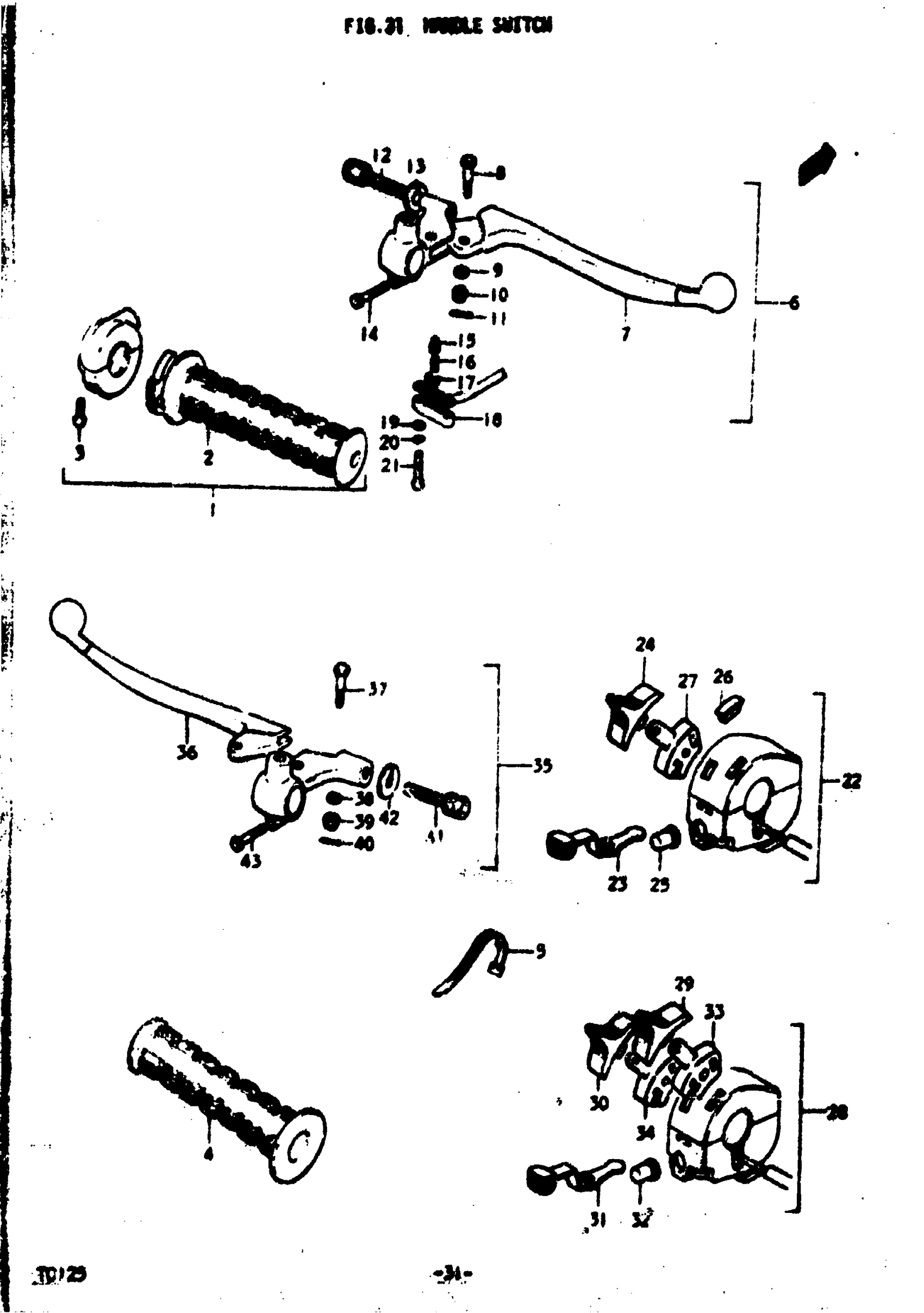

Suzuki TC125J (1975) HANDLE SWITCH Diagram

#

Description
Price

1

GRIP ASSY, THROTTLE | J,K,L

57100-28010

Unavailable

1

NO DESCRIPTION AVAILABLE | M; Includes Item(s) 2 - 3 This part replaces 57100-32600.

57100-39650

Unavailable

2

GRIP, THROTTLE

57110-28010

$34.76

3

SCREW This part replaces 02111-05207.

02112-05207

$1.97

4

GRIP, LH

57211-15110

Unavailable

5

BAND, HANDLE SWITCH HARNESS | JK,L,M

09407-12402

$3.04

6

LEVER ASSY, BRAKE | J,K; TO 57300-30701 This part replaces 57300-30011.

57300-30501

Unavailable

6

LEVER ASSY, BRAKE | L This part replaces 57300-30701.

57300-30501

Unavailable

6

LEVER ASSY, BRAKE | M; Includes Item(s) 7 - 21 This part replaces 57300-28012.

57300-28013

Unavailable

7

LEVER, BRAKE This part replaces 57420-33010.

57420-18602

Unavailable

8

BOLT This part replaces 57431-11010.

57431-11013

$6.31

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

NUT, PIVOT

57433-11010

$5.64

11

PIN This part replaces 04111-16158.

04111-1620A

$1.49

12

ADJUSTER, CABLE

57441-11010

$5.62

13

NUT, ADJUSTER

57442-11010

$2.79

14

BOLT | J,K,L; TO 01112-06208 This part replaces 57451-11010.

01500-06207

$2.28

14

BOLT | M This part replaces 01112-06208.

01500-06207

$2.28

15

HOLDER | M This part replaces 57461-18600.

57465-18601

$4.34

16

HOLDER | M This part replaces 57462-18600.

57465-18601

$4.34

17

HOLDER | M This part replaces 57463-18600.

57465-18601

$4.34

18

COVER | M

57481-33010

$5.84

19

WASHER | M This part replaces 08322-21038.

08322-01037

$1.93

20

WASHER,LOCK | M This part replaces 08321-21038.

09162-03001

$1.49

21

SCREW | M This part replaces 09125-03105.

09125-03105-XC0

$2.23

22

SWITCH ASSY, HANDLE LH | J,K; Includes Item(s) 23 - 27 This part replaces 57700-28610.

57700-28611

Unavailable

23

KNOB, SWITCH | J,K

57742-28050

Unavailable

24

KNOB, DIMMER SWITCH | J,K

57712-28050

Unavailable

25

BUTTON, HORN | J,K

57751-28050

Unavailable

26

CAP, HANDLE SWITCH | J,K

57715-28610

Unavailable

27

BLOCK, DIMMER SWITCH | J,K

57353-28050

Unavailable

28

SWITCH ASSY, LH | L; TO 57700-28631

57700-28630

Unavailable

28

SWITCH ASSY, LH | M; Includes Item(s) 29 - 34

57700-28631

Unavailable

29

KNOB, LIGHTING SWITCH | L,M

57712-28050

Unavailable

30

KNOB, DIMMER SWITCH | L,M

57713-28050

Unavailable

31

KNOB, TORN SIGNAL SWITCH | L,M

57742-28050

Unavailable

32

BUTTON, HORN | L,M

57751-28050

Unavailable

33

SLIDING BLOCK, LIGHTING SWITC | L,ML,M

57730-28630

Unavailable

34

SLIDING BLOCK, DIMMER SWITCH | L; TO 57530-28051

57530-28050

Unavailable

34

SLIDING BLOCK, DIMMER SWITCH | M

57530-28051

Unavailable

35

LEVER ASSY, CLUTCH | J,K,L; TO 57500-18012

57500-18610

Unavailable

35

LEVER ASSY, CLUTCH | M; Includes Item(s) 36 - 43 This part replaces 57500-26012.

57500-30501

Unavailable

36

LEVER, CLUTCH This part replaces 57620-31010.

57620-45010

Unavailable

37

BOLT This part replaces 57431-11010.

57431-11013

$6.31

38

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

39

NUT, PIVOT

57433-11010

$5.64

40

PIN This part replaces 04111-16158.

04111-1620A

$1.49

41

ADJUSTER, CABLE

57441-11010

$5.62

42

NUT, CABLE ADJUSTER

57442-11010

$2.79

43

BOLT | J,K,L; TO 01112-06208 This part replaces 57451-11010.

01500-06207

$2.28

43

BOLT | M This part replaces 01112-06208.

01500-06207

$2.28
