1975 Suzuki TC125J Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1975 Suzuki TC125J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

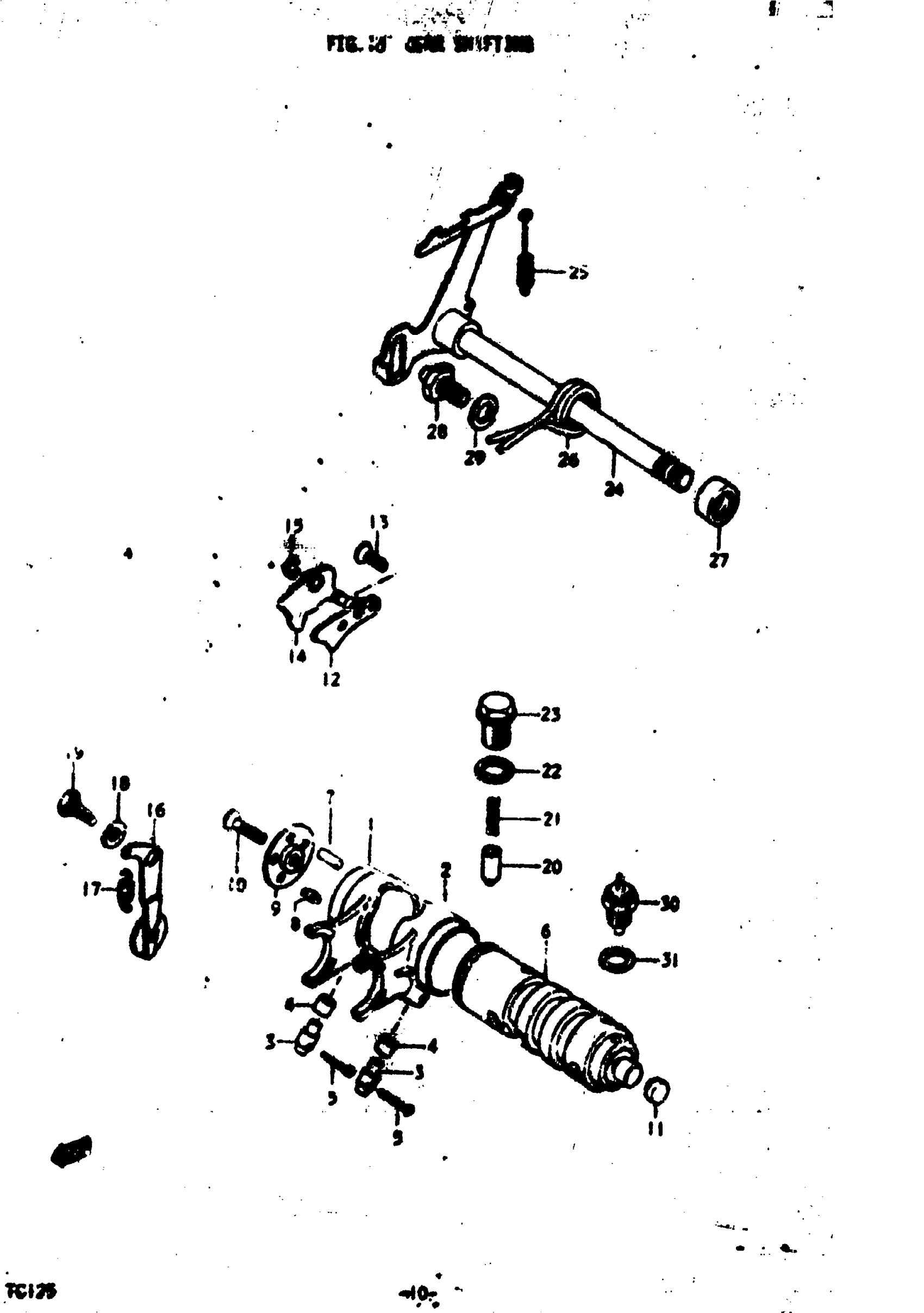

1975 Suzuki TC125J Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK A, GEAR SHIFTING

25211-28200

1
Out of stock

2

FORK B, GEAR SHIFTING

25221-28200

1
Out of stock

3

PIN, SHIFTING FORK

09209-10003

—
Out of stock

4

ROLLER | 6x9.8x6 This part replaces 09180-06004.

09180-06086

2
Out of stock

5

CITTER PIN This part replaces 04111-25208.

04111-2520A

2
Out of stock

6

CAN, GEAR SHIFTING

25310-28200

—
Out of stock

7

ROLLER (4X13.8)

09261-04002

4
Out of stock

8

PIN, SHIFTING CAM STOPPER | J,K,L

09209-04006

—
Out of stock

8

1

$2.77

In stock

9

REATINER, DRIVE PIN

25322-28030

1
Out of stock

10

SCREW This part replaces 02122-06208.

02122-0620A

1
Out of stock

11

PLUG, SHIFTING CAM

09243-12002

1
Out of stock

12

CAM GUIDE

25340-12101

1
Out of stock

13

SCREW This part replaces 02122-06168.

02122-06167

2
Out of stock

14

PAWL, CAM STOPPER This part replaces 25370-12100.

25370-12101

1
Out of stock

15

1

$1.95

In stock

15

1

$1.95

In stock

16

STOPPER, SHIFTING CAM A

25350-28000

—
Out of stock

17

SPRING,, STOPPER

09443-07014

1

$2.41

In stock

18

BOLT,6X35 | 6.5x16x2.3 This part replaces 09100-06022.

09117-06037-XC0

1
Out of stock

19

BOLT, STOPPER

09111-06003

1
Out of stock

20

STOPPER, SHIFTING CAM B

25331-18000

—
Out of stock

21

SPRING, STOPPER

09440-05018

1

$2.00

In stock

22

GASKET, STOPPER HOUSING

09160-14004

1
Out of stock

23

1

$7.41

In stock

24

NO DESCRIPTION AVAILABLE This part replaces 25510-28000.

25510-28001

1
Out of stock

25

SPRING, PAUL RETURN

09443-06008

1
Out of stock

26

SPRING, SHAFT RETURN

09444-26008

1

$5.57

In stock

27

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

28

STOPPER, SHIFTING CAM

25671-19000

1
Out of stock

29

1

$1.93

In stock

30

SWITCH, GEAR SHIFTING

37710-28000

1
Out of stock

31

GASKET, SWITCH

09168-12001

1
Out of stock
