1975 Suzuki TC125J Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1975 Suzuki TC125J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

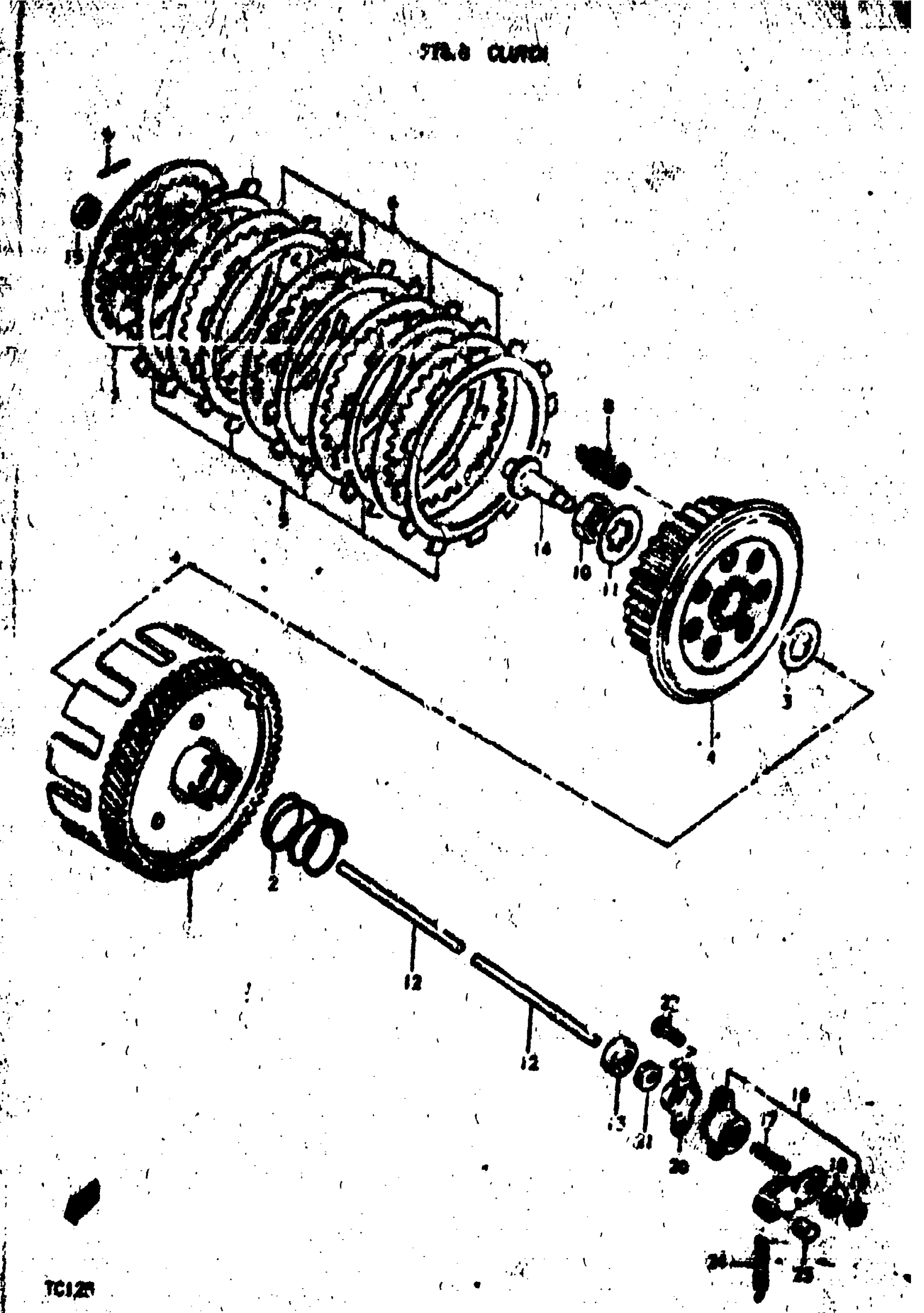

1975 Suzuki TC125J Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | NT:57 This part replaces 21200-28000.

21200-28002

1
Out of stock

2

SPRING, GEAR

09440-32001

1
Out of stock

3

THRUST WASHRE | 17x29x1.5

08211-17282

1
Out of stock

4

HUB, STEEVE

21410-28000

1
Out of stock

5

PLATE, CLUTCH DRIVE | J; TO 21441-28300 This part replaces 21441-10000.

21441-13A01

5
Out of stock

5

PLATE, CLUTCH DRIVE | K,L,M This part replaces 21441-28300.

21441-13A01

5
Out of stock

6

PLATE, CLUTCH DRIVEN (T:1.6) This part replaces 21451-28000.

21451-19A00

4
Out of stock

7

PLATE, PRESSURE

21460-28000

1
Out of stock

8

SPRING, CLUTCH

09443-12015

7
Out of stock

9

PIN, SPRING

09261-02001

7
Out of stock

10

NUT This part replaces 09140-16001.

09140-16005

1
Out of stock

11

WASHER, SLEEVE HUB | 14x33x0.8

09167-17002

1
Out of stock

12

ROD, CLUTCH PUSH LH This part replaces 23111-28000.

23111-34C00

2
Out of stock

13

OIL SEAL This part replaces 09285-06006.

09285-06021

1
Out of stock

14

PIECE, CLUTCH PUSH

23121-14000

1
Out of stock

15

OIL SEAL, PUSH PLACE | J,L,M

09284-10002

1
Out of stock

16

SCREW, ASSY, RELEASE | Includes Item(s) 17 - 19

23200-28001

1
Out of stock

17

SCREW, RELEASE ADJUSTING

09134-06006

—
Out of stock

18

WASHER, RELEASE SCREW | 6.5x16x1.2

09160-06019

1
Out of stock

19

.NUT This part replaces 08311-31068.

08310-00067

1
Out of stock

20

COVER, RELEASE SCREW

23241-23000

1
Out of stock

21

DUST SEAL, RELEASE SCREW

09281-05001

1
Out of stock

22

SCREW This part replaces 02112-05168.

02112-05167

2
Out of stock

23

PIECE, END

23222-07000

1
Out of stock

24

SPRING, RELEASE SCREW RETURN

09443-08001

1
Out of stock
