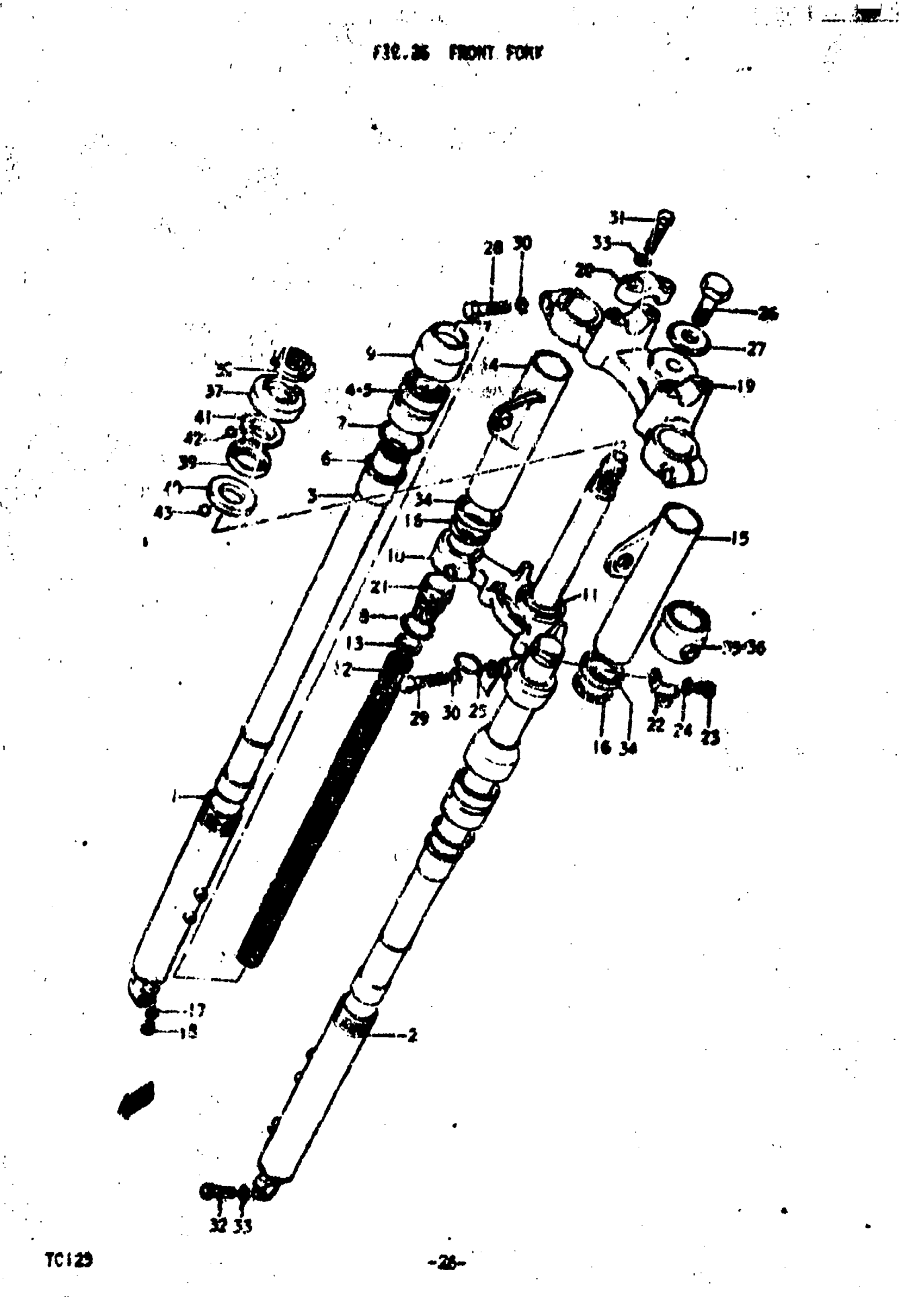

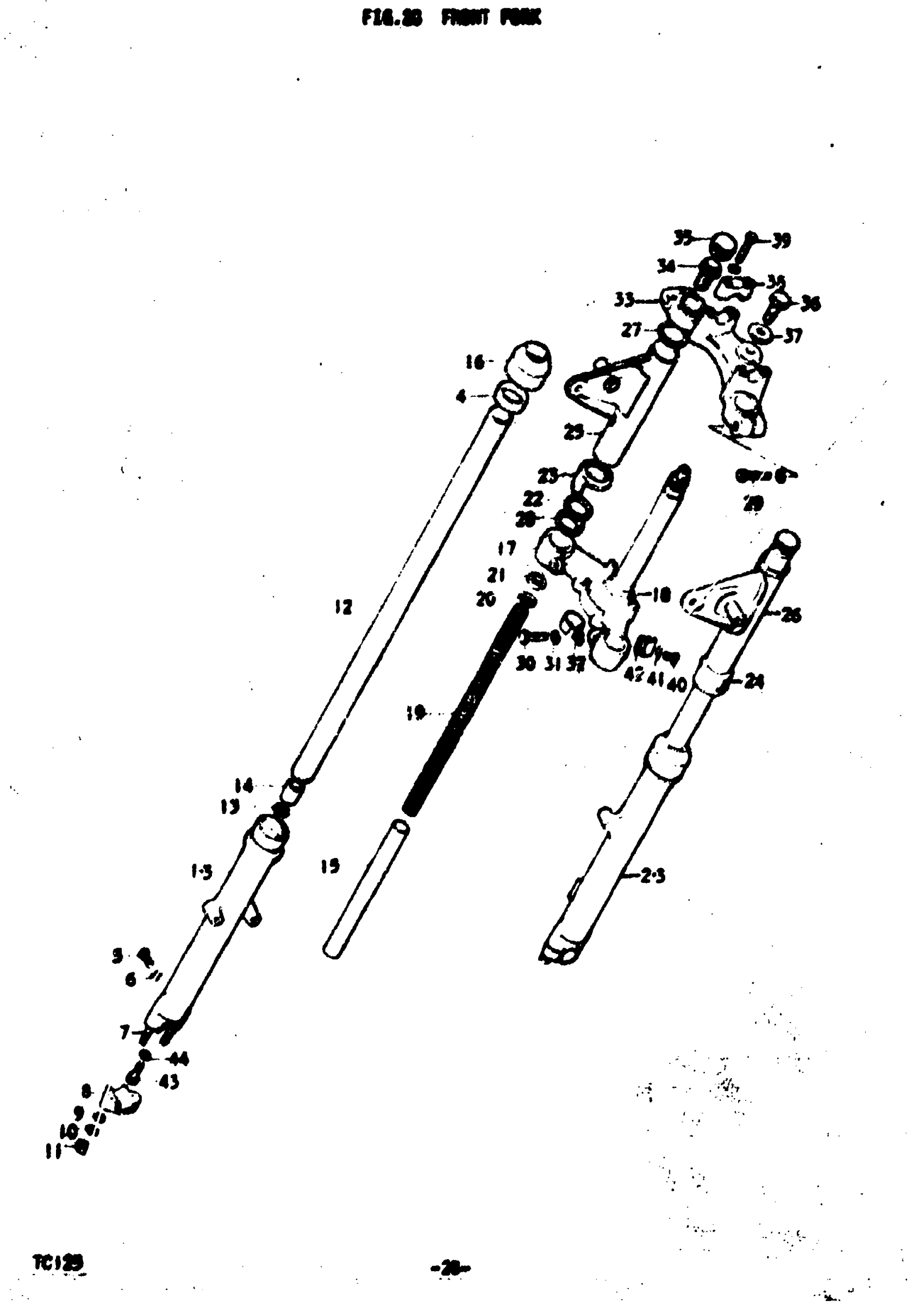

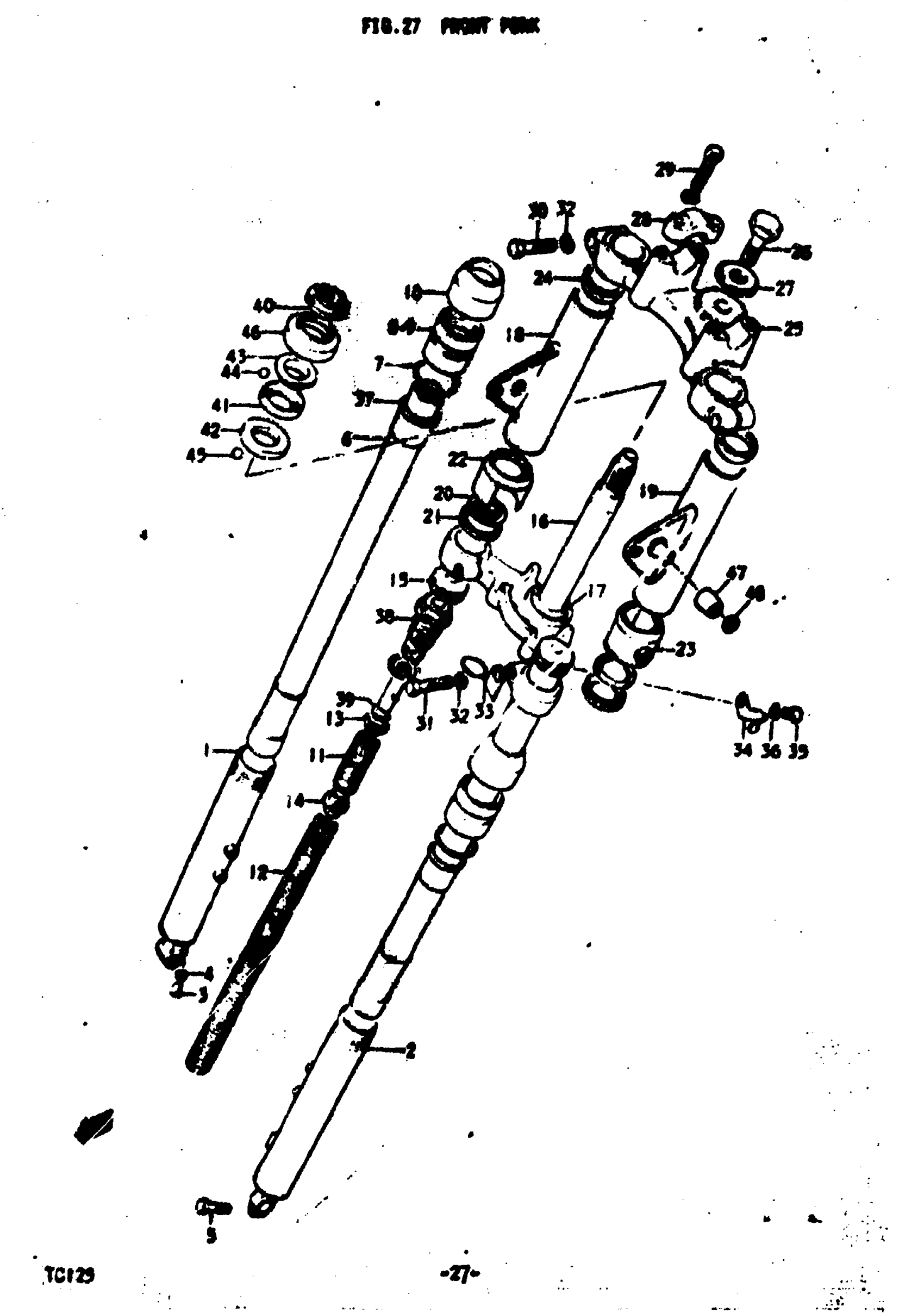

Suzuki TC125J (1975) FRONT FORK Diagram

#

Description
Price

0

FORK ASSY, FRONT | L

51100-28410-019

Unavailable

0

FORK ASSY, FRONT | M; Includes Item(s) 1 - 44

51100-28410-126

Unavailable

1

TUBE, OUTER RH | L

51130-38010

Unavailable

2

TUBE, OUTER LH

51140-36010

Unavailable

3

TUBE, OUTER

51140-38011

Unavailable

4

OIL SEAL | L,M

51153-08011

Unavailable

5

SCREW | L,M This part replaces 02111-04087.

02112-04087

$1.49

6

GASKET | L,M

51183-03010

$2.07

7

STUD BOLT (L:30) | M This part replaces 51137-31010.

09108-08142

$3.18

8

HOLDER, AXLE | L

51132-16510

Unavailable

8

HOLDER, AXLE | M

51132-16511

Unavailable

9

WASHER | L,M This part replaces 08322-21088.

08322-01087

$2.13

10

.LOCK WASHER | L,M This part replaces 08321-21088.

08321-01087

$2.13

11

NUT, CLUTCH RELEASE NO.1 | L,M This part replaces 09140-08005.

09140-08017

$2.27

12

TUBE, INNER | L,M

51111-28410

Unavailable

13

SMMP RING | L,M

51118-28310

Unavailable

14

PISTON | L,M

51112-28310

Unavailable

15

CYLINDER | L,M

51146-28310

Unavailable

16

DUST SEAL | L,M

51173-25010

$7.19

17

STEERING STEM | L

51410-28012

Unavailable

17

NO DESCRIPTION AVAILABLE | M This part replaces 51410-28013.

51410-36260

Unavailable

18

RACE, STEERING STEM | L,M

51621-33001

$16.25

19

SPRING | L,M

51171-28410

Unavailable

20

GUIDE, SPRING | L,M

51172-28010

Unavailable

21

WASHER | L,M

51186-29620

Unavailable

22

CUSHION | L

51553-07110

Unavailable

22

CUSHION, FORK COVER LOWER | M This part replaces 51553-25010.

51553-25210

$4.68

23

COVER, STEERING STEM RH | L,M

51554-28010

Unavailable

24

COVER, STEERING STEM LH | L,M

51557-28010

Unavailable

25

COVER, FORK RH | L; CHROME PLATED

51530-29621

Unavailable

25

NO DESCRIPTION AVAILABLE | M This part replaces 51530-29630-126.

51500-29820-126

Unavailable

26

COVER, FORK LH | L; CHROME PLATED

51540-29621

Unavailable

26

NO DESCRIPTION AVAILABLE | M This part replaces 51540-29630-126.

51500-29820-126

Unavailable

27

GUIDE, COVER | L,M

51551-20210

Unavailable

28

GUIDE, COVER | L,M

51558-20210

Unavailable

29

BOLT | L; TO 51451-15113

51451-15112

Unavailable

29

BOLT | M This part replaces 51451-15113.

01104-10388

$2.72

30

BOLT | L; TO 51451-28012

51451-28011

Unavailable

30

BOLT | M

51451-28012

Unavailable

31

LOCK WASHER | L,M This part replaces 08321-21128.

08321-01127

$2.06

32

CLIP | L,M

51455-36010

Unavailable

33

HEAD, STEERING STEM | L; TO 51311-28012-019

51311-28011-019

Unavailable

33

HEAD, STEERING STEM | M

51311-28012-019

Unavailable

34

CAP | L,M

51180-29010

Unavailable

35

CAP | L,M

51189-29010

Unavailable

36

BOLT | L,M This part replaces 51351-20010.

51351-29400

$31.22

37

WASHER | L,M

51356-22011

Unavailable

38

HOLDER, HANDLE | L,M

56211-27110-019

Unavailable

39

BOLT | L,M This part replaces 01221-08357.

01204-08357

$2.09

40

SCREW | L,M This part replaces 02112-06108.

02112-06107

$1.49

41

LOCK WASHER | L,M This part replaces 08321-21068.

08321-01067

$2.13

42

CLIP | L,M

51453-30011

Unavailable

43

BOLT | L,M

51147-36010

Unavailable

44

GASKET | L; TO 31148-34010

51148-36010

Unavailable

44

O RING | M This part replaces 51148-34010.

51148-36011

$3.56
