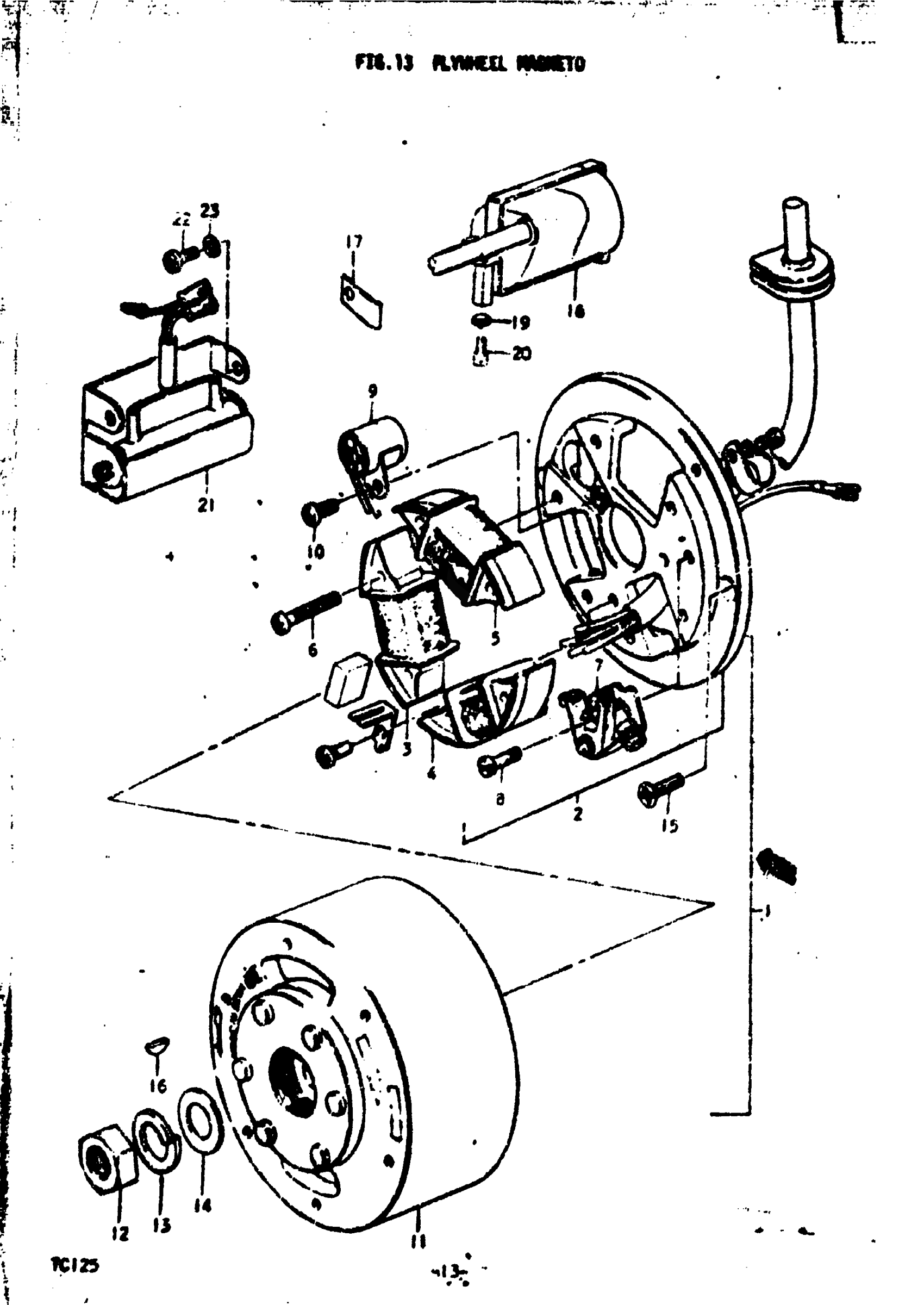

Suzuki TC125J (1975) FLYWHEEL MAGNETO Diagram

MAGNETO ASSY, FLYWHEEL | J; TO 32100-28611

32100-28610

Unavailable

STATOR ASSY | K This part replaces 32100-28611.

32101-28611

Unavailable

STATOR ASSY | L,M; Includes Item(s) 2 - 11 This part replaces 32100-28612.

32101-28611

Unavailable

STATOR ASSY

32101-28611

Unavailable

COIL, LIGHTING A | J; TO 32120-28611

32120-28610

Unavailable

COIL, LIGHTING A | K,L,M

32120-28611

Unavailable

COIL, LIGHTING B | J; TO 32130-28611

32130-28610

Unavailable

COIL, LIGHTING B | K,L,M

32130-28611

Unavailable

COIL, PRIMARY | J

32140-28010

Unavailable

COIL, PRIMARY | K,L,M

32140-28011

Unavailable

SCREW (4X30) This part replaces 02111-04308.

09125-04023

$2.30

CONTACT POINT This part replaces 32240-28010.

32240-43012

$38.45

SCREW This part replaces 02311-04108.

02112-0410A

$1.49

CONDENSER This part replaces 32341-12010.

32341-12011

Unavailable

SCREW This part replaces 02111-04107.

02112-04107

$1.55

MOTOR, FLYWHEEL | J; TO 32102-28011

32102-28010

Unavailable

ROTOR, FLYWHEEL | K

32102-28011

Unavailable

ROTOR, FLYWHEEL | L,M

32102-28612

Unavailable

NUT This part replaces 09140-10003.

09140-10041

$2.38

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

WASHER This part replaces 08322-11108.

08322-01107

$2.15

SCREW This part replaces 02122-06168.

02122-06167

$1.49

KEY

08341-31039

$1.89

CLAMP | J,K,L This part replaces 09403-00075.

09404-06039

$1.74

CLAMP | M This part replaces 09404-06401.

09404-06039

$1.74

IGNITION COIL A This part replaces 33410-22220.

33410-22221

Unavailable

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

BOLT, RUBBER STOP This part replaces 01111-05128.

01500-05127

$2.10

REGISTER ASSY, MAGNETO | K,L,M

36500-28610

Unavailable

SCREW | K,L,M This part replaces 02111-05068.

09125-05122

$2.06

LOCK WASHER | K,L,M This part replaces 08321-21058.

08321-0105A

$1.84
