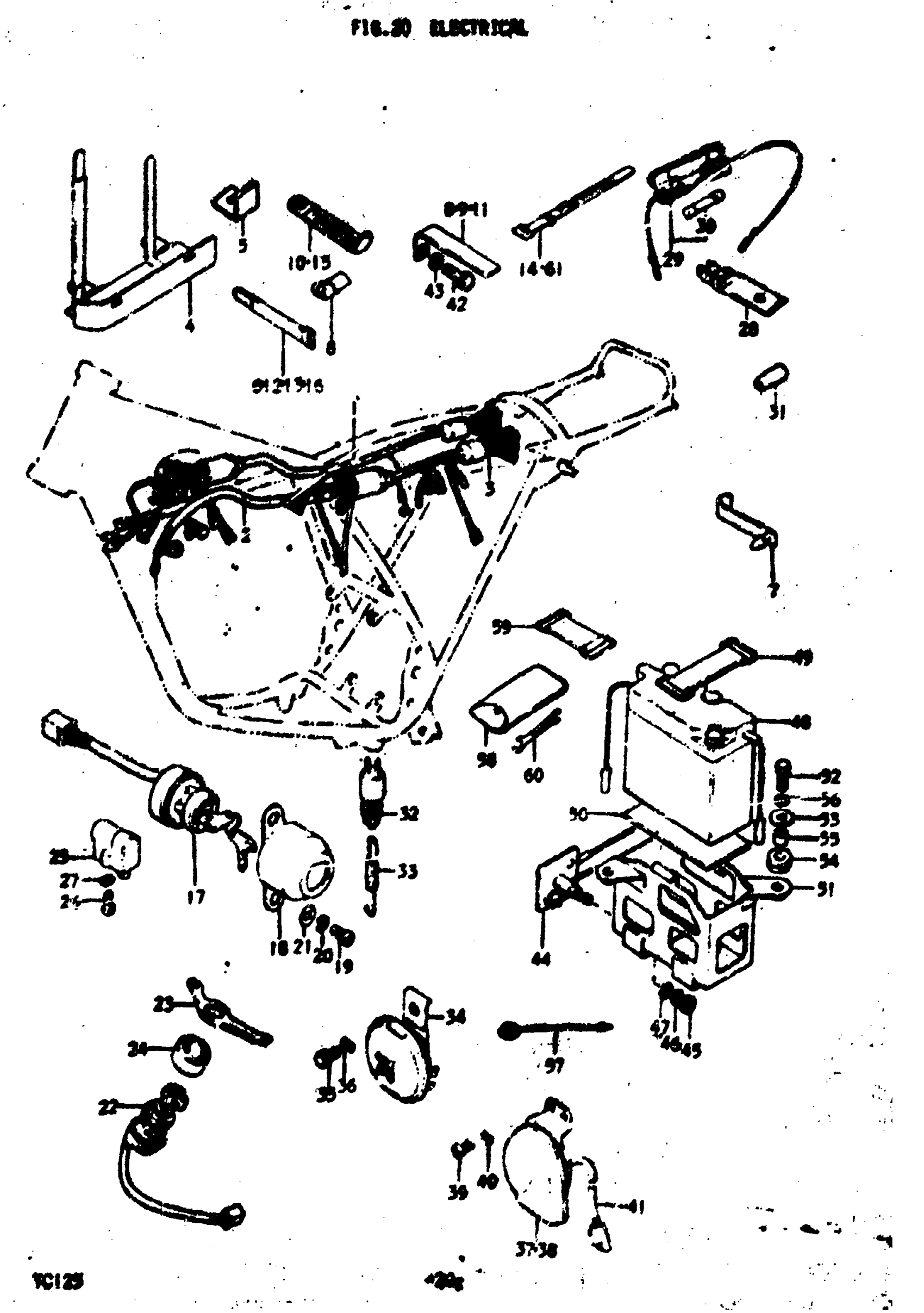

Suzuki TC125J (1975) ELECTRICAL Diagram

#

Description
Price

1

WIRING HARNESS | J

36610-28610

Unavailable

1

RELAY ASSY,TRN | K This part replaces 38610-28611.

38610-05X50

Unavailable

2

WIRING HARNESS (1) | L This part replaces 36610-25621.

36610-25626

Unavailable

2

WIRING HARNESS NO.1 | M

36610-25622

Unavailable

3

WIRING HARNESS NO.2 | L; TO 36620-28403M This part replaces 36620-28403.

36620-28405

Unavailable

4

BOX, HARNESS CONNECTOR | J

36670-28000

Unavailable

5

STAY, HARNESS CLAMP | J,K

36652-28000

Unavailable

6

CLAMP, WIRING HARNESS | K; L:21

09407-21301

Unavailable

7

BAND, HARNESS | J,K

33881-18400

Unavailable

8

CLAMP, HARNESS A | J,K; TO 09403-12304 This part replaces 09403-10305.

09403-12304

Unavailable

8

CLAMP, HARNESS A | L,M

09403-12304

Unavailable

9

CLAMP | J,K; L:100 This part replaces 09403-00069.

09404-06037

Unavailable

10

CLAMP(L:80) | L; L:80 TO 09404-05404 This part replaces 09404-06405.

09404-06036

$1.74

10

CLAMP(L:80) | M This part replaces 09404-06404.

09404-06036

$1.74

11

CLAMP, BOOT | J,K; L:60

09403-00058

Unavailable

12

CLAMP | J,K This part replaces 09407-09301.

09407-09303

$1.93

13

CLAMP, HARNESS D | J,K; TO 09407-11302

09407-09302

Unavailable

13

CLAMP | L,M This part replaces 09407-11302.

09407-18302

$2.28

14

CLAMP, HARNESS E | J,K,LM

09407-12402

$3.04

15

CLAMP | L,M; L:45 This part replaces 09404-06402.

09404-06039

$1.74

16

CLAMP(L:250) | L,M; L:25 This part replaces 09407-25301.

09407-25302

Unavailable

17

SWITCH ASSY, IGNLTION | J; TO 37110-28611

37710-28610

Unavailable

17

NO DESCRIPTION AVAILABLE | K This part replaces 37110-28611.

37110-28613

Unavailable

18

BRACKET, IGNITION SWITCH | J,K This part replaces 37115-30000.

37115-16401

Unavailable

19

SCREW | J,K This part replaces 02112-06128.

02112-06127

$1.84

20

LOCK WASHER | J,K This part replaces 08321-21068.

08321-01067

$2.13

21

WASHER | J This part replaces 08322-21068.

08322-01067

$2.13

22

SWITCH ASSY, IGNITION | L; TO 37110-25313

37110-25312

Unavailable

22

SWITCH ASSY, IGNITION | M This part replaces 37110-25313.

37110-25319

$97.62

23

BRACKET, IGNITION SWITCH | L,M This part replaces 37115-36000.

37115-36001

Unavailable

24

COVER, IGNITION SWITCH | L,M

37128-36000

Unavailable

25

LOCK ASSY, STEERING This part replaces 50000-25837.

51910-25311

$40.33

26

SCREW This part replaces 02111-05127.

02112-05127

$1.97

27

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

28

HOLDER, FUSE CASE | L,M

36791-28400

Unavailable

29

FUSE CASE ASSY | Includes Item(s) 30 This part replaces 36740-15010.

36740-15011

$9.38

30

FUSE | 15A

09481-15001

$2.06

31

BOOT | M

09287-10001

Unavailable

32

SWITCH ASSY, STOP LAMP

37610-53011

$30.75

33

SPRING, SWITCH | J,K; TO 09443-06012 This part replaces 09443-06020.

09443-06012

$3.16

33

SPRING, SWITCH | L,M

09443-06012

$3.16

34

NO DESCRIPTION AVAILABLE | J,K This part replaces 38500-28031.

38500-28032

Unavailable

35

BOLT | J,K This part replaces 01122-08128.

01500-08127

$2.62

36

.LOCK WASHER | J This part replaces 08321-21088.

08321-01087

$2.13

37

HORN | L; TO 30500-25331

38500-25330

Unavailable

38

HORN | L,M

38500-25331

Unavailable

39

SCREW | L,M This part replaces 02111-06128.

02112-06127

$1.84

40

LOCK WASHER | L,M This part replaces 08321-21068.

08321-01067

$2.13

41

LEAD WIRE, HORN | M

36870-25030

Unavailable

42

BOLT | J,K This part replaces 01112-06128.

01500-06127

$1.97

43

LOCK WASHER | J,K This part replaces 08321-21068.

08321-01067

$2.13

44

RECTIFIER | J,K; TO 32800-16421 This part replaces 32800-16420.

32800-16421

Unavailable

44

RECTIFIER | L,M

32800-16421

Unavailable

45

NUT This part replaces 08311-11058.

08310-00057

$1.84

46

LOCK WASHER | J,K This part replaces 08321-21058.

08321-0105A

$1.84

47

WASHER | J This part replaces 08322-21058.

08322-01057

$2.13

48

6N4B-2A BATTERY | 6V,4AH This part replaces 33610-03610.

33610-03611

$79.23

49

CAND, BATTERY

09462-00033

$3.20

50

CUSHION, BATTERY | J

33652-20000

Unavailable

50

CUSHION, REAR FENDER REAR | K,L,M This part replaces 33652-28000.

33651-37000

$4.48

51

HOLDER, BATTERY

41540-28001

Unavailable

52

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

53

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

54

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

55

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.48

56

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

57

LEAD WIRE, BATTERY (-) | L,M

36862-27690

$5.20

58

TOOL ASSY This part replaces 09800-00108.

09800-21028

$33.02

59

HAND, TOOL

09462-00017

$3.23

60

WRENCH, CONTACT POINT | J,K

09930-20111

Unavailable

61

CLAMP, REAR TURN SIGNAL LAMP | L; TO 09407-11302

09407-09302

Unavailable
