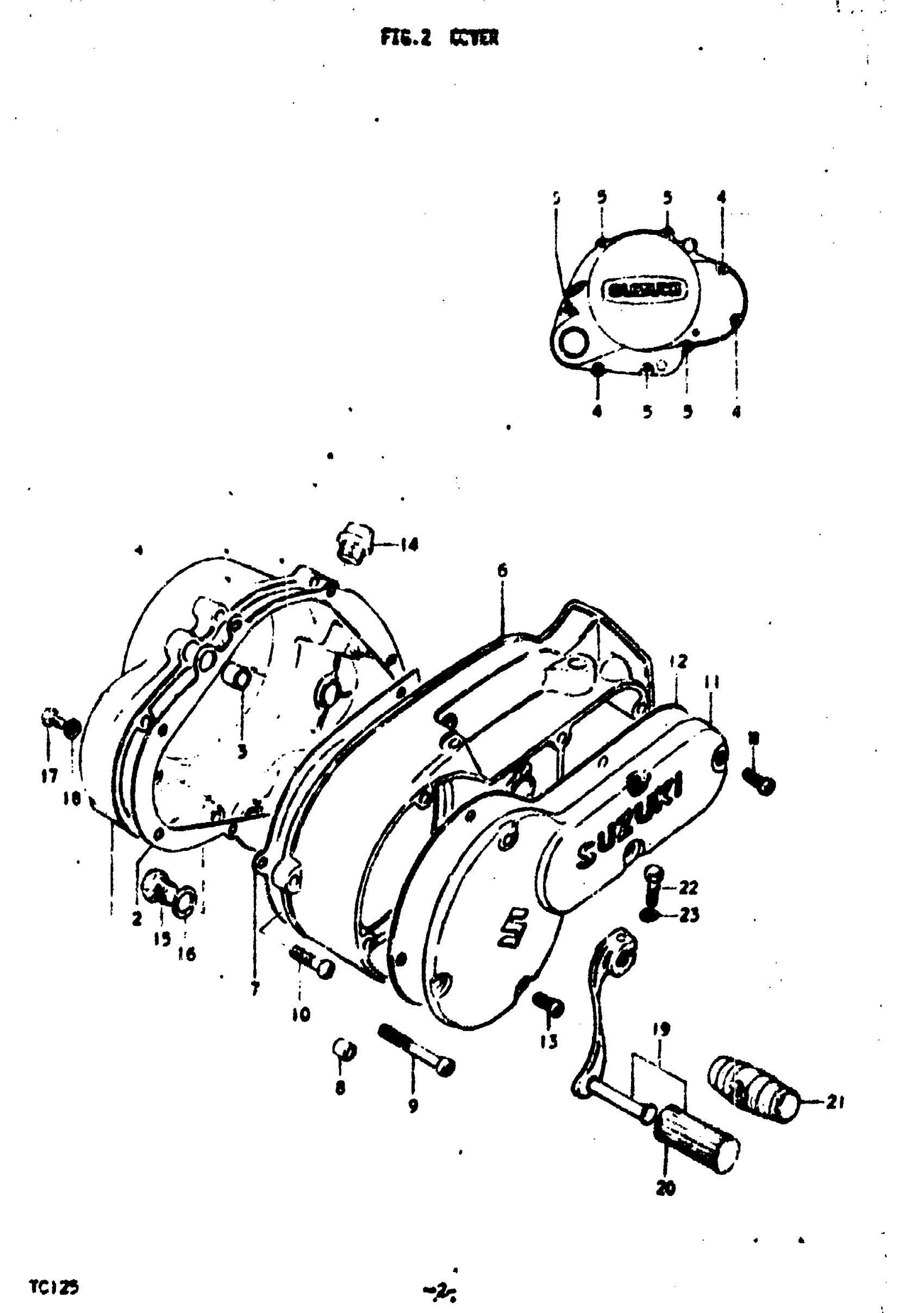

Suzuki TC125J (1975) COVER Diagram

COVER, CLUTCH | J,K; TO 11300-28850

11341-28001

Unavailable

COVER, CLUTCH | L

11300-28850

Unavailable

COVER, CLUTCH | M

11341-28003

Unavailable

GASKET,CLUTCH C This part replaces 11482-28000.

11482-28001

Unavailable

PIN This part replaces 09206-13001.

04211-13189

$2.19

SCREW This part replaces 02112-06308.

02112-06307

$1.97

SCREW This part replaces 02112-06258.

02112-06257

$1.78

COVER, MAGNATO | J,K,L; LUSTROUS This part replaces 11351-28200.

11351-28201

Unavailable

COVER, MAGNATO | L,M; WITHOUT LUSTER

11351-28201

Unavailable

GASKET, MAGNATO COVER

11483-28000

Unavailable

DOWEL PIN | J,K,L

04210-09129

Unavailable

SCREW This part replaces 02112-06258.

02112-06257

$1.78

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

CAP, MAGNATO NAPACTION

11381-28200

Unavailable

GASKET, INNPECION CAP

11491-28200

Unavailable

SCREW This part replaces 02112-05168.

02112-05167

$1.97

PLUG SET | J,K,L; SCREW TYPE This part replaces 09259-20003.

09200-20811

$4.02

PLUG | M This part replaces 09259-19002.

09259-19005

$2.98

PLUG (MAGNETO) | J,K This part replaces 09247-14001.

09247-14002

$5.24

GASKET, DRAIN PLUG | J,K; 15.7x19.5x2

09168-14004

$1.83

PLUG, OIL LEVEL

09129-06004

Unavailable

GASKET, OIL LEVEL PLUG | 6.2x11x1

09168-06001

$1.49

LEVER, GEAR SHI | J,K; TO 25600-25101 This part replaces 25600-25100.

25600-39101

Unavailable

LEVER, GEAR SHI | L This part replaces 25600-25101.

25600-39101

Unavailable

LEVER, GEAR SHI | M; Includes Item(s) 20 - 21 This part replaces 25600-25103.

25600-39101

Unavailable

.RUBBER,GEAR SHIFT PEDAL | J,K,L This part replaces 25652-03201.

25652-16510

$3.74

.RUBBER,GEAR SHIFT PEDAL | M This part replaces 25652-16500.

25652-16510

$3.74

BOLT This part replaces 01112-06208.

01500-06207

$2.28

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
