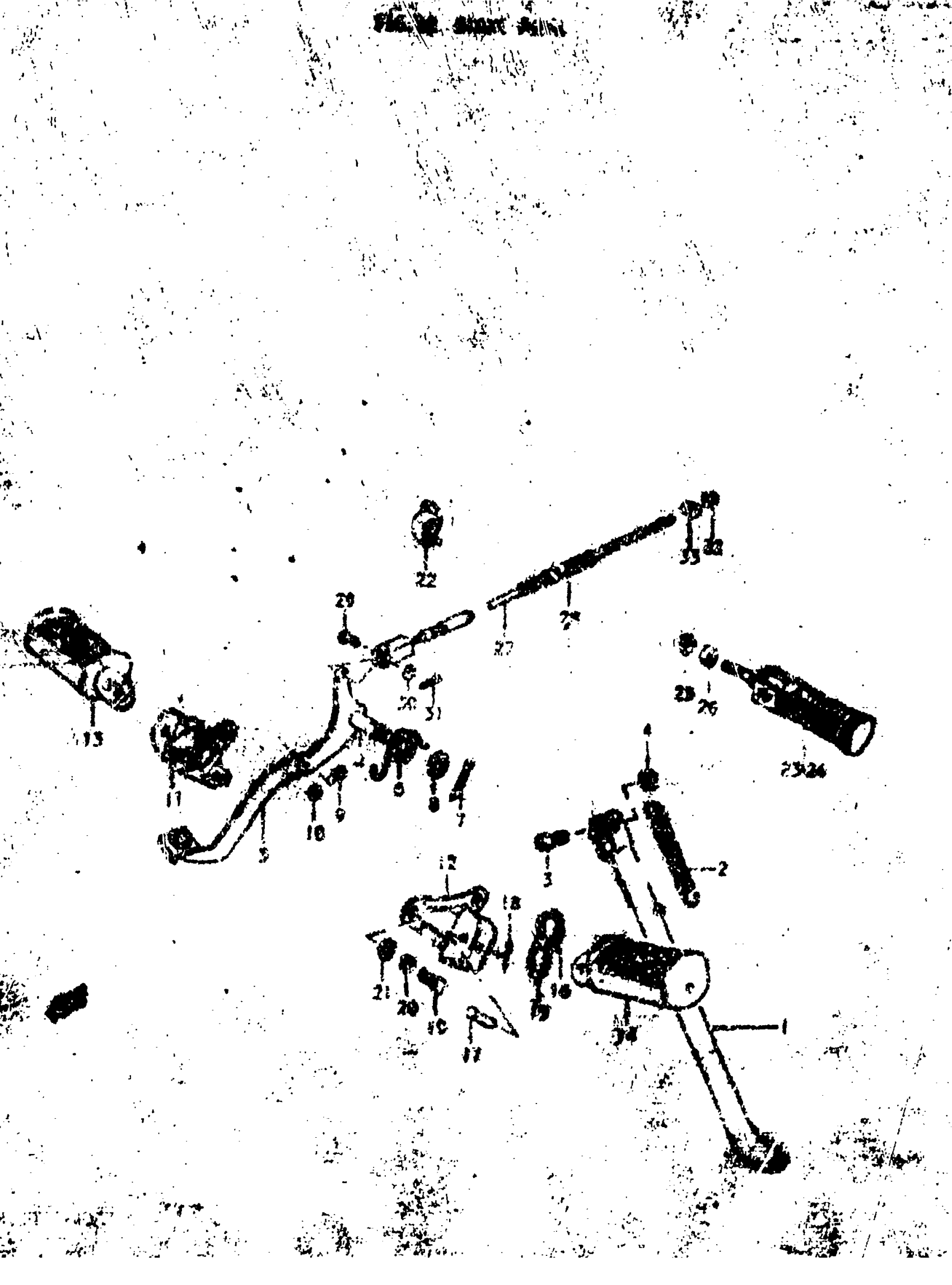

Suzuki TC125J (1975) BRAKE PEDAL Diagram

#

Description
Price

1

STAND,PIPE

42310-28000

Unavailable

2

SPRING This part replaces 09443-14005.

09443-14017

$3.04

3

BOLT, PROP STAND

09100-10067

$2.61

4

NUT This part replaces 08312-31108.

08310-00107

$2.19

5

PEDAL, BRAKE

43110-28000

Unavailable

6

SPRING This part replaces 09448-32004.

09448-32004-XC0

Unavailable

7

COTTER PIN

04111-36390

Unavailable

8

WASHER BRAKE PEDAL

09160-15002

$1.91

9

BOLT This part replaces 01112-06208.

01500-06207

$2.28

10

.NUT This part replaces 08311-31068.

08310-00067

$2.13

11

FOOTRESTAR, FRONT RM

43510-28000

Unavailable

12

FOOTCHESTER, FRONT LM

43520-28000

Unavailable

13

RUBBER, RH | J,K; TO 43550-25300 This part replaces 43550-25000.

43550-25301

Unavailable

13

RUBBER, RH | L; TO 43550-25300

43550-25300

Unavailable

13

RUBBER, RH | M

43550-25301

Unavailable

14

RUBBER, LH | J,K; TO 43560-25309 This part replaces 43560-25000.

43560-25301

Unavailable

14

RUBBER, LH | L; TO 43560-25301

43560-25300

Unavailable

14

RUBBER, LH | M

43560-25301

Unavailable

15

WASHER | J,K; CIRCLE SHAPED This part replaces 09160-22002.

09160-22033

$3.89

16

WASHER, RUBBER | L,M; SQUARE SHAPED

43581-25300

Unavailable

17

PIN, RUBBER

09200-08002

$2.05

18

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

19

PLUG, DRAIN This part replaces 01122-08168.

01500-0816B

$2.50

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

WASHER This part replaces 08322-11088.

08322-01087

$2.13

22

PLATE, KICK LEVER STOPPER

43520-28000

Unavailable

23

FOOTRESTASSY, RH

43600-28000

Unavailable

24

FOOTREST ASSY,P | J,K,L This part replaces 43600-03001.

43600-09D00

$27.30

24

FOOTREST ASSY, LH | M

43600-36200

Unavailable

25

LOCK WASHER | M This part replaces 08321-21128.

08321-01127

$2.06

26

LOCK WASHER | M This part replaces 08321-21128.

08321-01127

$2.06

27

CABLE ASSY, REAR BRAKE | J,K; TO 58510-28000 This part replaces 58510-28300.

58510-28000

Unavailable

27

CABLE ASSY, REAR BRAKE | L,M; Includes Item(s) 28

58510-28000

Unavailable

28

BUSY SEAL

09267-05001

Unavailable

29

PIN, REER BRAKE CABLE

09200-05001

$1.65

30

WASHER This part replaces 08322-21068.

08322-01067

$2.13

31

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

32

.NUT This part replaces 09150-06001.

09150-06010

$3.10

33

PIN, CABLE LEVER

09209-11002

$2.19
