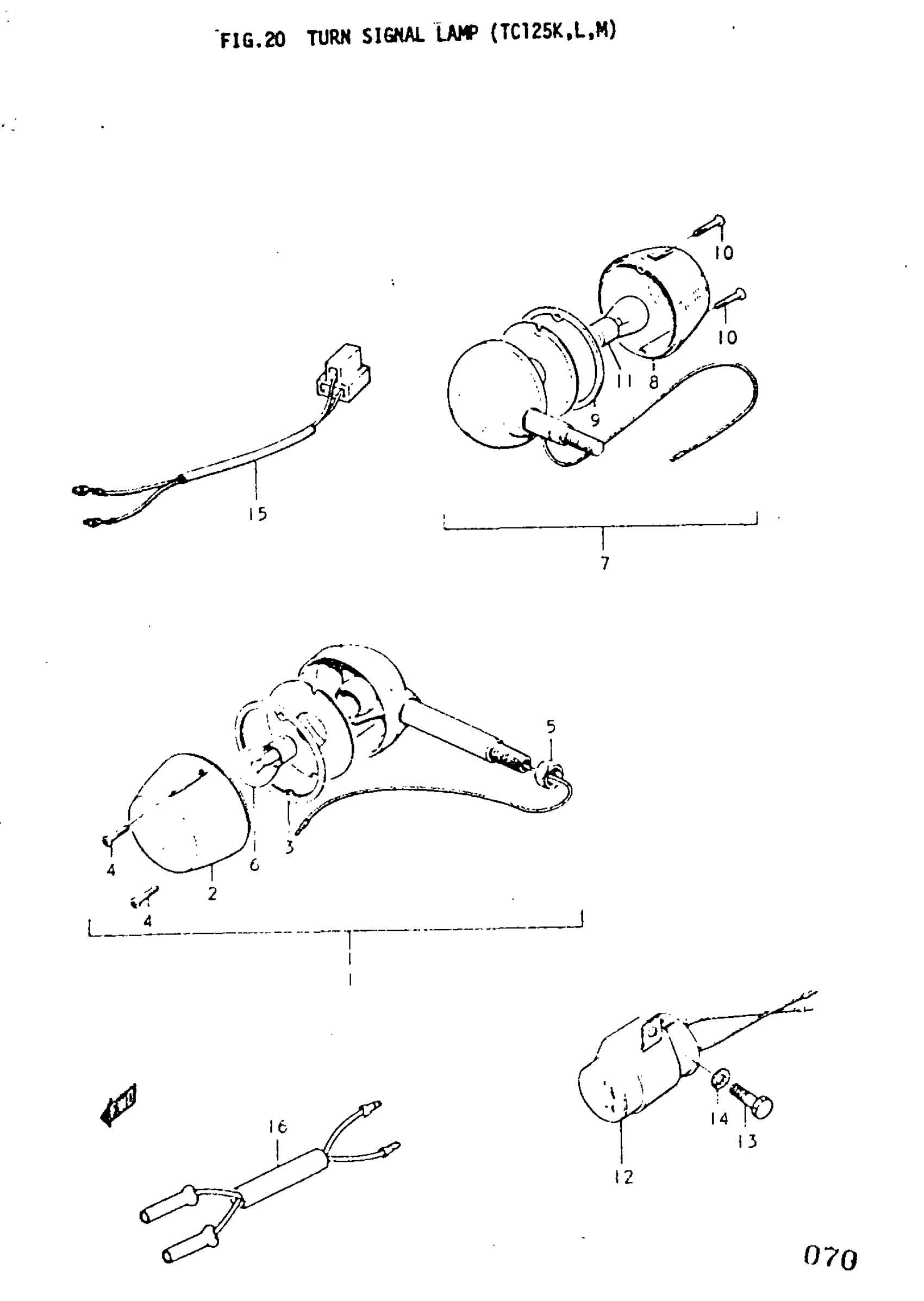

Suzuki TC125 (1977) TURN SIGNAL LAMP (TC125K Diagram

#

Description
Price

1

LAMP ASSY, TURN SIGNAL FRONT | FROM 35601-27630-999; Includes Item(s) 2 - 6 This part replaces 35601-27630.

35601-27630-999

Unavailable

2

LENS

35612-12611

$12.50

3

GASKET

35613-03610

$13.34

4

SCREW This part replaces 02133-03167.

02132-03167

$1.49

5

NUT This part replaces 08312-32108.

08310-00107

$2.19

6

BULB | 6V, 21CP

09471-06011

Unavailable

7

LAMP ASSY, TURN SIGNAL REAR | K,L; TO 35603-28621

35603-28620-999

Unavailable

7

LMAP ASSY, TURN SIGNAL REAR | M; FROM 35603-28621; Includes Item(s) 8 - 11

35603-28622

Unavailable

8

LENS | K,L; COLOR : RED

35652-22610

Unavailable

8

LENS | M; COLOR : UMBER

35612-12611

$12.50

9

GASKET

35613-03610

$13.34

10

SCREW This part replaces 02133-03167.

02132-03167

$1.49

11

BULB | 6V, 21CP

09471-06011

Unavailable

12

RELAY ASSY,TRN | FROM 38610-28610 This part replaces 38610-28611.

38610-05X50

Unavailable

13

BOLT | L,M This part replaces 01112-06128.

01500-06127

$1.97

14

LOCK WASHER | L,M This part replaces 08321-21068.

08321-01067

$2.13

15

LEAD WIRE, TURN SIGNAL | M

36852-28400

Unavailable

16

LEAD WIRE, FRONT TURN SIGNAL | K

36853-26000

Unavailable
