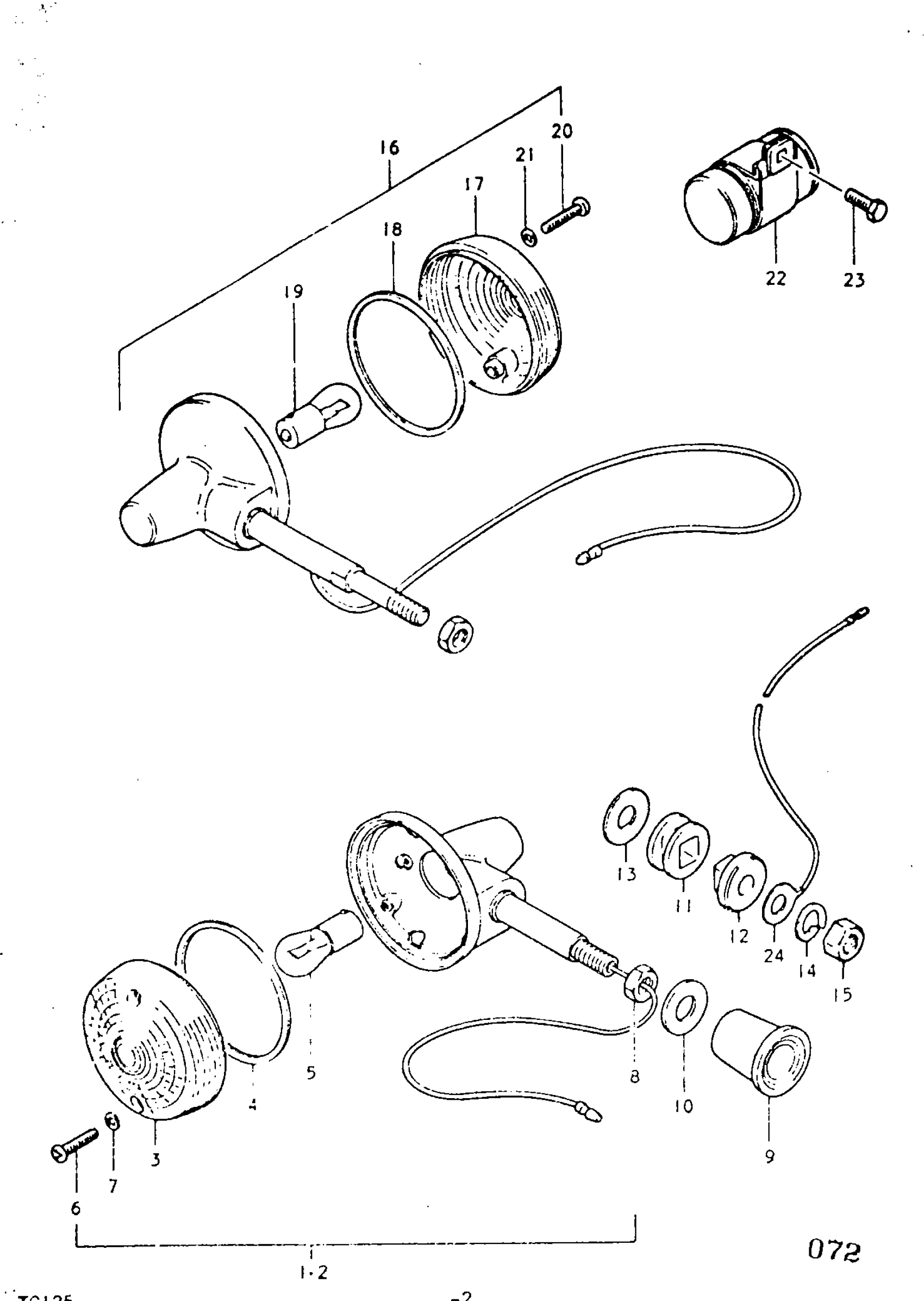

Suzuki TC125 (1977) TURN SIGNAL LAMP (TC125A Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A This part replaces 35601-28620.

35601-29620-999

Unavailable

2

LAMP ASSY,FR TR | B; Includes Item(s) 3 - 8 This part replaces 35601-29630.

35601-39370-999

Unavailable

3

LENS

35612-28620

$8.98

4

GASKET

35612-28620

$8.98

5

BULB | 6V, 21CP

09471-06011

Unavailable

6

SCREW

02111-04258

Unavailable

7

GASKET

35627-43010

$2.28

8

NUT | A This part replaces 08312-32108.

08310-00107

$2.19

9

COVER | A

35698-28000

Unavailable

10

WASHER | A This part replaces 08322-21108.

08322-01107

$2.15

11

RR TURN SIG CUS | BB This part replaces 35690-32200.

35690-32201

$6.37

12

SPACER, FRONT TURN SIGNAL LAMP | B

35695-32200

Unavailable

13

WASHER, UPPER, OUTER | B This part replaces 09160-10006.

09160-10501

$2.33

14

LOCK WASHER | B This part replaces 08321-21108.

08321-01107

$1.84

15

NUT | B This part replaces 08312-12108.

08310-00107

$2.19

16

NO DESCRIPTION AVAILABLE | Includes Item(s) 17 - 21 This part replaces 35603-28630.

35603-28630-999

Unavailable

17

LENS

35612-28620

$8.98

18

GASKET

35613-28620

$4.55

19

BULB | 6V, 21CP

09471-06011

Unavailable

20

SCREW

02111-04258

Unavailable

21

GASKET

35627-43010

$2.28

22

RELAY, TURN SIGNAL

38610-25610

Unavailable

23

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

24

LEAD WIRE, FRONT GROUND | B

36660-33000

$4.52
