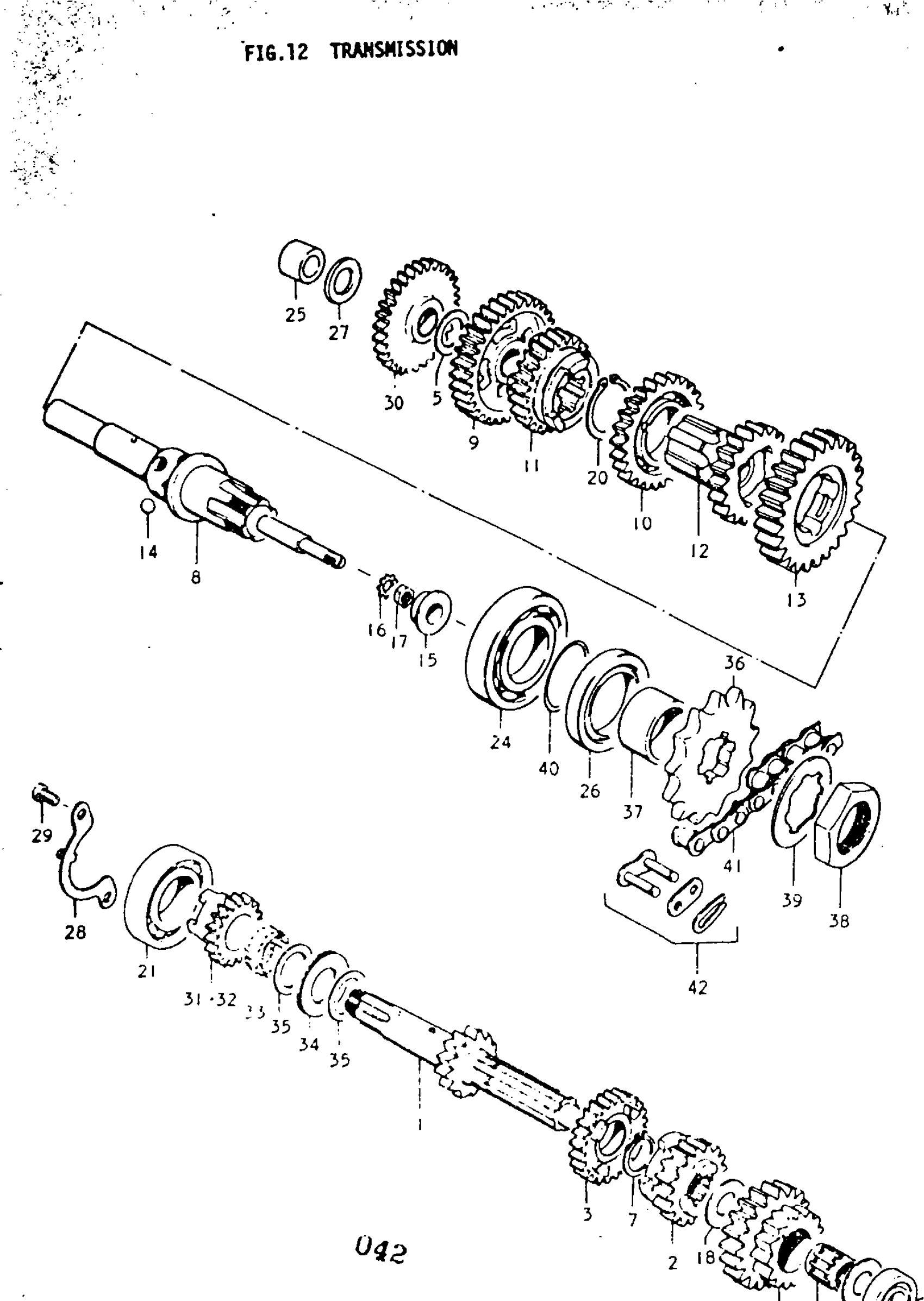

Suzuki TC125 (1977) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT | K,L; SEE NOTE # 1 TO 24121-28201

24121-28200

Unavailable

1

COUNTERSHAFT | M,A,B; NT:13

24121-28201

Unavailable

2

GEAR, 2ND DRIVE | NT:16

24221-28200

Unavailable

3

GEAR, 3RD DRIVE | NT:19

24231-28200

Unavailable

4

GEAR, 4TH DRIVE | NT:14

24241-28200

Unavailable

5

SHIM, CAM CHAIN IDLER,T:1.0 | 15x24x1 This part replaces 08211-15241.

09181-15166

$2.85

6

BEARING, 4TH DRIVE GEAR

09263-15010

Unavailable

7

CIRCLIP This part replaces 09380-20003.

09380-20007

$2.43

8

DRIVESHAFT

24130-28200

Unavailable

9

GEAR, 1ST DRIVEN | NT:32

24310-28200

Unavailable

10

GEAR, 2DN DRIVEN | NT:25

24321-28200

Unavailable

11

GEAR, 3RD DRIVEN | NT:21

24331-28200

Unavailable

12

GEAR, 4TH DRIVEN | NT:19

24340-28200

Unavailable

13

GEAR, REDUCTION | NT:22

24611-28200

Unavailable

14

STEEL BALL

06111-10003

$1.78

15

OIL SEAL, REDUCTION SHIFT ROD

09289-09001

Unavailable

16

LOCK WASHER This part replaces 08323-21068.

08323-31068

Unavailable

17

.NUT This part replaces 08311-11068.

08310-00067

$2.13

18

SHIM, CAM CHAIN IDLER,T:1.0 | 15x24x1 This part replaces 08211-15241.

09181-15166

$2.85

19

WASHER | 15x30x1 This part replaces 09160-15016.

08211-15301

$2.45

20

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.19

21

BALL BEARING This part replaces 08110-60060.

08113-60060

$24.18

22

BEARING

08113-60020

$16.01

23

PLUG | A,B

09241-19001

Unavailable

24

BEARING, LH This part replaces 08113-62050.

09262-25003

$24.83

25

BUSHING, DRIVESHAFT | K,L,M,A; TO 09303-15004 This part replaces 09303-15003.

09303-15004

$5.07

25

BUSHING, DRIVESHAFT | B

09303-15004

$5.07

26

OIL SEAL, DRIVESHAFT

09283-30005

Unavailable

27

WASHER | 15x30x1 This part replaces 09160-15016.

08211-15301

$2.45

28

RETAINER, COUNTERSHAFT BEARING

24741-28001

Unavailable

29

SCREW | K,L,M,A This part replaces 02112-06108.

02112-06107

$1.49

29

SCREW | B This part replaces 02112-06128.

02112-06127

$1.84

30

NO DESCRIPTION AVAILABLE | NT:29 This part replaces 26260-28002.

26260-28003

Unavailable

31

GEAR, KICK STRT | K,L; SEE NOTE #1 TO 26281-36 This part replaces 26280-23000.

26280-23010

Unavailable

32

GEAR, KICK DRIVEN | M; NT:31

26281-36100

Unavailable

32

GEAR, KICK DRIVEN | A,B; NT:31

26281-36200

$71.33

33

BEARING | M,A,B

09263-19006

$27.08

34

BEARING

09263-21006

$15.48

35

WASHER, DRIVEN GEAR BEARING | 21x30x0.8

09160-21007

$2.92

36

SPROCKET, ENGINE | NT:12

27511-28200

Unavailable

37

SPACER, ENGINE SPROCKET | 25x30x12.4

09180-25037

Unavailable

38

NUT, PIVOT RH This part replaces 09140-24004.

09140-24007

$3.89

39

WASHER, ENGINE SPROCKET

09167-25007

Unavailable

40

O RING, DRIVESHAFT BEARING

09280-25001

$1.56

41

CHAIN,DRIVE ASS | #520x92L; Includes Item(s) 42 This part replaces 27600-36600.

27600-46K00-116

$167.95

42

JOINT (RK) This part replaces 27620-20210.

27620-40220

$11.07
