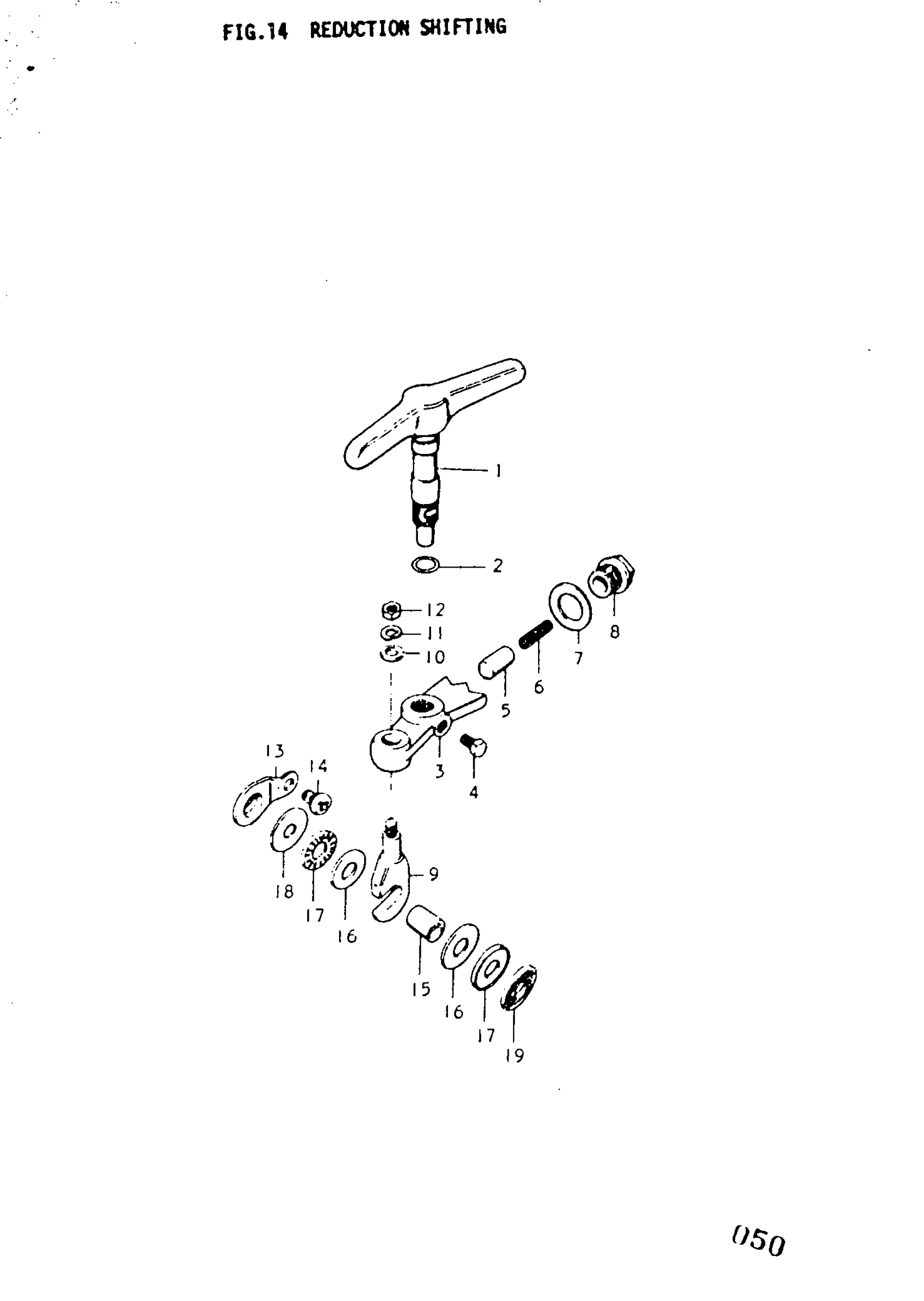

Suzuki TC125 (1977) REDUCTION SHIFTING Diagram

#

Description
Price

1

LEVER, REDUCTION SHIFTING | K,L,M,A

25820-07400

Unavailable

1

LEVER, REDUCTION SHIFTING | B; BLACK

25820-28200

Unavailable

2

O RING, SHIFTING SHAFT

09280-10001

$2.02

3

SHIFTING ARM, REDUCTION

25812-25132

Unavailable

4

BOLT | K,L,M,A This part replaces 01111-05088.

01112-05088

Unavailable

4

BOLT | B This part replaces 01112-05108.

01500-0510B

$1.80

5

STOPPER, SHIFTING ARM | K,L; TO 25351-25101

25351-25100

Unavailable

5

STOPPER, SHIFTING ARM | M,A,B

25351-25101

Unavailable

6

SPRING, SHIFTING ARM

09440-08009

Unavailable

7

WASHER | 16.2x22x1 This part replaces 09160-16015.

09160-16043

$2.12

8

HOLDER, SHIFTING ARM STOPPER

25352-25100

Unavailable

9

PIN, SHIFTING ARM

25811-07401

Unavailable

10

WASHER This part replaces 08322-21058.

08322-01057

$2.13

11

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

12

NUT This part replaces 08311-11058.

08310-00057

$1.84

13

DUST SEAL, REDUCTION ROD

25830-07440

Unavailable

14

SCREW This part replaces 02111-06087.

02112-06087

$1.49

15

SPACER | 6x12.2x2

09180-06017

$9.80

16

WASHER | 10.1x21.44x0.8 This part replaces 09160-10021.

09160-10121

$2.03

17

BEARING

09263-10002

$10.19

18

THRUST WASHER | 6x22x2

08211-06223

$2.30

19

WASHER | 6.5x13x1

09160-06033

Unavailable
