1977 Suzuki TC125 Rear Wheel Diagram

← All diagrams

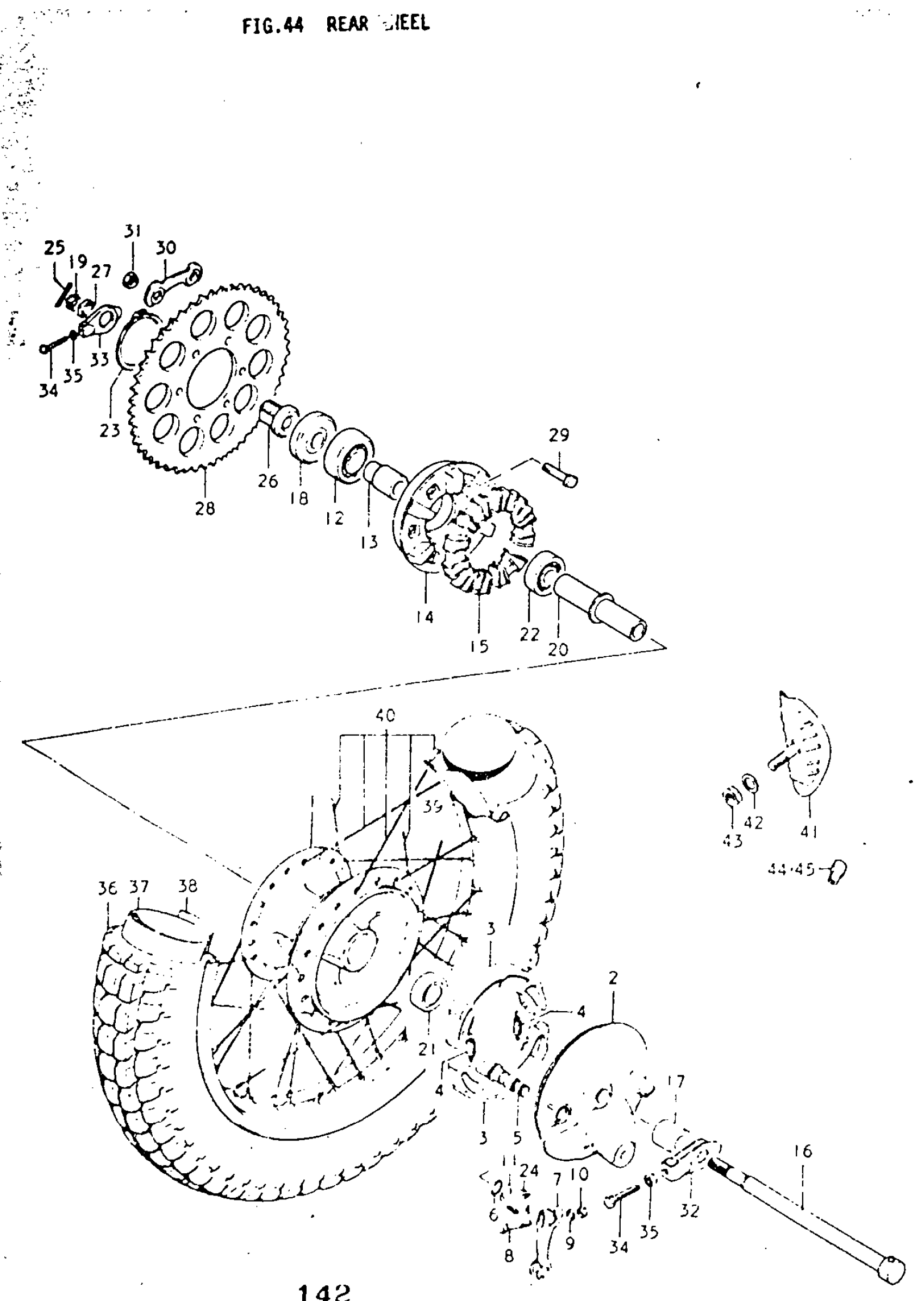

Find the part on the Rear Wheel diagram for your 1977 Suzuki TC125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki TC125 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL | K,L,M

64110-28002

1
Out of stock

1

HUB, REAR WHEEL | A

64110-28400

1
Out of stock

1

HUB, REAR WHEEL | B; BLACK

64110-28610

1
Out of stock

2

PANEL, HUB | K,L,M; FROM 64210-25500 TO 64210-28004 This part replaces 64210-28003.

64210-28004

1
Out of stock

2

PANEL, HUB | A

64210-28004

1
Out of stock

2

PANEL, HUB | B; BLACK This part replaces 64210-28305.

64210-28004

1
Out of stock

3

SHOE SET, BRAKE | K,L; TO 54410-07002 This part replaces 54410-07001.

54401-07810

2
Out of stock

3

SHOE SET, BRAKE | M,A,B This part replaces 54410-07002.

54401-07810

2
Out of stock

4

SPRING This part replaces 09443-07001.

09443-07025

2
Out of stock

5

CAM, BRAKE | K; TO 54441-28001

54441-20000

—
Out of stock

5

CAM, BRAKE | L

54441-07001

—
Out of stock

5

CAM, BRAKE | M,A,B

54441-01002

1
Out of stock

6

DUST SEAL

09280-12001

1

$3.25

In stock

7

LEVER, BRAKE CAM | K,L,M

64451-28000

1
Out of stock

7

LEVER, BRAKE CAM | A,B

64451-28600

1
Out of stock

8

BOLT, ADJUSTER This part replaces 09100-06050.

09100-06150

1
Out of stock

9

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

10

.NUT This part replaces 08311-11068.

08310-00067

1
Out of stock

11

WASHER

09160-12011

1
Out of stock

12

BEARING | A,B This part replaces 08123-62040.

08123-6204B

1
Out of stock

13

RETAINER, DRUM | A,B

64733-28400

1
Out of stock

14

DRUM, SPROCKET MOUNTING | K,L,M

64610-28001

1
Out of stock

14

DRUM, SPROCKET MOUNTING | A

64611-28400

1
Out of stock

14

DRUM, SPROCKET MOUNTING | B

64611-28600

1
Out of stock

15

ASBORBER, HUB DRUM | K,L; TO 64650-28002 This part replaces 64650-28001.

64650-28002

6
Out of stock

15

ABSORBER, HUB DRUM | M

64650-28002

6
Out of stock

15

ABSORBER, HUB DRUM | A,B

64650-28400

6
Out of stock

16

AXLE, REAR | K; TO 64711-28001

64711-28000

—
Out of stock

16

NO DESCRIPTION AVAILABLE | L,M,A,B This part replaces 64711-28001.

64711-4130V

1
Out of stock

17

SPACER, RH | K,L,M; TO 09180-15038 This part replaces 09180-15010.

09180-15038

1
Out of stock

17

SPACER, REAR AXLE RH | A,B

09180-15038

1
Out of stock

18

SPACER, REAR AXLE LH | K,L,M

64750-28000

1
Out of stock

18

SPACER, REAR AXLE LH | A,B

64750-28400

1
Out of stock

19

NUT This part replaces 08314-31128.

08314-3112A

1
Out of stock

20

SPACER, BEARING | K,L,M; FROM 64730-38000

64730-28000

—
Out of stock

20

SPACER, BEARING | A,B

09180-15039

1
Out of stock

21

BEARING, LH | K,L,MA,B This part replaces 08143-62020.

08143-62027

1
Out of stock

22

BEARING | K,L,M This part replaces 08123-63020.

08123-6302B

1
Out of stock

23

CIRCLIP | K,L,M This part replaces 08331-11558.

08331-31559

1
Out of stock

24

SPRING, CAM LEVER

09448-27003

1
Out of stock

25

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

26

SPACER, CHAIN ADJUSTER | L,M,A,B; L:27

64791-28001

1
Out of stock

26

SPACER, CHAIN ADJUSTER | K; L:25

64791-28000

1
Out of stock

27

NUT | K,L,M,A This part replaces 09140-18001.

09140-18501

1
Out of stock

27

NUT | B This part replaces 09140-18005.

09140-18501

1
Out of stock

28

SPROCKET, REAR | NT:37

64511-29720

1
Out of stock

29

BOLT, SPROCKET | K,L

09105-08001

6
Out of stock

29

BOLT, SPROCKET | M

09105-08006

6
Out of stock

29

BOLT, SPROCKET | A,B

09105-08007

6
Out of stock

30

WASHER, REAR SPROCKET

09169-08013

3
Out of stock

31

6

$1.93

In stock

32

ADJUSTER,CHAIN, | L,M,A,B; 8SCREW This part replaces 61410-28002.

61410-28005

1
Out of stock

32

ADJUSTER, CHAIN RH | K; 6SCREW

61410-28001

1
Out of stock

33

LH CHAIN ADJUST | L,M,A,B; 8SCREW This part replaces 61420-28002.

61420-28004

1
Out of stock

33

ADJUSTER, CHAIN LH | K; 6SCREW

61420-28001

1
Out of stock

34

BOLT | L,M,A,B; 8x40 This part replaces 09100-08099.

09100-08146

2
Out of stock

34

BOLT, CHAIN ADJUSTER | K; 6x37

09100-06065

2
Out of stock

35

2

$1.93

In stock

35

.NUT | K This part replaces 08311-11068.

08310-00067

2
Out of stock

36

NO DESCRIPTION AVAILABLE | K; 3.25-18 KNOBBY This part replaces 65100-28211.

65100-28600

1
Out of stock

36

TIRE, REAR | L,M,A,B; 3.25-18

65100-28610

1
Out of stock

37

TUBE ASSY, WHEEL INNER | 3.25-18 This part replaces 65200-18010.

65200-44AA0

1
Out of stock

38

IN TUBE PROTECT | K This part replaces 55261-11010.

55261-26F10

1
Out of stock

38

PROTECTOR, INNER TUBE | L,M,A

65261-28030

1
Out of stock

38

IN TUBE PROTECT | B This part replaces 65261-11010.

55261-26F10

1
Out of stock

39

RIM, REAR WHEEL | K,L; BOLD-TIPPED TYPE

65311-29601

1
Out of stock

39

RIM, REAR WHEEL | L; STRAIGHT TYPE

65311-29602

1
Out of stock

39

RIM, REAR WHEEL | M,A,B

65311-29022

1
Out of stock

40

SPOKE SET, REAR | K,L; BOLD-TIPPED TYPE

65300-28807

1
Out of stock

41

STOPPER, BEAD | K,L

65270-28600

1
Out of stock

42

WASHER | K,L This part replaces 08322-11088.

08322-01087

1
Out of stock

43

1

$1.93

In stock

44

BALANCER WHEEL (30G) | K,L; 30G BOLD-TIPPED TYPE This part replaces 55412-11000.

55413-41F00

1
Out of stock

44

BALANCER, WHEEL | L; 30G

55412-37000

—
Out of stock

45

BALANCER, WHEEL | K,L; 50G BOLD-TIPPED TYPE

55411-28000

—
Out of stock

45

BALANCER, WHEEL | L; 50G STRAIGHT TYPE

55411-30000

1
Out of stock
