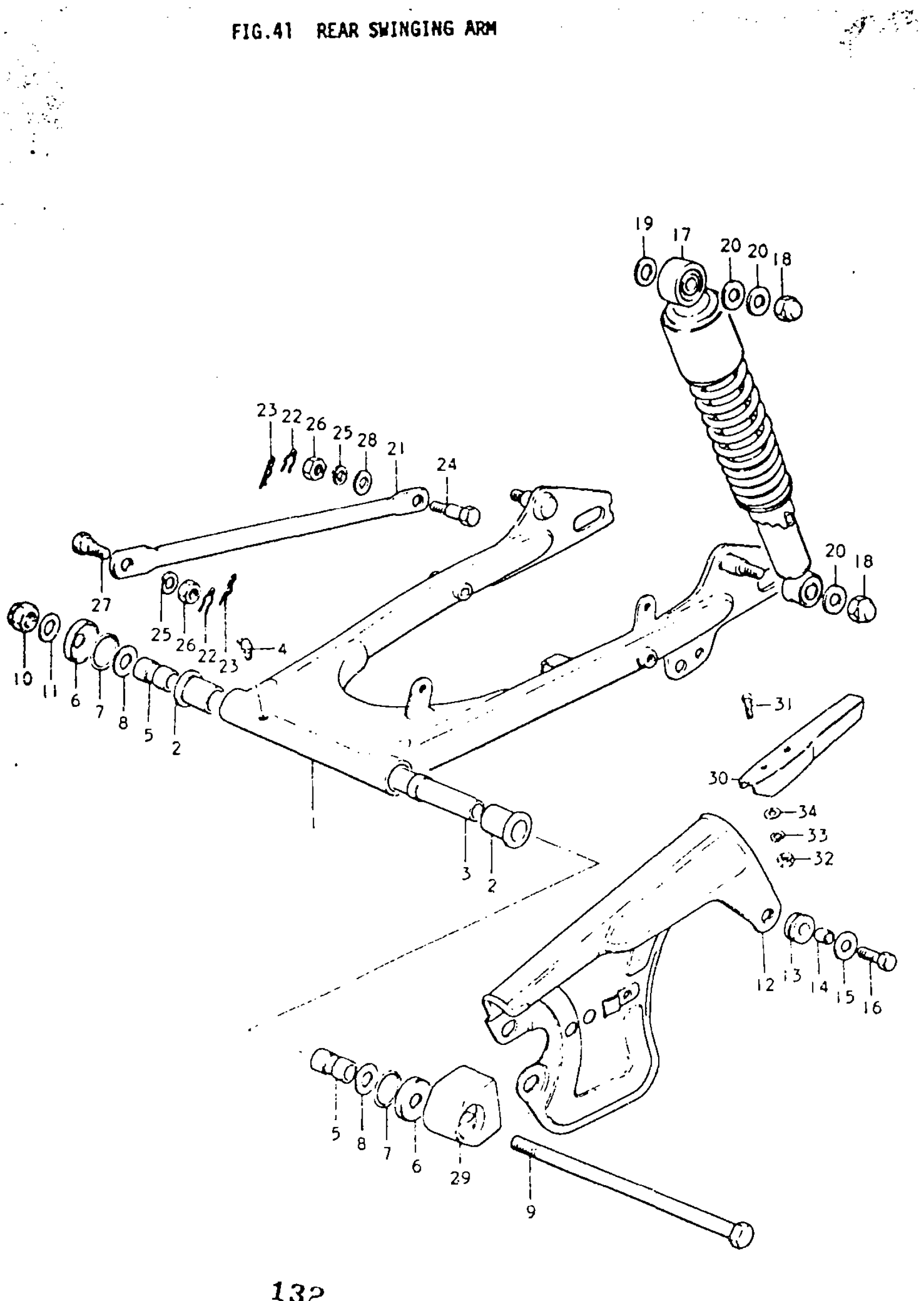

Suzuki TC125 (1977) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM, REAR | K; FROM 61100-28805-019 TO 61100-288441-019

61100-28840-019

Unavailable

1

SWINGING ARM, REAR | L; TO 61100-28860-019

61100-28841-019

Unavailable

1

SWINGING ARM, REAR | M,A,B; Includes Item(s) 2 - 4

61100-28860-019

Unavailable

2

BUSHING | TO 09307-18002 This part replaces 09307-18001.

09307-18002

$10.21

2

BUSHING, SWINGING ARM | B

09307-18002

$10.21

3

SPACER, CENTER

61280-28000

Unavailable

4

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.45

5

SPACER, SWINGING ARM

61251-28000

$13.36

6

COVER, DUST SEAL

61262-09200

$3.59

7

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

$1.55

8

THRUST WASHER

09160-12005

$2.38

9

SHAFT, PIVOT | K,L,M,A; FROM 61211-28600 This part replaces 61211-28001.

61211-28002

Unavailable

9

SHAFT, PIVOT | A,B; F. NO. 57321~

61211-28002

Unavailable

10

NUT, PIVOT | FROM 09159-12101

09159-12102

$3.23

11

WASHER This part replaces 08322-11128.

08322-01127

$1.84

12

CASE, CHAIN | K,L

61310-28100

Unavailable

12

CASE, CHAIN | M This part replaces 61310-28000-126.

61310-28000-019

Unavailable

12

CASE, CHAIN | A,B

61310-28000-019

Unavailable

13

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

14

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.48

15

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

16

BOLT This part replaces 01112-06128.

01500-06127

$1.97

17

SHOCK ABSORBER ASSY, REAR | K

62100-28600

Unavailable

17

SHOCK ABSORBER ASSY, REAR | L This part replaces 62100-28601.

62100-28602

Unavailable

17

SHOCK ABSORBER ASSY, REAR | M,A,B

62100-28602

Unavailable

18

NUT This part replaces 08313-11107.

08313-10107

$2.50

19

WASHER This part replaces 08322-11128.

08322-01127

$1.84

20

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

21

TORQUE LINK REA This part replaces 64311-28000.

64311-28000-019

$18.80

22

CLIP, TORQUE LINK | K

09384-06001

$1.49

23

CLIP | L,M,A,B This part replaces 09385-10001.

09385-10005

$1.56

24

BOLT, REAR BRAKE PEDAL

09111-08013

$3.04

25

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

26

NUT, TORQUE LINK

09140-08008

$1.49

27

BOLT, TORQUE LINK FRONT

09111-08015

$3.16

28

WASHER | A,B This part replaces 08322-11088.

08322-01087

$2.13

29

BUFFER,CHAIN TO | K,L,M This part replaces 61273-28000.

61273-28002

$11.02

29

BUFFER,CHAIN TO | A,B; FROM 61273-28000 This part replaces 61273-28001.

61273-28002

$11.02

30

CASE END, CHAIN | OPT

61331-30000

Unavailable

31

BOLT | OPT This part replaces 01112-06108.

01500-06107

$2.06

32

.NUT | OPT This part replaces 08311-11068.

08310-00067

$2.13

33

LOCK WASHER | OPT This part replaces 08321-21068.

08321-01067

$2.13

34

WASHER | OPT This part replaces 08322-21068.

08322-01067

$2.13
