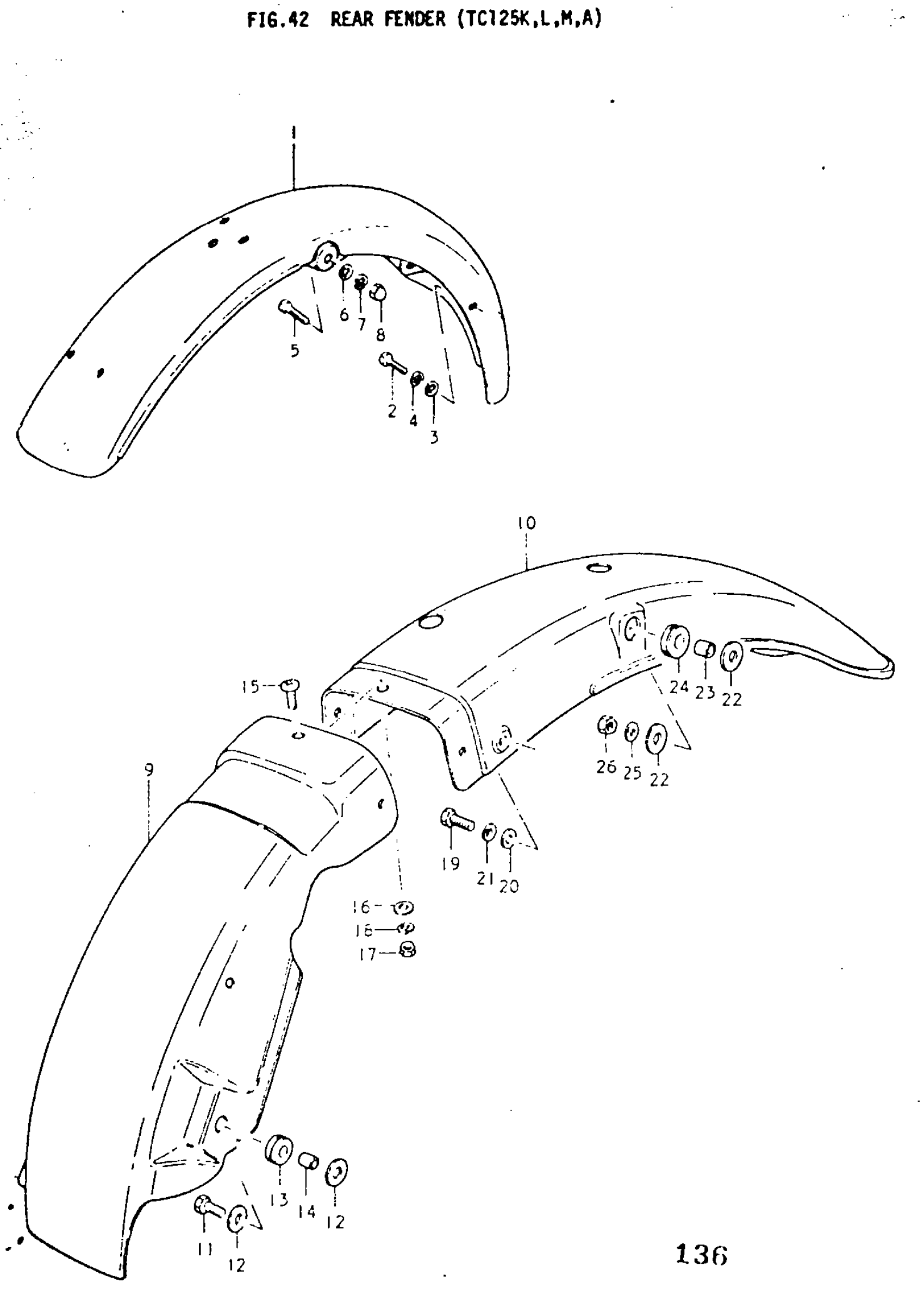

Suzuki TC125 (1977) REAR FENDER (TC125K Diagram

#

Description
Price

1

FENDER, REAR | K

63110-28100

Unavailable

2

BOLT (8X16) | K This part replaces 09100-08085.

09100-08284

$3.87

3

WASHER | K This part replaces 08322-21088.

08322-01087

$2.13

4

.LOCK WASHER | K This part replaces 08321-21088.

08321-01087

$2.13

5

BOLT (8X16) | K This part replaces 09100-08085.

09100-08284

$3.87

6

WASHER | K This part replaces 08322-21088.

08322-01087

$2.13

7

.LOCK WASHER | K This part replaces 08321-21088.

08321-01087

$2.13

8

NUT | K This part replaces 08313-11087.

08313-10087

$2.28

9

BODY, REAR FENDER FRONT | L; TO 63110-28600

63112-28000

Unavailable

9

BODY, REAR FENDER FRONT | M,A; TO 63112-28001 This part replaces 63110-28600.

63112-28002

Unavailable

10

FENDER, REAR | L,M; FROM 63110-28500

63110-28502

Unavailable

10

FENDER, REAR | A; FROM 63110-28400-737

63110-28401-737

Unavailable

11

BOLT, CANISTER | L,M,A This part replaces 01112-06168.

01500-06167

$1.97

12

WASHER (6.5X20X1.2) | L,M,A; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

13

CUSHION (8.5X20X8) | L,M,A This part replaces 09320-08007.

09320-08510

$1.97

14

SPACER | L,M,A; 6.1x9x7.5

09180-06038

$1.98

15

SCREW | L,M,A This part replaces 02141-05127.

02142-05127

$1.97

16

WASHER | L,M,A This part replaces 08322-11058.

08322-01057

$2.13

17

NUT | L,M,A This part replaces 08311-11058.

08310-00057

$1.84

18

LOCK WASHER | L,M,A This part replaces 08321-21058.

08321-0105A

$1.84

19

BOLT | L,M,A This part replaces 01112-06128.

01500-06127

$1.97

20

WASHER | L,M,A This part replaces 08322-21068.

08322-01067

$2.13

21

LOCK WASHER | L,M,A This part replaces 08321-21068.

08321-01067

$2.13

22

WASHER | L,M,A; 10.3x25x1.5

09160-10041

Unavailable

23

SPACER | L,M,A

09180-10026

Unavailable

24

FENDER SIDE CUS | L,M,A This part replaces 09320-12011.

09320-12090

$1.91

25

LOCK WASHER | L,M,A This part replaces 08321-21108.

08321-01107

$1.84

26

NUT | L,M,A This part replaces 08312-32108.

08310-00107

$2.19
