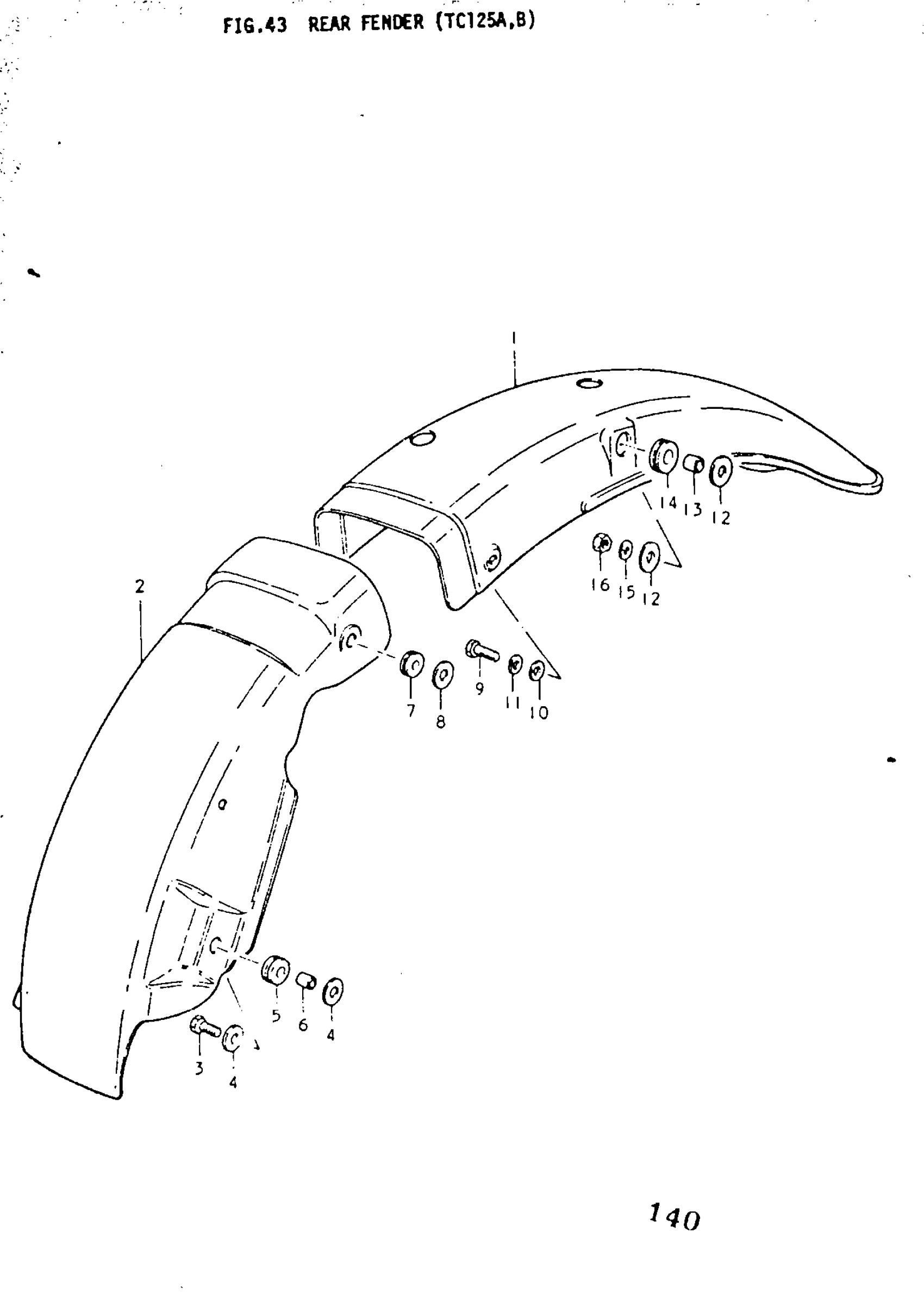

Suzuki TC125 (1977) REAR FENDER (TC125A Diagram

#

Description
Price

1

FENDER, REAR | A

63110-28401-737

Unavailable

1

NO DESCRIPTION AVAILABLE | B; FROM 63110-28401-737 This part replaces 63110-28402-737.

63110-28402-13L

Unavailable

2

BODY, REAR FENDER FRONT | A; TO 63112-28002 This part replaces 63112-28001.

63112-28002

Unavailable

2

BODY, REAR FENDER FRONT | B

63112-28002

Unavailable

3

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

4

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

5

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

6

SPACER | 6.1x9x7.5

09180-06038

$1.98

7

CUSHION This part replaces 09320-05006.

09320-06504

$4.96

8

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

9

BOLT This part replaces 01112-06128.

01500-06127

$1.97

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

WASHER | 10.3x25x1.5

09160-10041

Unavailable

13

SPACER | 10.1x13x7

09180-10026

Unavailable

14

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

15

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

16

NUT This part replaces 08312-32108.

08310-00107

$2.19
