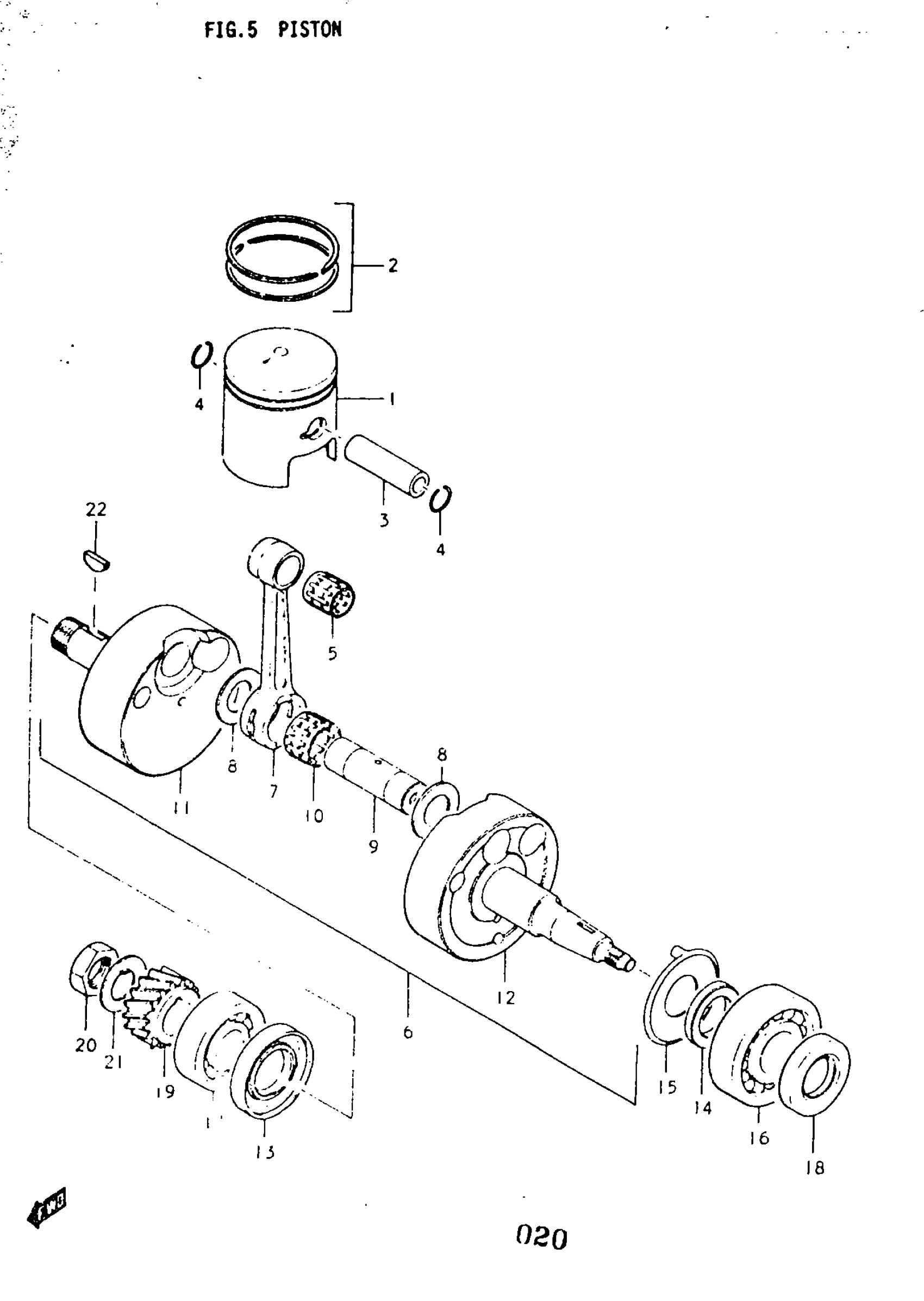

Suzuki TC125 (1977) PISTON Diagram

#

Description
Price

1

PISTON STD | K,L,M; TO 12110-28002 This part replaces 12110-28000.

12110-48001

$54.28

1

PISTON STD | A; TO 12110-28003 This part replaces 12110-28002.

12110-48001

$54.28

1

PISTON STD | B This part replaces 12110-28003.

12110-48001

$54.28

1

PISTON SET,OS:. | K,L,M; OS:0.5 TO 12110-28713 TO 121K,L,M; OS:0.5 TO 12110-28713 TO 121 This part replaces 12110-28710.

12100-48000-050

$105.88

1

PISTON | A; OS:0.5 TO 12110-28713

12110-28712

Unavailable

1

PISTON SET,OS:. | B; OS:0.5 TO 12110-28713 This part replaces 12110-28713.

12100-48000-050

$105.88

1

PISTON SET,OS:1 | K,L,M; OS:1.0 TO 12110-28723 TO 121K,L,M; OS:1.0 TO 12110-28723 TO 121 This part replaces 12110-28720.

12100-48000-100

$105.27

1

PISTON | A; OS:1.0 TO 12110-28723

12110-28722

Unavailable

1

PISTON SET,OS:1 | A; OS:1.0 TO 12110-28723 This part replaces 12110-28723.

12100-48000-100

$105.27

2

RING SET, PISTO This part replaces 12140-28010.

12140-28021

$38.70

2

RING SET PISTON | OS:0.5 This part replaces 12140-28710.

12140-28011-050

$38.70

2

RING SET PISTON | OS:1.0 This part replaces 12140-28720.

12140-28011-100

$40.17

3

PIN This part replaces 12151-28000.

12151-05200

$12.50

4

RING | K,L,M,A

09381-14001

$1.49

5

ROLLR BRG,14X18 | K,L,M,A; FROM 09263-14004 This part replaces 09263-14007.

09263-14022

$11.97

5

ROLLR BRG,14X18 | B This part replaces 09263-14006.

09263-14022

$11.97

6

CRANKSHAFT SET | K,L; TO 12200-28300

12200-28830

Unavailable

6

CRANKSHAFT ASSY | M,A; FROM 12200-28300 TO 12200-28302

12200-28301

Unavailable

6

CRANKSHAFT ASSY | B; Includes Item(s) 7 - 12

12200-28302

Unavailable

7

CONNECTING ROD This part replaces 12161-12000.

12161-39300

$69.47

8

THRUST WASHER | K,L,B; 19x32x1

09160-19001

$3.27

8

THRUST WASHER | M,A; TO 09160-19001 This part replaces 09160-19002.

09160-19001

$3.27

9

PIN, CRANK

12211-28000

Unavailable

10

BEARING | K,L; TO 09263-19007 This part replaces 09263-19003.

09263-19009

$16.75

10

BEARING | M,A,B This part replaces 09263-19007.

09263-19009

$16.75

11

CRANKSHAFT, RH | K,L,M,A

12221-28001

Unavailable

11

NO DESCRIPTION AVAILABLE | B; FROM 12221-28001 This part replaces 12221-28002.

12221-28003

Unavailable

12

NO DESCRIPTION AVAILABLE | K,L,M,A; FROM 12261-28002 TO 12261-41000 This part replaces 12261-28003.

12261-41001

Unavailable

12

NO DESCRIPTION AVAILABLE | B This part replaces 12261-41000.

12261-41001

Unavailable

13

OIL SEAL, CRANK RH | K,L,M,A,B

09283-26007

$7.37

14

SPACER, CRANKSHAFT | K,L,M,A,B; 25x36x4.5

09180-25041

Unavailable

15

PLATE, OIL GUIDE | K,L,M,A,B

12511-28002

Unavailable

16

BEARING, CRANK LH | K,L,M,A,B; FROM 09269-25006

09269-25013

$47.70

17

BEARING, COUNTER SHAFT | K,L,M,A,B This part replaces 09262-20009.

09262-20073

$23.28

18

OIL SEAL, LH | K,L,M,A,B This part replaces 09283-25037.

09283-25066

$7.50

19

NO DESCRIPTION AVAILABLE | K,L,M,A,B; NT:16 This part replaces 21111-28000.

21111-28001

Unavailable

20

NUT, PRIMARY GEAR | K,L,M,A,B

09140-18002

$3.87

21

WASHER | K,L,M,A,B

09166-18001

$2.71

22

KEY | K,L,M,A,B

08341-31059

$2.48
